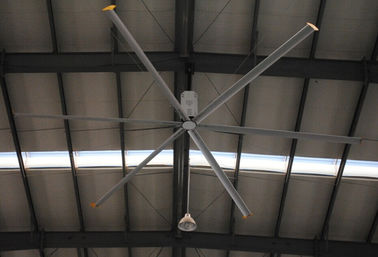

Large Image :  Aerodynamic 6 Blade Bigass Large Industrial Ceiling Fan , 20ft HVLS Electric Ceiling Fan

Product Details:

Place of Origin: China
Brand Name: Genor
Certification: CSA,CE,CCC
Model Number: GFAN
Motor Power: 1.5kw
Product name: HVLS ceiling fan
Air Speed: 2-3m/s
amount of the blade: 6
Blade Material: Aluminium alloy

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wood package
Delivery Time: within 10days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 200 units / month
Contact Now
Detailed Product Description



Aerodynamic 6 Blade Bigass Large Industrial Ceiling Fan , 20ft HVLS Electric Ceiling Fan





1. High Air Volume, Low RotatingSpeed
2. 20ft Four Blades with aerodynamic design
3. Low Cost
4. High Efficienty,Energy Saving



Our super ceiling fan is a new solution of Energy Saving to solve ventilation,
cooling and dehumidification in large indoor place.



It is High Air Volume and Low Rotating Speed
 The traditional fan runs at high speed with high power consumption.it is damaged easily and the air covering space is also small .

But our HVLS super ceiling fan runs at low speed to slowly move a lot of air in large area through unique fan bladesOur HVLS Ceiling fan only have 6 blades.

From the center along the blades, blade's width and thickness gradually are narrowed and thin, in accordance with the modern aerodynamical  science, the whole blades drive more and even airflow downward, no empty zone in center area.

The streamline design of the (windward side)  cross-sectional of the blade decreases the airflow resistance.Spire of the blade tilts up 3 degrees than the root part, conical air flow instead of cylinder one can directly cover a larger area and it makes airflows much more similar to natural intermittent wind.




Mixing the hotter air at roof level with cooler air at floor level to save heating cost in winter.

Our HVLS Super ceiling fans are used in large facilities, warehouses, distribution centers, farms, large retail stores, sports arenas, stations, airports and other large buildings, become a ideal choice for ventilation, cooling and dehumidification of large indoor place.



Advantages

1)High efficient air flow

2)Strengthen the air cycle effectively

3)Low cost and free maintenance

4)Provide cool air flow in summer and hot air cycle in winter

5)Large application area

6)Propeller blades guarantee safety



Environmental Protection

1)Very low enery consumption

2)Provide natural ventilation and lower the temperature effectively

3)Refresh the air continuosly



Specification





Model Diameter Max Speed Covering Spacing Air Volume (CFM) Moter Power Weight
GFAN25 2500mm (8 FT) 129rpm 200m2 40000 1.1kw 70kg
GFAN31 3100mm (10FT) 114rpm 350m2 74000 75kw
GFAN33 3700mm (12FT) 95rpm 500m2 102000 85kg
GFAN43 4300mm (14FT) 83rpm 600m2 114000 110kg
GFAN49 4900mm (16FT) 75rpm 900m2 193000 1.5kw 120kg
GFAN61 6100mm (20FT) 67rpm 1200m2 292000 125kg
GFAN73 7300mm (24FT) 53rpm 1500m2 363000 130kg
