| High Light: | cummins generator set,cummins industrial generator |
||
|---|---|---|---|

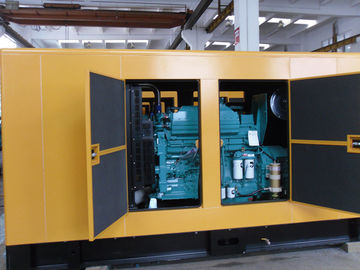

60kw to 500kw silent cummins diesel generator circuit breaker 12 leads auto battery charger
(1)Diesel engine with all accessories,3 filter,electrical systems.
(2)Alternator.
(3)Steel structure.
(4)Fan and water cooling system.
(5)Flange connector.
(6)12v/24vstarting motor and charge engine.
(7)Air cleaner,fuel cleaner,oil cleaner.
(8)On-board control panel.
(9)MCCB air conservation switch.
(10)12v/24v starting accumulator and bettery line.
(11)Set shock absorber.
| Criterion |
| The main parameters of the generator set |
| Technical data | |
| Genset Model | GNRC500 |
| Prime Power | 500KW/625KVA |
| Rated Voltage | 400/230V |
| Frequency | 50/60Hz |
| Power Factor | 0.8(lagging) |
| The regulating rate of steady voltage | ≤±0.5% |
| The regulating rate of instantaneous voltage | ≤-15%/ +20% |
| The time of steady voltage | ≤1.5sec |
| The waving rate of voltage | ≤1.0% |
| The regulating rate of steady frequency | ≤3% |
| The regulating rate of instantaneous frequency | ≤±10% |
| The time of steady frequency | 3sec |
| Dimension (L×W×H) (mm) | 3500*1500*2000 |
| Genset weight (kg) | 4200 |
| Diesel Engine | |
| Brand | |
| Model | KTA19-G8 |
| Number of Cylinders | 6 |
| Rotating Speed | 1500/18000RPM |
| Cycle | Four stroke |
| Type | waste gas turbine boost,direct spurting type |
| Bore×Stroke(mm) | 159*159 |
| Displacement(L) | 19 |
| Lubricating Capacity(L) | 50 |
| Speed Governor | Electrical |
| Cooling System | Water-cooled |
| Speed Stability (%) | ≤5% |
| Fuel Consumption at 100% Load | 206g/kw.h |
| Starting Method | DC24V Electrical starting |
| Alternator | |
| Brand | Stamford |
| Model | HCI444E |
| Number of Phase | 3 |
| Connecting Type | Three Phase and Four Lines |
| Number of Bearing | 1 |
| Grading Protection | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless (AVR automatic voltage regulating) |
| Insulation Class | H degree |
| The components of the genset | |
| (1) Diesel Engine; (2)Stamford Alternator; (3) Control Panel | |
| Control Panel | |
| The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. | |
Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown

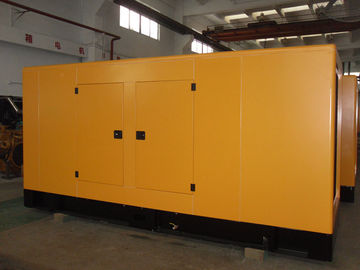

Soundproof canopy:
1)With steel sheet
2)Stainless steel locks
3)Control panel viewing window for monitoring the status of the generator set
4)Good ventilation system and anti-heat radiation construction
5)Effective anti-vibration devices to ensure the generator set run steadily
6)Super silent materials inside to ensure the noise lower than 70 dB 7 meters away
7)Emergency stop button mounted outside
8)Side lockable door easy for maintenance and installation
9)Lube oil and cooling water drains piped to exterior of the canopy
