Home ProductsCummins Diesel Generator

600 kw cummins power diesel generator 750 kva

I'm Online Chat Now

600 kw cummins power diesel generator 750 kva

China 600 kw cummins power diesel generator 750 kva supplier
600 kw cummins power diesel generator 750 kva supplier 600 kw cummins power diesel generator 750 kva supplier

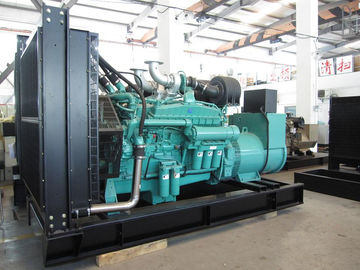

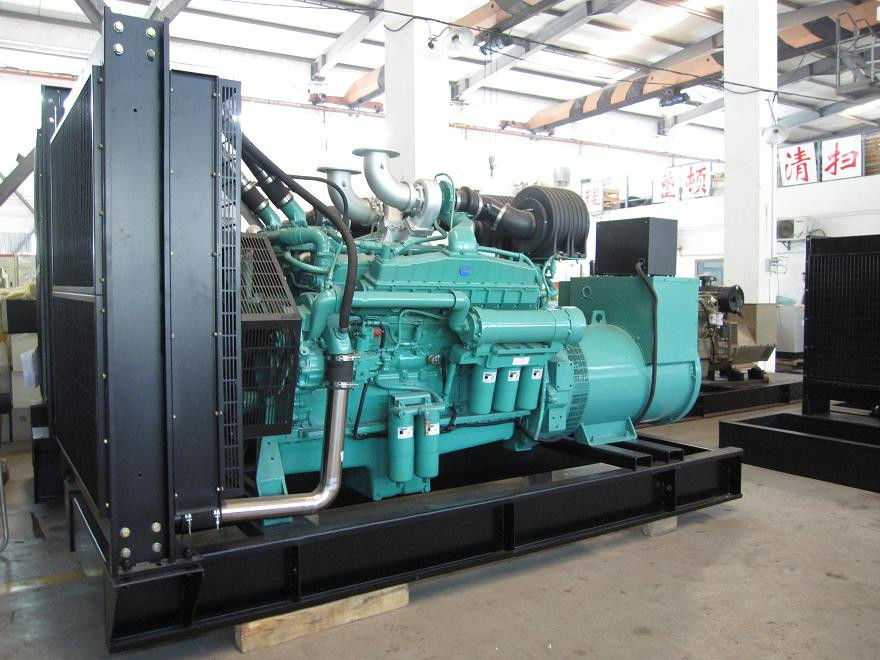

Large Image :  600 kw cummins power diesel generator 750 kva

Product Details:

Place of Origin: China
Brand Name: Cummins
Certification: ISO9001:2008, CE
Model Number: GNRC
Engine: Cummins
Alternator: Stamford, Leroy somer ,Marathon,Engga
Control Panel: Smartgen, Deepsea,ComAp
Rated Power: 20kw to 1600kw
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz
Rated Voltage: 120V/208V,220V/380V, 240V/415V
Product Name: generator 750 kva

Payment & Shipping Terms:

Price: Negotiable
Contact Now
Detailed Product Description

600 kw cummins power diesel generator 750 kva

Our company is an approved Cummins OEM partner.So we can provide genuine Cummins genset with very competitive price and comprehensiv Super Silent Diesel Generator With Ats e technical support.

cummins .jpg

Model

GNRC600

Normal Power

600kW/750kVA

Standby Power

660kW/825kVA

Frequency

50Hz/1500rpm

Power Factor

0.8(lagging)

Voltage

230V/400V

Current

1080/1188A

Connecting type

Three Phase Four Wire

Engine

Manufacturer

Chongqing Cummins Co., Ltd

Model

KTA38-G2

Type

4 stroke,

Cylinder

12V

Displacement -L

37.8L

Intake Method

Turbocharged & Intercooling

Bore /Stroke mm

159/159

Compression Ratio

14.5:1

Rated Speed

1500rpm

Idling-r/min

725-775

Normal Output Power-kW

664

Standby Output Power-kW(BHP)

731

Piston Speed-m/s(ft/min)

7.9

Friction Power-kW

86

Fuel System Mode

Cummins PT Direct Injection System

Speed Regulation Mode

ElectricalSpeed

Engine Weight(dry-typeAir cooling) kg

3723

Inlet Flow-L/s

850

Exhaust Temperature-°C

541

Gas Quantity (m³/min)

45

Exhaust Air Rate (m³/min)

648

Fuel Consumption(g/kw.h)(L/h)

206

Diesel Grade

0# light diesel

Oil consumption(g/kw.h)

≤1

Oil Pressure-Low Idle Speed kPa(PSI)

138

Oil Pressure-Rated Speed kPa(PSI)

345-483

Max. Oil Temperature—°C(°F)

121(250)

Lubricating Oil Grade

15W/40

Lubricating Oil Capacity (L)

135

Cooling Fluid Capacity(L)

118

Fuel Consumption

Standby Power

Prime Power

Continuous Power

kW

HP

kW

HP

kW

HP

731

980

664

890

----

----

Operating Mode

Power

Fuel Consumption

HP

kW

Kg/h

L/h

Standby110%

980

731

154.6

184

Prime100%

890

664

140.3

167

75%

668

498

107.5

128

50%

445

332

75.6

90

25%

222

166

44.5

53

10%

88.8

66.4

17.8

21.2

DigitalControl system:

1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C

600 kw cummins power diesel generator 750 kva

Standard configuration supply scope:

(1)Diesel engine with all accessories,3 filter,electrical systems.
(2)Alternator.

(3)Steel structure.
(4)Fan and water cooling system.
(5)Flange connector.
(6)12v/24vstarting motor and charge engine.
(7)Air cleaner,fuel cleaner,oil cleaner.
(8)On-board control panel.
(9)MCCB air conservation switch.
(10)12v/24v starting accumulator and bettery line.
(11)Set shock absorber.

Optional accessories:

1. Engine coolant and oil heater, alternator space heater, cooling for heat exchanger communication interface,

2. Battery charger by main supply

3. Fuel-water seperators

4. ATS & paralleling system

5. Soundproof canopy and moving trailer.

Security and safety:
1) Control panel viewing window in a lockable access door
2) Emergency shut down for low oil pressure and high water temperature,Emergency stop push button (red) mounted on enclosure exterior
3) Cooling fan and battery charging alternator fully guarded Fuel fill and battery can only be reached via lockable access doors
4) Exhaust silencing system totally enclosed for operator safety

Warranty

The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours ,whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.

600 kw cummins power diesel generator 750 kva600 kw cummins power diesel generator 750 kva600 kw cummins power diesel generator 750 kva
