38kva cummins diesel engine silent 30kw generator

I'm Online Chat Now

38kva cummins diesel engine silent 30kw generator

38kva cummins diesel engine silent 30kw generator
38kva cummins diesel engine silent 30kw generator

Large Image :  38kva cummins diesel engine silent 30kw generator

Product Details:
Place of Origin: China
Brand Name: Cummins
Certification: ISO9001:2008, CE
Model Number: GNRC
Engine: Cummins
Alternator: Stamford, Leroy somer ,Marathon,Engga
Control Panel: Smartgen, Deepsea,ComAp
Rated Power: 30kw
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz
Rated Voltage: 120V/208V,220V/380V, 240V/415V
Product Name: 30kw generator
Payment & Shipping Terms:
Price: Negotiable
Detailed Product Description
High Light:

cummins generator set

,

cummins industrial generator

38kva cummins diesel engine silent 30kw generator

Our company is an approved Cummins OEM partner.So we can provide genuine Cummins genset with very competitive price and comprehensiv Super Silent Diesel Generator With Ats e technical support.

cummins .jpg

Type

GNRC30

Frequency(50/60HZ)

30KW/38KVA

Standard configuration

Overall description:

  • Cummins Engine and Stamford Alternator
  • Water cooled radiator, the fans driven by belt, with safety shield.
  • 24 V Battery charging Alternator
  • Alternator:Single bearing Alternator,IP23 Grading Protection, H Insulation degree
  • Shock absorber
  • Dry air filter,Fuel filter,Oil filter
  • Power output circuit breaker
  • Smartgen control panel(LCD display)
  • 12 V battery and battery connection cables
  • Exhaust pipe,Corrugated shock tube,flange,Muffler set
  • Maintenance manuals
  • Lubrication System

Sales commitment

The products that we provide are all new, each unit all get through the strict production testing.

12 months or 1000 hours(whichever occurs first) of Warranty Time for all our products. We take the full responsibility only in the fault that created by the quality, the wearing-parts, daily consumables and human error of operating & maintenance are not included in.

Criterion

  • GB/T19001-2008
  • SO9001:2008 Quality Control System

The main parameters of the generator set

Technical data

Genset Model

GNRC30

Prime Power

30 kw

Rated Voltage

400/230V

Frequency

50/60Hz

Power Factor

0.8(lagging)

The regulating rate of steady voltage

≤±0.5%

The regulating rate of instantaneous voltage

≤-15%/ +20%

The time of steady voltage

≤1.5sec

The waving rate of voltage

≤1.0%

The regulating rate of steady frequency

≤3%

The regulating rate of instantaneous frequency

≤±10%

The time of steady frequency

3sec

Dimension (L×W×H) (mm)

1650*720*1200

Genset weight (kg)

700

Diesel Engine

Brand

Cummins

Model

4BT3.9-G2

Number of Cylinders

4

Rotating Speed

1500/18000RPM

Cycle

Four stroke

Type

waste gas turbine boost,direct spurting type

Bore×Stroke(mm)

102*120

Displacement(L)

3.9

Lubricating Capacity(L)

11

Speed Governor

Electrical

Cooling System

Water-cooled

Speed Stability (%)

≤5%

Fuel Consumption at 100% Load

208g/kw.h

Starting Method

DC24V Electrical starting

Alternator

Brand

Stamford

Model

PI144G

Number of Phase

3

Connecting Type

Three Phase and Four Lines

Number of Bearing

1

Grading Protection

IP23

Altitude

≤1000m

Exciter Type

Brushless (AVR automatic voltage regulating)

Insulation Class

H degree

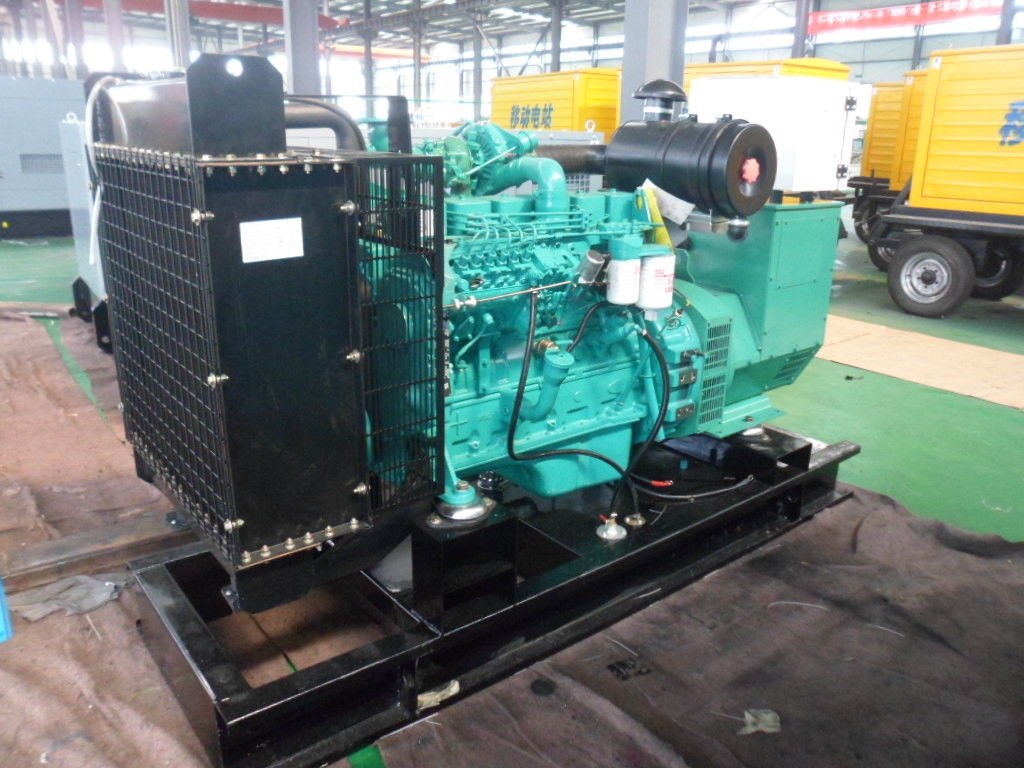

The components of the genset

(1) Cummins Diesel Engine; (2) Stamford Alternator; (3) Control Panel

Control Panel

The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.

Control Panel

1. Key switch (manual type) control panel

Shock resist is fitted between control panel and generator set. Loose sheet is also fitted. The equipments of control panel are Meters with Voltmeter,Ammeter,Frequency list,Water thermometer,Oil pressure gauge,Hour meter.

2. Control parts

Start/stop key switch, start button, emergency stop button, voltage regulation

resistance, speed regulation resistance. Voltage phase switch ,Electric current phase selecting switch.

3. Protection setting for engine

For emergency shut down, overfeed, high water temperature, low oil pressure. ATS switch is optional components when some accidents appear, The digital Protector can shut down immediately, giving the battery voltage alarm and DC electrical source alarm. European extremity, steady wiring, and it can easily dismantle and install.

The above generating set fitted with a base fuel tank for more than 8 hours using

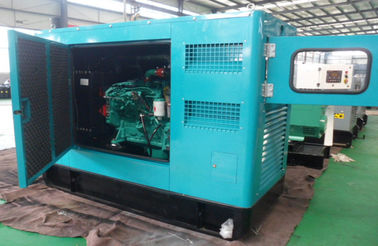

Soundproof canopy:
1)With steel sheet
2)Stainless steel locks
3)Control panel viewing window for monitoring the status of the generator set
4)Good ventilation system and anti-heat radiation construction
5)Effective anti-vibration devices to ensure the generator set run steadily
6)Super silent materials inside to ensure the noise lower than 70 dB 7 meters away
7)Emergency stop button mounted outside
8)Side lockable door easy for maintenance and installation
9)Lube oil and cooling water drains piped to exterior of the canopy

Standard configuration supply scope:

(1)Diesel engine with all accessories,3 filter,electrical systems.
(2)Alternator.

(3)Steel structure.
(4)Fan and water cooling system.
(5)Flange connector.
(6)12v/24vstarting motor and charge engine.
(7)Air cleaner,fuel cleaner,oil cleaner.
(8)On-board control panel.
(9)MCCB air conservation switch.
(10)12v/24v starting accumulator and bettery line.
(11)Set shock absorber.
