Perkins 1506A - E88TAG5 engine 300KVA genset diesel generator power electricity group

I'm Online Chat Now

Perkins 1506A - E88TAG5 engine 300KVA genset diesel generator power electricity group

China Perkins 1506A - E88TAG5 engine 300KVA genset diesel generator power electricity group supplier
Perkins 1506A - E88TAG5 engine 300KVA genset diesel generator power electricity group supplier Perkins 1506A - E88TAG5 engine 300KVA genset diesel generator power electricity group supplier

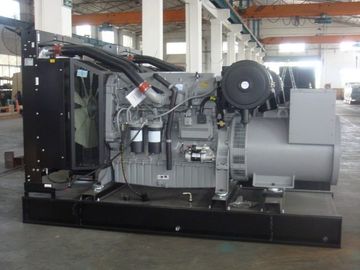

Large Image :  Perkins 1506A - E88TAG5 engine 300KVA genset diesel generator power electricity group

Product Details:

Place of Origin: China
Brand Name: Perkins
Certification: ISO9001:2008, CE
Model Number: GNRP
Product name: 300kva Perkins generator
Engine: Perkins diesel engine
Control Panel: Stamford, Leroy somer ,Marathon
Rated Power: 300kva
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden package
Delivery Time: within 15days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 200 units / month
Contact Now
Detailed Product Description

Perkins 1506A - E88TAG5 engine 300KVA genset diesel generator power electricity group



300kva uk perkins genset diesel generator electric starter 50℃ radiator fuel filter



Genset Features:



1. Genuine UK Perkins industrial diesel engine

2. Radiator 50°C max, fans are driven by belt, with safety guard

3. Genuine stamford. Leroy somer, marathon brushless alternator

4. Choice of manual/auto and AMF control panels and protection systems

5. Digital auto-start panel

6. Anti Vibration Suspension Absorber

7. Dry type air filter, fuel filter, oil filter

8. 10-hour operation base tank

9.Mould case circuit breaker

10. 24V DC start motor and storage battery



Product Description





Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh) (L ) (mm)
GNRP10 7 9 8 10 403A-11G1 ≤252 3 1.131 77*81
GNRP15 10 13 12 15 403A-15G1 ≤264 3 1.496 84*94
GNRP23 16 20 18 23 404A-22G1 ≤243 4 2.216 84*100
GNRP33 24 30 26 33 1103A-33G ≤210 3 3.3 105*127
GNRP50 36 45 40 50 1103A-33TG1 ≤212 3 3.3 105*127
GNRP65 48 60 52 65 1103A-33TG2 ≤211 3 3.3 105*127
GNRP73 52 65 58 73 1104A-44TG1 ≤207 4 4.4 105*127
GNRP88 64 80 70 88 1104A-44TG2 ≤213 4 4.4 105*127
GNRP103 80 100 88 110 1104C-44TAG2 ≤210 6 5.99 100*127
GNRP150 110 138 120 150 1106A-70TG1 ≤205 6 5.99 100*127
GNRP165 120 150 132 165 1106A-70TAG2 ≤205 6 5.99 100*127
GNRP225E 165 206 180 225 1106A-70TAG4 ≤220 6 8.7 117*136
GNRP275E 200 250 220 275 1506A-E88TAG3 ≤223 6 8.7 117*136
GNRP344E 240 300 264 330 1506A-E88TAG5 ≤201 6 14.6 137*165
GNRP388E 280 350 310 388 2206C-E13TAG2 ≤198 6 14.6 137*165
GNRP450E 320 400 360 450 2206C-E13TAG3 ≤201 6 14.6 137*165
GNRP500E 360 450 400 500 2506C-E15TAG1 ≤216 6 15 137*171
GNRP550E 400 500 440 550 2506C-E15TAG2 ≤211 6 15 137*171
GNRP625E 450 563 500 625 2806A-E18TAG1A ≤196 6 18.13 145*183
GNRP700E 508 635 560 700 2806A-E18TAG2 ≤203 6 18.13 145*183
GNRP800 580 725 640 800 4006-23TAG2A ≤199 6 22.921 160*190
GNRP900 640 800 720 900 4006-23TAG3A ≤200 6 22.921 160*190
GNRP1000 720 900 800 1000 4008-TAG1A ≤206 8 30.561 160*190
GNRP1125 818 1022 900 1125 4008-TAG2A ≤208 8 30.561 160*190
GNRP1375 1000 1250 1100 1375 4012-46TWG2A ≤212 12 45.482 160*190



Engine Features:

1. Genuine UK industrial diesel engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily



Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon .

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof





Digital Control panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown







Electric power genset soundproof closed 220kva 275kva 300kva diesel generator with Perkins engine

Perkins 1506A - E88TAG5 engine 300KVA genset diesel generator power electricity group



Perkins 1506A - E88TAG5 engine 300KVA genset diesel generator power electricity group
