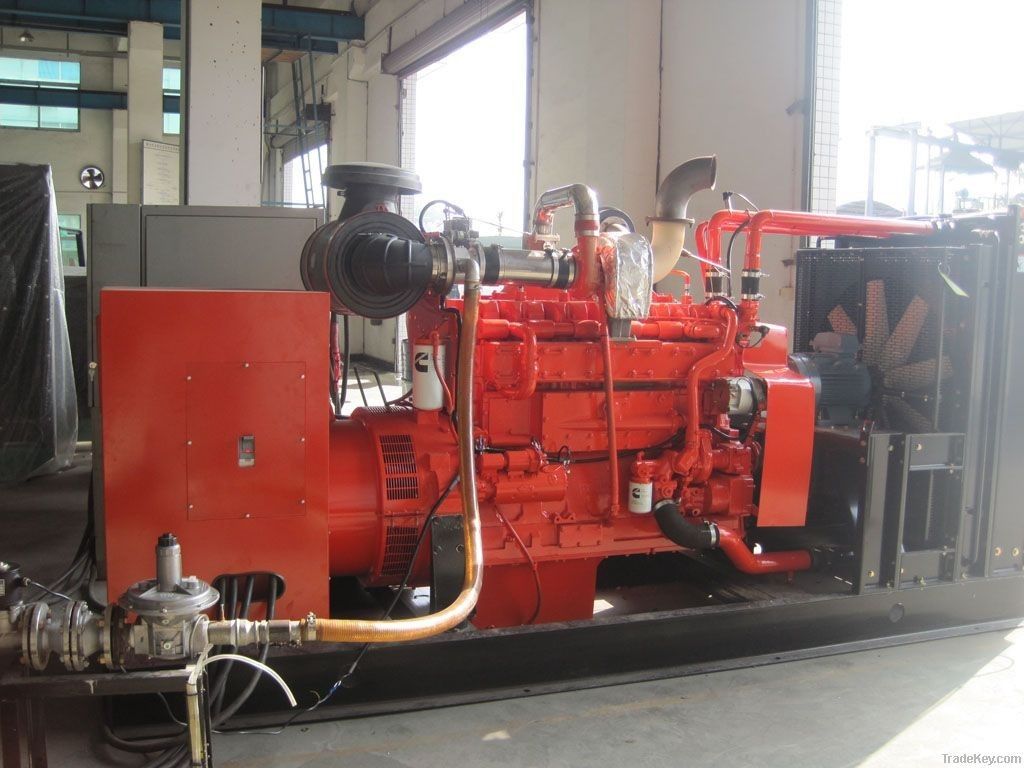

1mw Electric Natural Gas Generator 50Hz 1000KW IP23 With Smartgen Control Panel

I'm Online Chat Now

1mw Electric Natural Gas Generator 50Hz 1000KW IP23 With Smartgen Control Panel

1mw Electric Natural Gas Generator 50Hz 1000KW IP23 With Smartgen Control Panel
1mw Electric Natural Gas Generator 50Hz 1000KW IP23 With Smartgen Control Panel

Large Image :  1mw Electric Natural Gas Generator 50Hz 1000KW IP23 With Smartgen Control Panel

Product Details:
Place of Origin: China
Brand Name: Genor
Certification: ISO9001:2008, CE
Model Number: GNPG
Engine: Gas Engine
Alternator: Stamford, Leroy somer ,Marathon,Engga
Control Panel: Smartgen, Deepsea,ComAp
Rated Power: 1mw
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz
Payment & Shipping Terms:
Price: Negotiable
Detailed Product Description
High Light:

natural gas fired generator

,

biogas generator kit



1mw Electric Natural Gas Generator 50Hz 1000KW IP23 With Smartgen Control Panel





1.prime power:1mw

2.water cooled gas engine with stamfor ac brushless alternator

3.electric start

4.Electronic Air/Gas mixer

5.Altronic ignition system





Specifications:



GENSET WORKING CONDITION:



ACCEPTABLE WORKING CONDITIONS:



Ambient temperature :

 -40°C~+45°C

(antifreeze or hot water needed for below -20°C)



Relative humidity:

<90%(20°C)

Altitude:

≤1000m

NORMAL WORKING CONDITIONS:



Genset can run at rated power on the conditions:



Atmospheric Pressure:

100kPa

 Ambient Temp:

20°C

Relative Humidity

30%.

APPLIED GAS:

Natural Gas, Biogas, Marsh gas, LPG,

Coal-bed Gas

Acceptable gas pipeline pressure:

0.8~450kPa

Engine inlet pressure:

 0.8~5.0kPa (80~500mmH2O)

CH4 content:

for natural gas ≥85%; for biogas≥50%

Sulphur content:

≤400ppm

Gas heat value:

≥5500kcal/Nm3 (23MJ/Nm3 )



Main Performance Advantages:

1. Long life span. gas engine is designed and developed through the cooperation between China Cummins

. Based on Cummins durable engine body, the gas engine life span reaches 30 years.

2. Long designed overhaul term: 25000 ~ 30000 hours.

3. Total cogeneration efficiency is over 85%, higher than other China brands by 10%.

4. Four air valves designing for each cylinder. Sufficient air intaking and exhausting to realize maximum power output.

5. Easy access to spare parts. Based on Cummins engine body, almost 85% parts are made in Cummins factory. it's very convenient to find any parts at any time and anywhere.

6. Electronic Air/Gas mixer. The mixer guarantees optimum air-fuel ratio, improves thermal efficiency, reduces NOx emission. Unique air-fuel ratio adjusting system suits 30% ~ 90% methane density.

7. Ignition system. Altronic ignition system imported from USA ensures high-precision ignition, which enhances genset life span and stability.



Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof



Digital Control panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown



Standard Scope of Supply

1. Brand new Gas engine .

2. Brand new Leroy Somer AC brushless alternator IP23

3. Smartgen Control Panel.

4. Ignition system,including: ECU, Spark plug, High-voltage electricity wire;Ignition switch,Ignition coil;Wires.

5. Electronic speed regulator,including controller and actuator.

6. Solenoid valve

7. Flame arrester.

8. Hand valve

9. Zero pressure valves

10. Mixer.

11. Air filter.

12. Silencer

13. Remote radiator

14. Air circuit breaker (For the protecting purpose of overload, over current, etc)

15. Rubber anti-vibration pad between engine, alternator, control panel and base frame

16.Standard accessories, anti-vibration pad, exhaust pipe, maintenance tools kit, filters

17. Maintenance Operating manual, Quality certificate, Gen-sets ex-factory test report
