Product Details:

Place of Origin: China
Brand Name: GENOR POWER
Certification: ISO9001:2008, CE ,CCC
Model Number: GFT220

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package / Plywood case
Delivery Time: Within 7 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 200/sets per Month
Contact Now
Detailed Product Description
Product Name: Oil Mist Extraction Power: 2.2kw
Filter Type: ESP HEPA Filter Material: Corrosion Protection Shell
Voltage: 220V , 380V, 400V ,415V,480V Frequency: 50Hz Or 60Hz
Application: Cnc Machine Tools Type: Esp Removal

CNC machines cutting oil mist extraction with oil return and low particle emission air filtration



Oil mist extraction also known as oil mist eliminators, efficiently remove oil mist, coolant mist, fume and steam in machine and manufacturing facilities to ensure a clean and safe work environment .

It uses centrifugal separation and high-efficiency filtration technology.

The oil mist is drawn into the unit , it passes through the split cone and many stage filtration devices to filter out stray solid particles . Strong Centrifugal force pushes oil to the unit's outer case where it drains back to the machine for re-use or collection and clean air is returned to the workshop through the top of the unit.

After the oil mist is treated by the system, it is effectively collected and purified, and the collection and purification efficiency is as high as 98% or more.





Advantages of installing oil mist collector


1.The oil mist produced by the machines has adverse effects on the human body's respiratory system and skin health, and will reduce the work efficiency of employees , long-term work in this environment, the probability of occupational disease is high .
2. If oil mist diffuse in the air for a long time , it will lead to failure of the machine's circuit system and control system, increase maintenance costs;
3. The oil mist purifier can recycle the cutting fluid of the machine tool and reduce its loss.



Model GFT500 GFT750 GFT1500 GFT2200
Voltage 50 / 60Hz , 3phase , 120V, 220V, 380V,400V ,415V
Power(kw) 0.5 0.75 1.5 2.2
Air Volume(m3/h) 500 800 1200 1500
Air pressure(pa) 1100 1200 1800 1800
Noise(Db) 58 65 68 68
Capture efficiency 99.97%
Suction diameter(mm) Φ98 Φ123 Φ148 Φ198
Dimensions(L*W*H)mm 650*390*500 710*430*530 860*450*550 910*530*640



How Oil Mist Collector Works



1. Oil mist is removed at source

2. Oil mist is removed from the air by centrifugal impaction

3. Dust ,smoke and fume can be removed

4. Clean oil is returned to machine

5. Clean air is returned to workplace



Esp removal Oil Return Extractor Air Cleaner oil mist filter element





Application :

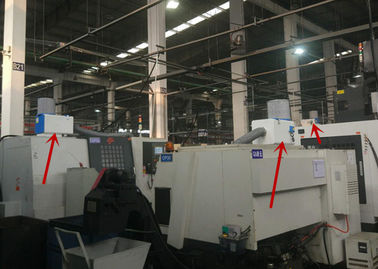

The oil mist purifier is a purification device designed for various types of processing machine tools.

It is widely used in CNC lathes, washing machines, cylindrical grinding machines, internal cylindrical grinding machines, and surface grinding machines. hobbing, milling and edging machine tools, vacuum pumps, spray test chambers, electric discharge machining, CNC machined machining centers and other processing equipment produced in the oil mist, with high purification efficiency, low noise, easy use .







Esp removal Oil Return Extractor Air Cleaner oil mist filter element Esp removal Oil Return Extractor Air Cleaner oil mist filter element







CNC machines cutting oil mist extraction with oil return and low particle emission air filtration
