Electric 300A 250A Diesel Welder Generator Portable Single Cylinder Engine DC Stick TIG

I'm Online Chat Now

Electric 300A 250A Diesel Welder Generator Portable Single Cylinder Engine DC Stick TIG

China Electric 300A 250A Diesel Welder Generator Portable Single Cylinder Engine DC Stick TIG supplier
Electric 300A 250A Diesel Welder Generator Portable Single Cylinder Engine DC Stick TIG supplier Electric 300A 250A Diesel Welder Generator Portable Single Cylinder Engine DC Stick TIG supplier Electric 300A 250A Diesel Welder Generator Portable Single Cylinder Engine DC Stick TIG supplier Electric 300A 250A Diesel Welder Generator Portable Single Cylinder Engine DC Stick TIG supplier

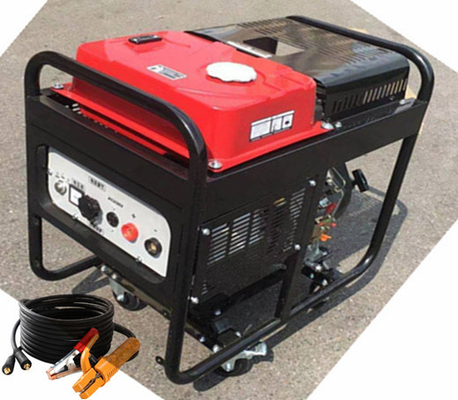

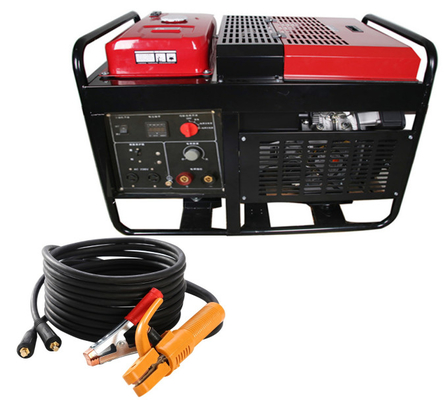

Large Image :  Electric 300A 250A Diesel Welder Generator Portable Single Cylinder Engine DC Stick TIG

Product Details:

Place of Origin: China
Brand Name: Genor Power
Certification: ISO9001:2008, CE, CCC
Model Number: GNAW250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Package / Plywood case
Delivery Time: Within 20 days
Payment Terms: T/T ,L/C ,Western Union, MoneyGram, D/A
Supply Ability: 500/sets per Month
Contact Now
Detailed Product Description
Product Name: Diesel Welding Generator Set Engine Type: 4 Stroke ,Air Cooling Diesel Engine
Welding Current: 20 To 250A Cooling System: Air Cooling
Alternator Type: Rare Earth Permanent Magnet Engine RPM: 1500rpm To 1800rpm
Frequency: 50Hz Or 60Hz Protection Class: IP23
Start System: Electric Start Warranty: 12 Months

Electric 300A 250A Diesel Welding Generator portable single cylinder engine DC stick TIG



Strong output auxiliary power source is suitable for lighting, polishing, etc site operation; Equipped with primary excitation circuit to avoid loss of magnetic excitation



the 250A diesel welder generator is Arc burning steady, good weld-seam shaping, ease of arcing, less spatter, low voice, high efficiency.



-Adopt intermediate frequency three-phase rectifier, has the advantages of smoothcurrent, good dynamic characteristics,fast response speed (1-3ms). It can meet different welding requirements,and is suitable for all kinds of acid electrode, basic electrode and argon arc welding works.



-Adopt rare earth permanent magnet technology, has the advantages of smaller size, lighter weight, low iron loss and higher efficiency(efficiency up to 90%).



- Abandon the IGBT (insulated gate bipolar transistor) control system, substituted by adopting the "embedded" control mode, which greatly improve the reliability of the control system.





GENERATOR



Model GNAW160
Frequency(HZ) 50 60
Rated.AC voltage(V) 230 240
Rated output(KVA) 3 3.6
Rated speed(rpm) 3000 3600



WELDER




Welding no-load voltage(V) 90V
Working voltage(V) 20-28
Range of current(A) 20 - 250
Welding efficiency 60%
Power factor (cosΦ ) 1
Phase 1



ENGINE


Engine type Single-cylinder, vertical, 4-stroke air-cooled diesel engine
Bore× stroke(mm) 92×75
Displacement capacity(cc) 496cc
Fuel 0# or -10# light diesel fuel
Lubrication oil volume(L) 1.65
Combustion system Direct lnjection
STANDARD FEATURES Voltmeter yes
AC Output Socket 2
AC circuit breaker yes
Oil warning light yes
Oil alert yes
