Home ProductsNatural Gas Generator

Electricity LNG CNG 250kw natural gas generator genset power Synchronous grid water cooling

I'm Online Chat Now

Electricity LNG CNG 250kw natural gas generator genset power Synchronous grid water cooling

China Electricity LNG CNG 250kw natural gas generator genset power Synchronous grid water cooling supplier
Electricity LNG CNG 250kw natural gas generator genset power Synchronous grid water cooling supplier Electricity LNG CNG 250kw natural gas generator genset power Synchronous grid water cooling supplier Electricity LNG CNG 250kw natural gas generator genset power Synchronous grid water cooling supplier

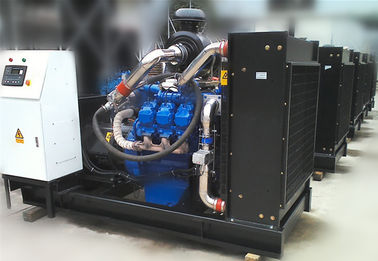

Large Image :  Electricity LNG CNG 250kw natural gas generator genset power Synchronous grid water cooling

Product Details:

Place of Origin: China
Brand Name: Genor Power
Certification: ISO9001:2008, CE ,CCC
Model Number: GNPG250

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package / Plywood case
Delivery Time: Within 15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 200/sets per Month
Contact Now
Detailed Product Description
Product Name: Natual Gas Electric Generator Engine Brand: Heavy Duty Gas Engine
Alternator: Brushless Avr Starting Method: Electric Start
Cooling System: Water Cooled Frequency: 50Hz Or 60Hz
Voltage: 120V ,220V/380V, 240V/415V Protection Class: IP23
Output Power: 300kw

Electricity LNG CNG 250kw natural gas generator genset power Synchronous grid water cooling





1. Brand new Gas engine .

2. Brand new Stamford AC brushless alternator IP23

3. Smartgen Control Panel.

4. Ignition system,including: ECU, Spark plug, High-voltage electricity wire;Ignition switch,Ignition coil;Wires.

5. Electronic speed regulator,including controller and actuator.

6. Solenoid valve

7. Flame arrester.

8. Hand valve

9. Zero pressure valves



Advantage :

1. Long life span. gas engine is designed and developed through thedurable engine body, the gas engine life span reaches 30 years.

2. Long designed overhaul term: 25000 ~ 30000 hours.

3. Total cogeneration efficiency is over 85%, higher than other China brands by 10%.

4. Four air valves designing for each cylinder. Sufficient air intaking and exhausting to realize maximum power output.

5. Electronic Air/Gas mixer. The mixer guarantees optimum air-fuel ratio, improves thermal efficiency, reduces NOx emission. Unique air-fuel ratio adjusting system suits 30% ~ 90% methane density.

6. Ignition system. Altronic ignition system imported from USA ensures high-precision ignition, which enhances genset life span and stability.



Genset Model Prime Power Standby Power Cylinder No. Dimension (L×B×H)mm
KW KVA KW KVA
GNPG28 20 25 22 27.5 4 2100*730*1575
GNPG38 27 34 30 38 4 1800*880*1260
GNPG41 30 37.5 33 41 4 2100*730*1670
GNPG55 40 50 44 55 4 2100*880*1450
GNPG78 56 70 62.4 78 4 2100*730*1670
GNPG104 75 94 83 104 6 2490*830*1770
GNPG138 100 125 110 137.5 6 2490*830*1770
GNPG165 120 150 132 165 6 2680*860*1730
GNPG200 145 182 160 200 6 2680*860*1730
GNPG220 160 200 176 220 6 2680*860*1730
GNPG275 200 250 220 275 6 2800*1090*1715
GNPG308 224 280 246 308 6 2930*1100*1650
GNPG344 250 312 275 344 6 2930*1100*1650
GNPG413 300 375 330 413 8 3485*1155*1640
GNPG495 360 450 396 495 8 3600*1355*1910
GNPG550 400 500 440 550 8 3600*1355*1910
GNPG605 440 550 484 605 8 3600*1355*1910
GNPG688 500 625 550 688 8 3720*1640*2040
GNPG880 640 800 704 880 8 4660*2090*2320
GNPG1000 728 910 800 1000 12 4660*2090*2320
GNPG1141 830 1038 913 1141 12 4660*2090*2320





Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof



Digital Control panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown





Electricity LNG CNG 250kw natural gas generator genset power Synchronous grid water coolingElectricity LNG CNG 250kw natural gas generator genset power Synchronous grid water cooling

Electricity LNG CNG 250kw natural gas generator genset power Synchronous grid water coolingElectricity LNG CNG 250kw natural gas generator genset power Synchronous grid water cooling
