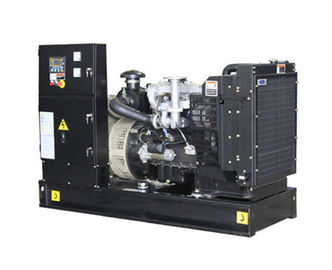

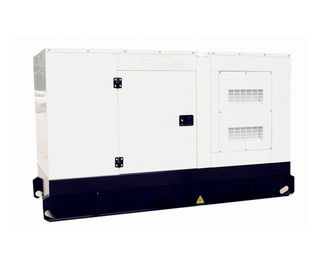

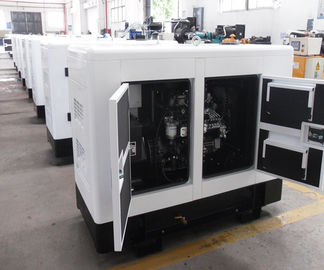

EPA Tier 4 Perkins 50kw Genset Diesel Generator 1104D-44TG1 Engine Asynchronous Alternator

I'm Online Chat Now

EPA Tier 4 Perkins 50kw Genset Diesel Generator 1104D-44TG1 Engine Asynchronous Alternator

EPA Tier 4 Perkins 50kw Genset Diesel Generator 1104D-44TG1 Engine Asynchronous Alternator
EPA Tier 4 Perkins 50kw Genset Diesel Generator 1104D-44TG1 Engine Asynchronous Alternator

Large Image :  EPA Tier 4 Perkins 50kw Genset Diesel Generator 1104D-44TG1 Engine Asynchronous Alternator

Product Details:
Place of Origin: China
Brand Name: Perkins
Certification: ISO9001:2008, CE
Model Number: GNRP50
Engine: Perkins
Alternator: brushless , AVR self-regulated
Control Panel: Smartgen, Deepsea,ComAp
Main Power: 50kw
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: within 15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 200units / month
Detailed Product Description
High Light:

diesel engine generator set

,

auto start generator

EPA tier 4 Perkins 50kw Genset Diesel Generator 1104D - 44TG1 engine Asynchronous alternator



Engine Features:

1. World most famous brand diesel engine: UK Perkins engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily



Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof



Control panel:
1
) The generator control panel is manufactured locally by
2) The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)
i) With EPA certification



MODEL GNRP
Powered by Engine
Standby Power (60HZ) 55kw
Prime Power (60HZ) 50kw
Engine Model Original Uk 1104D-44TG1
Speed 1800rpm
Cylinders 4L
Fuel Consumption 10.7L/H
Displacement (L) 3.9
Compression Ratio 17.25:1
Bore x Stroke 105*127mm
Lube Volume (L) 7.9
Coolant Volume (L) 10.2
Cooling Method Water - cooled
Starting Method 24V DC electrical start
Alternator Brand China Stamford,LeroySomer, Marathon
Voltage 220/380V
Electric Current 65A
Power Factor 0.8
Phase 3-phases
Brush/Brushless Brushless
Insulation Grade H
Protection Grade IP23
G.W/N.W 950 KGS
Overall Size 2300*1000*1400MM
20FT 12 PCS
OPTIONAL ATS(auto transfer switch)
  Auto Battery Charger
  AMF(auto mains failure)
