Product Details:
Payment & Shipping Terms:
|
| Product Name: | 300kva Perkins Diesel Generator | Engine Brand: | Perkins |
|---|---|---|---|
| Main Power: | 300kva | Cooling System: | Water Cooled |
| Alternator: | AVR Brushless Self-exciting | Starting Method: | Electric Auto Start |
| Voltage: | 120V ,240V , 380V | Frequency: | 50Hz Or 60Hz |
| Protection Class: | IP23 | Warranty: | 12 Months |
| High Light: | perkins power generator,silent diesel generator |
||

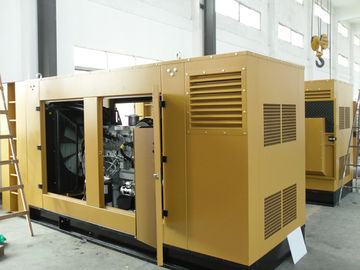

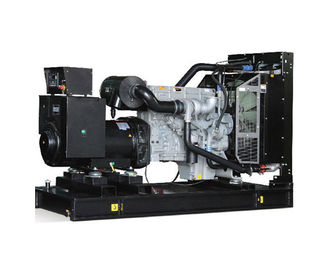

Engine 1506A - E88TAG4 Silent 300kva Perkins Diesel Generator power 110V / 220Volts 3 phase
1. Original UK Perkins industrial diesel engine
2. Radiator 50°C max, fans are driven by belt, with safety guard
3. Genuine Brushless AVR self-regulated alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Automatic changerover switch
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRP10 | 7 | 9 | 8 | 10 | 403A-11G1 | ≤252 | 3 | 1.131 | 77*81 |
| GNRP15 | 10 | 13 | 12 | 15 | 403A-15G1 | ≤264 | 3 | 1.496 | 84*94 |
| GNRP23 | 16 | 20 | 18 | 23 | 404A-22G1 | ≤243 | 4 | 2.216 | 84*100 |
| GNRP33 | 24 | 30 | 26 | 33 | 1103A-33G | ≤210 | 3 | 3.3 | 105*127 |
| GNRP50 | 36 | 45 | 40 | 50 | 1103A-33TG1 | ≤212 | 3 | 3.3 | 105*127 |
| GNRP65 | 48 | 60 | 52 | 65 | 1103A-33TG2 | ≤211 | 3 | 3.3 | 105*127 |
| GNRP73 | 52 | 65 | 58 | 73 | 1104A-44TG1 | ≤207 | 4 | 4.4 | 105*127 |
| GNRP88 | 64 | 80 | 70 | 88 | 1104A-44TG2 | ≤213 | 4 | 4.4 | 105*127 |
| GNRP103 | 80 | 100 | 88 | 110 | 1104C-44TAG2 | ≤210 | 6 | 5.99 | 100*127 |
| GNRP150 | 110 | 138 | 120 | 150 | 1106A-70TG1 | ≤205 | 6 | 5.99 | 100*127 |
| GNRP165 | 120 | 150 | 132 | 165 | 1106A-70TAG2 | ≤205 | 6 | 5.99 | 100*127 |
| GNRP225E | 165 | 206 | 180 | 225 | 1106A-70TAG4 | ≤220 | 6 | 8.7 | 117*136 |
| GNRP275E | 200 | 250 | 220 | 275 | 1506A-E88TAG3 | ≤223 | 6 | 8.7 | 117*136 |
| GNRP344E | 240 | 300 | 264 | 330 | 1506A-E88TAG5 | ≤201 | 6 | 14.6 | 137*165 |
| GNRP388E | 280 | 350 | 310 | 388 | 2206C-E13TAG2 | ≤198 | 6 | 14.6 | 137*165 |
| GNRP450E | 320 | 400 | 360 | 450 | 2206C-E13TAG3 | ≤201 | 6 | 14.6 | 137*165 |
| GNRP500E | 360 | 450 | 400 | 500 | 2506C-E15TAG1 | ≤216 | 6 | 15 | 137*171 |
| GNRP550E | 400 | 500 | 440 | 550 | 2506C-E15TAG2 | ≤211 | 6 | 15 | 137*171 |
| GNRP625E | 450 | 563 | 500 | 625 | 2806A-E18TAG1A | ≤196 | 6 | 18.13 | 145*183 |
| GNRP700E | 508 | 635 | 560 | 700 | 2806A-E18TAG2 | ≤203 | 6 | 18.13 | 145*183 |
| GNRP800 | 580 | 725 | 640 | 800 | 4006-23TAG2A | ≤199 | 6 | 22.921 | 160*190 |
| GNRP900 | 640 | 800 | 720 | 900 | 4006-23TAG3A | ≤200 | 6 | 22.921 | 160*190 |
| GNRP1000 | 720 | 900 | 800 | 1000 | 4008-TAG1A | ≤206 | 8 | 30.561 | 160*190 |
| GNRP1125 | 818 | 1022 | 900 | 1125 | 4008-TAG2A | ≤208 | 8 | 30.561 | 160*190 |
| GNRP1375 | 1000 | 1250 | 1100 | 1375 | 4012-46TWG2A | ≤212 | 12 | 45.482 | 160*190 |
Engine Features:
1. Genuine UK Perkins industrial diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Contact Person: Mr. Albert
Tel: 0086-18926068265
