50kva to 500kva Cummins water cooled marine diesel generator

I'm Online Chat Now

50kva to 500kva Cummins water cooled marine diesel generator

China 50kva to 500kva Cummins water cooled marine diesel generator supplier
50kva to 500kva Cummins water cooled marine diesel generator supplier 50kva to 500kva Cummins water cooled marine diesel generator supplier 50kva to 500kva Cummins water cooled marine diesel generator supplier

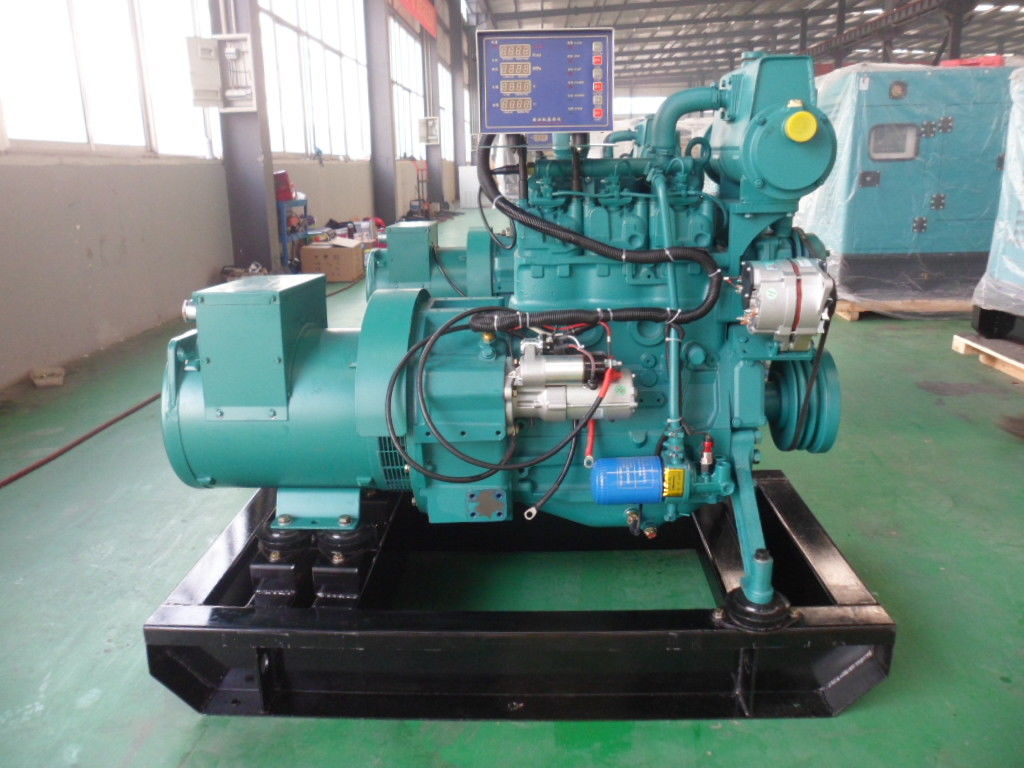

Large Image :  50kva to 500kva Cummins water cooled marine diesel generator

Product Details:

Place of Origin: China
Brand Name: Cummins
Certification: ISO9001:2008, CE
Model Number: GNRC
Engine: Perkins
Alternator: Stamford, Leroy somer ,Marathon,Engga
Control Panel: Smartgen, Deepsea,ComAp
Rated Power: 40kw to 500kw
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz

Payment & Shipping Terms:

Price: Negotiable
Contact Now
Detailed Product Description

50kva to 500kva Cummins water cooled marine diesel generator

Performance Feature

Applied for continuous power generation

Engine and alternator will be mounted on a frame steel skid.

Built-in damper for anti-vibration.

Cummins brand diesel engine.

World Top brand AC alternator.

Advanced and reliable control module

Full range protection function and alarm shutdown feature.

Genset ModelPrime PowerStandby PowerEngine ModelRated PowerDimensionWeight
KWKVAKWKVAKW/RPML×W×H(mm)Kgs
GNRC40M405044554BTA3.9-GM4747/15001670*850*1270800
GNRC50M506355696BT5.9-GM8383/15001900*895*13001000
GNRC65M658172896BT5.9-GM8383/15001900*900*13001100
GNRC80M80100881106BTA5.9-GM100100/15001920*895*13001250
GNRC100M1001251101386CT8.3-GM115115/15002110*810*13601650
GNRC125M1251561381726CTA8.3-GM155155/15002110*810*13601700
GNRC140M140175154193NT855-DM180/15002685*995*17901750
GNRC170M170213187234NT855-DM205/15002690*995*17902900
GNRC200M200250220275NTA855-DM240/15002760*995*17903100
GNRC240M240300264330NTA855-DM284/15002760*995*17903180
GNRC270M270338297371NTA855-DM306/15002850*995*17903250
GNRC300M300375330413KTA19-DM336/15003170*1000*19053750
GNRC360M360450396495KTA19-DM403/15003170*1000*19053800
GNRC400M400500440550KTA19-DM448/15003170*1000*19053950

Engine Features:

1.GenuineCummins Marinediesel engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8.Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily

Alternator Features:

1. World famous brand AC alternator:Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5.AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Digital Control panel

Controller Brand: Smartgen

Control Panel:English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown

Warranty policy

Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.

50kva to 500kva Cummins water cooled marine diesel generator50kva to 500kva Cummins water cooled marine diesel generator
