Deutz Marine Diesel Generator 100kw 50Hz 1500rpm with Moisture proof

I'm Online Chat Now

Deutz Marine Diesel Generator 100kw 50Hz 1500rpm with Moisture proof

China Deutz Marine Diesel Generator 100kw 50Hz 1500rpm with Moisture proof supplier

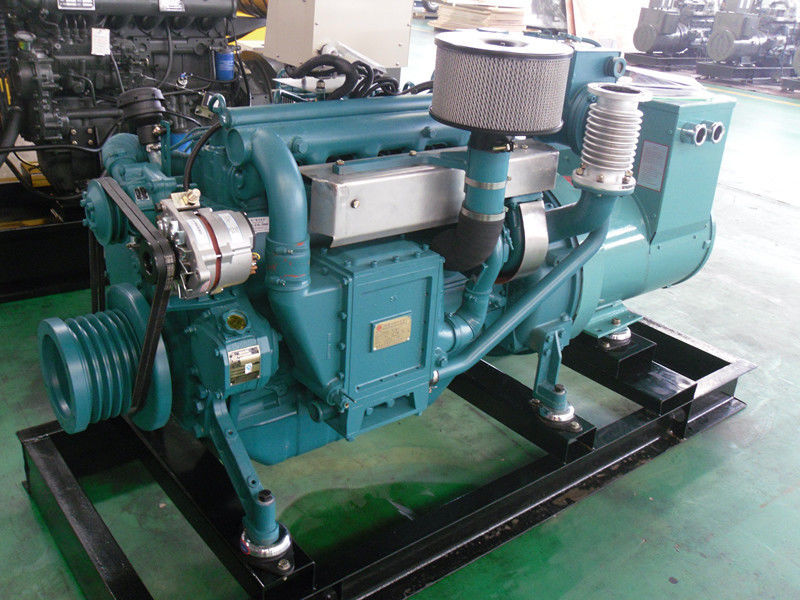

Large Image :  Deutz Marine Diesel Generator 100kw 50Hz 1500rpm with Moisture proof

Product Details:

Place of Origin: China
Brand Name: Deutz
Certification: ISO9001:2008, CE

Payment & Shipping Terms:

Price: Negotiable
Contact Now
Detailed Product Description





100kw Marine Diesel Generator / 50Hz 1500rpm Deutz Marine Generator









Quick Detail:



1.sea water cooled diesel engine

2.deutz engine model:TD226B-6C

3.marathon brushless ac alternator

4.ccs certificate





Genor Power Deutz series diesel generator setd adopt DEUTZ 226B series low power diesel engine made by Sino-Germany Joint-Venture Company in China.The DEUTZ engines are 4-cycle,water cooled, 24DVC working voltage for conrol system,adopt circumvolve fuel fiter&oil filter cleaner, Dry air cleaner,compact structure,fine quality,reliable capability





1.Specification of genset:







1) Genset model:GNRD100



2) Engine model:TD226B-6C



3) Alternator model:marathon



4) Prime power(kva/kw):125/100



5) Standby power(kva/kw):137.5/110



6) Rated frequency(HZ):50



7) Full-load diesel consumption(g/kw.h):198



8) BorexStock(mm):105x120



9) Engine displacement(mm):6.23



10) Inspiration:Turbo charger



11) No of cylinders:6



12) Arrangement of cylinders:Inline



13) Lube Volume(L):15



14) Net weight(kg):810



15) Dimensions(mm:L/W/H):1278X663X1091







2.Specification of DEUTZ engine:







1) Type:4-stroke,In-line;6-cylinder



2) Firing order:1=5-3-6-2-4



3) Cubic capacity(L):6.23



4) Exhaust temperture:620



5) Air coolant mass flow(m3/min):200



6) Coolant capacity-engine only(L):30



7) Area of air intake dischar geair:0.55



8) Specife consumption flubracation oil(g/h):1.63



9) Capacity of lubrication oil(L):16



10) Exhaust Sound Pressure at 1m from Exhaust Outlet -1500r/min -dBA:100





General Technical Data



1. Frequency: 50 & 60Hz



2. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire



3. Voltage: 120/207V,127/220V,220/380V, 230/400V, 240/415V, etc



4. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank



5. Monitoring meters and control switches



6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure



Control Panel:



1. Automatic control panel (AMF), LCD display



2. Four protection systems



3. Emergency stop
