Open Type Perkins Genset Diesel Generator 10kw 12.5kva With Three Phase

I'm Online Chat Now

Open Type Perkins Genset Diesel Generator 10kw 12.5kva With Three Phase

China Open Type Perkins Genset Diesel Generator 10kw 12.5kva With Three Phase supplier

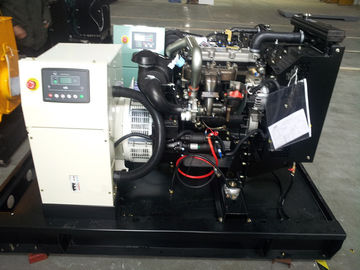

Large Image :  Open Type Perkins Genset Diesel Generator 10kw 12.5kva With Three Phase

Product Details:

Place of Origin: China
Brand Name: Perkins
Certification: ISO9001:2008, CE
Model Number: GNRP
Engine: Perkins
Alternator: Stamford, Leroy somer ,Marathon,Engga
Control Panel: Smartgen, Deepsea,ComAp
Rated Power: 10kw
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz

Payment & Shipping Terms:

Price: Negotiable
Contact Now
Detailed Product Description



Open Type Perkins Genset Diesel Generator 10kw 12.5kva With Three Phase





Quick Detail:

1.UK Imported water cooled diesel engine:403D-15g.

2.Stamford ac brshless alternator :PI044G

3.Deepsea Automatic Start/Stop

4.Three phase four wires,50hz,1500rpm





Specifications:



perkins diesel generator set
    GEN-SETS  Model GNRP10
Engine Brand Perkins
Rated Output(kw)  10
Current(A) 18
Power factor(cosφ) 0.8
Frequency(hz) 50/60
Fuel Consumption(g/kw.h) ≤252
The regulating rate of instantaneous voltage ≤-10%/ +15%
The time of steady voltage ≤1.5sec
The waving rate of voltage ≤0.5%
The regulating rate of steady frequency ≤3%
The regulating rate of instantaneous frequency ≤±5%
The time of steady frequency 3sec
The waving rate of frequency ≤0.25%
Dim L×W×H(mm) 1200X700X1100
Weight(kg) 300
  Diesel engine  Engine model 403D-15G
Cylinder 3
Bore*Stroke(mm) 84*90
Lubricating oil capacity 5.7
Rated speed(rpm)  1500/1800
Cooling method  Closed water cooling
Starting system  Electrical start
Displacement(L) 1.496
     Alternator  Brand  Stamford/Marathon/Engga
Type Brushless
The connecting way of the phase Three phases four lines
Insulation degree H degree
Grading Protection IP23





Digital Control panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown



Soundproof/Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 12 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA



Optional:

1. Trailer type

2. Soundproof / water proof

3. ATS (automatic transfer switch)

4. Parallel system

5. Remote system



PMC System:

1. Standard 23 pitch windings avoid excessive neutral current

2. Permanent magnet generator system provides constant excitation under all condition

3. Optional accessories available for easy paralleling with mains or other generators

4. AVR auto voltage regulation, auto exciter, auto adjustment
