6m Big air cooling HVLS Large Industrial Ceiling Fan Energy Efficient For Factory

I'm Online Chat Now

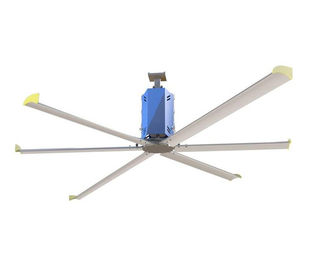

6m Big air cooling HVLS Large Industrial Ceiling Fan Energy Efficient For Factory

China 6m Big air cooling HVLS Large Industrial Ceiling Fan Energy Efficient For Factory supplier
6m Big air cooling HVLS Large Industrial Ceiling Fan Energy Efficient For Factory supplier 6m Big air cooling HVLS Large Industrial Ceiling Fan Energy Efficient For Factory supplier 6m Big air cooling HVLS Large Industrial Ceiling Fan Energy Efficient For Factory supplier

Large Image :  6m Big air cooling HVLS Large Industrial Ceiling Fan Energy Efficient For Factory

Product Details:

Place of Origin: China
Brand Name: Genor
Certification: CSA,CE,CCC
Model Number: GFAN
Product name: big air cooling fan
Motor Power: 1.5kw
Air Speed: 2-3m/s
amount of the blade: 6
Blade Material: Aluminium alloy

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden package
Delivery Time: within 7 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 200 units ./ month
Contact Now
Detailed Product Description
Motor Brand: Germany Nord Warranty: 3 Years

6m Big air cooling HVLS Large Industrial Ceiling Fan Energy Efficient For Factory
 Our industrial ceiling fan is a new solution of Energy Saving to solve ventilation,
cooling and dehumidification in large indoor place.


1.High Air Volume, Low RotatingSpeed
2.20ft Four Blades with aerodynamic design
3.Large Coverage,Long Life span
4.refresh the air continuously


It is High Air Volume and Low Rotating Speed
 The traditional fan runs at high speed with high power consumption.it is damaged easily and the air covering space is also small .
But our HVLS super ceiling fan runs at low speed to slowly move a lot of air in large area through unique fan bladesOur HVLS Ceiling fan only have 6 blades.
From the center along the blades, blade's width and thickness gradually are narrowed and thin, in accordance with the modern aerodynamical  science, the whole blades drive more and even airflow downward, no empty zone in center area.
The streamline design of the (windward side)  cross-sectional of the blade decreases the airflow resistance.Spire of the blade tilts up 3 degrees than the root part, conical air flow instead of cylinder one can directly cover a larger area and it makes airflows much more similar to natural intermittent wind.
For our super ceiling fan , The powerful blades with aerodynamic design move much more indoor air,
keeping the surface of the goods dry in wet season.

Specification





ModelDiameterMax SpeedCovering SpacingAir Volume (CFM)Moter PowerWeight
GFAN252500mm (8 FT)129rpm200m2400001.1kw70kg
GFAN313100mm (10FT)114rpm350m27400075kw
GFAN333700mm (12FT)95rpm500m210200085kg
GFAN434300mm (14FT)83rpm600m2114000110kg
GFAN494900mm (16FT)75rpm900m21930001.5kw120kg
GFAN616100mm (20FT)67rpm1200m2292000125kg
GFAN737300mm (24FT)53rpm1500m2363000130kg


Advantages
1)High efficient air flow
2)Strengthen the air cycle effectively
3)Low cost and free maintenance
4)Provide cool air flow in summer and hot air cycle in winter
5)Large application area
6)Propeller blades guarantee safety
Environmental Protection
1)Very low enery consumption
2)Provide natural ventilation and lower the temperature effectively
3)Refresh the air continuosly
