32 kw cummins power silent 40 kva diesel generator

I'm Online Chat Now

32 kw cummins power silent 40 kva diesel generator

China 32 kw cummins power silent 40 kva diesel generator supplier
32 kw cummins power silent 40 kva diesel generator supplier 32 kw cummins power silent 40 kva diesel generator supplier 32 kw cummins power silent 40 kva diesel generator supplier

Large Image :  32 kw cummins power silent 40 kva diesel generator

Product Details:

Place of Origin: China
Brand Name: Cummins
Certification: ISO9001:2008, CE
Model Number: GNRC
Engine: Cummins
Alternator: Stamford, Leroy somer ,Marathon,Engga
Control Panel: Smartgen, Deepsea,ComAp
Rated Power: 40kva
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz
Rated Voltage: 120V/208V,220V/380V, 240V/415V
Product Name: 40 kva diesel generator

Payment & Shipping Terms:

Price: Negotiable
Contact Now
Detailed Product Description

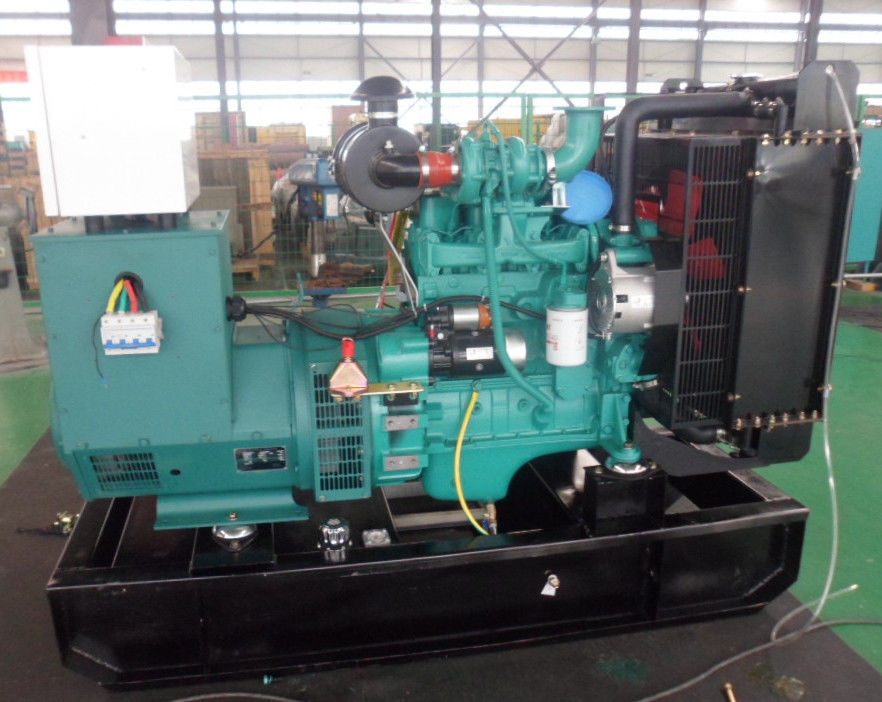

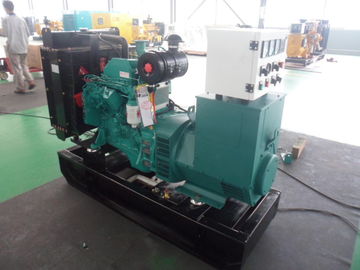

32 kw cummins power silent 40 kva diesel generator

Our company is an approved Cummins OEM partner.So we can provide genuine Cummins genset with very competitive price and comprehensiv Super Silent Diesel Generator With Ats e technical support.

cummins .jpg

Specification:

1)Composed by Cummins diesel engine and Stamford alternators.

2) Output range: 32KW /40KVA

Rated current: 57.7A

Rated speed: 1,500rpm(1800rpm for option)
Rated frequency: 50Hz(60 also available)
Rated voltage: 220V/380V,230V/400V,240V/415V
Silent level: <70dB

3)Engine charger alterntor 12V

Single bearing alternator IP23, Insulation class "H"

40Cradiator as standard,45C is optional,water-cooled

Skid and Vibration isolators

type air filter,Main line circuit breaker

Microprocessor control panel,key start control panel be optional

4 pole MCB,12V battery,rack and cable

8 hours operation base tank

Special integrated steel base tank and sprayed overall in gloss enamel pain

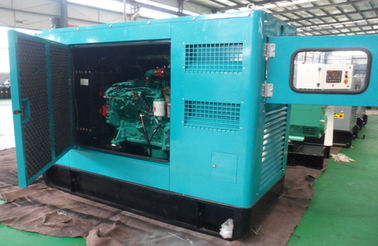

Optional Soundproof or weatherproof canopy,Industrial or residential silencer be optional

Diesel engine model4BT3.9-G2/G1
Engine CharactersWater-cooled,in line,4 stroke,direct injection,wet cylinder liner.1500rpm
Constant Power(Kva)36KW /45KVA
Standby power (Kva)40KW /50KVA
AspirationNaturally
Bore(mm)X Stroke(mm)102*120
Cylinder number4
Displacement(Liters)3.91
Compression Ration16.5:1
Cooling System Volum(L)8
Max water temperature100°C
Speed characteristicsThe speed stability bandwidth±0.25.The stealy govering rate1%
Fuel consuption215g/kw.h
Lube consuption (prime)1.36g/kw.h
Radiated Heat to Ambient(KWm)6
Heat Rejection to Coolant(KWm)27
Heat Rejection to Exhaust(KWm)38
Intake Air Flow(l/s)52
Exhaust gas Flow(cubic meters/h)601
Exhaust Temperature (°C492
Exhaust Back Pressure

10 kPa (Maximum)

Alternator BrandStamford
Alternator modelPI144J
Continous output40KVA
Power Factor:0.8Lagging
Connecting Type:3 Phase and 4 Wires, “ Y” type connecting
Power efficiency86.90%
Altitude:1000m
Voltage regulation±1.0% with 4% engine governing
Waveform DistortionNo load<1.5% and non-disttorting balanced lindear load <5%
THF/TIF<2% <50

Control panel:

It includes the following:
1. automatic cutter which is suitable for the generator power.
2.Turn on key.
3.A device to measure the generators speed.
4.Counter for measuring the Operating hours.
5. Device to measure the current overload with a switched current.
6.A device to measure the battery voltage.
7. Voltmeter with a voltage exchanger.
8. A device to measure the frequency.
9.Thermostat to regulate the voltage.
10.A device to measure the oil pressure.
11Alerting lamps indicating low and high temperature.
12Controller of the current increase and short circuit.
13Emergency stop button.

Standard configuration supply scope:

(1)Diesel engine with all accessories,3 filter,electrical systems.
(2)Alternator.

(3)Steel structure.
(4)Fan and water cooling system.
(5)Flange connector.
(6)12v/24vstarting motor and charge engine.
(7)Air cleaner,fuel cleaner,oil cleaner.
(8)On-board control panel.
(9)MCCB air conservation switch.
(10)12v/24v starting accumulator and bettery line.
(11)Set shock absorber.

Optional accessories:

1. Engine coolant and oil heater, alternator space heater, cooling for heat exchanger communication interface,

2. Battery charger by main supply

3. Fuel-water seperators

4. ATS & paralleling system

5. Soundproof canopy and moving trailer.

Our Advantages:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers’ request

3. Polyester varnish for appearance protecting for shining and raining

4. Two hours testing before out factory

5. ISO9001 and CE certification

Commercial Conditions
1.Port of loading: Fuzhou port
2.Port of destination: to be informed
3.Delivery time: 15-40 days after down payment
4.Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory
5.Insurance: 110% of total amount
6.Failure Remedy: free spare parts due to failures cause by the quality

7.Warranty policy

The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours ,whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
