Home ProductsCummins Diesel Generator

250kva 200kw Silent Power Generator , Cummins Industrial Generator H Insulation Degree

I'm Online Chat Now

250kva 200kw Silent Power Generator , Cummins Industrial Generator H Insulation Degree

China 250kva 200kw Silent Power Generator , Cummins Industrial Generator H Insulation Degree supplier
250kva 200kw Silent Power Generator , Cummins Industrial Generator H Insulation Degree supplier 250kva 200kw Silent Power Generator , Cummins Industrial Generator H Insulation Degree supplier

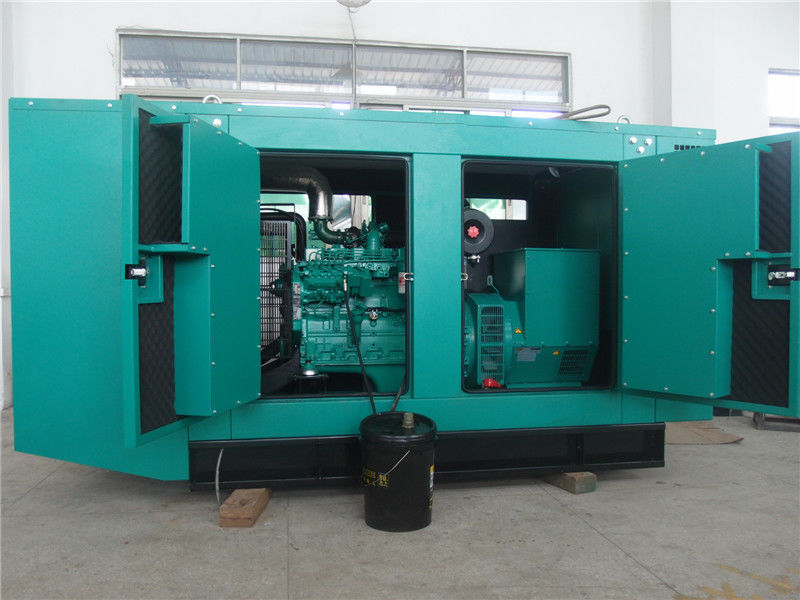

Large Image :  250kva 200kw Silent Power Generator , Cummins Industrial Generator H Insulation Degree

Product Details:

Place of Origin: China
Brand Name: Cummins
Certification: ISO9001:2008, CE
Model Number: GNRC
Engine: Cummins
Alternator: Stamford, Leroy somer ,Marathon,Engga
Control Panel: Smartgen, Deepsea,ComAp
Rated Power: 20kw to 1600kw
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz
Rated Voltage: 120V/208V,220V/380V, 240V/415V
Product Name: cummins generator 250kva price

Payment & Shipping Terms:

Price: Negotiable
Contact Now
Detailed Product Description

250kva silent 200kw cummins generator price



Cummins series diesel generator sets is adopted the B,N,K series engine(sino-us JVC), and widely used in army, engineering, mining industry, more reliable, economic.Cummins company was founded in 1919,February. The H.Q is in Columbus,Indiana(USA),and have about 500 distributors spread in 190 countries and regions,users can have the very efficient service,fast connection with the company.

250kva 200kw Silent Power Generator , Cummins Industrial Generator H Insulation Degree





Type

GNRC200

Frequency(50/60HZ)

200KW/250KVA





Standard configuration



Overall description:

  • Cummins Engine and Stamford Alternator
  • Water cooled radiator, the fans driven by belt, with safety shield.
  • 24 V Battery charging Alternator
  • Alternator:Single bearing Alternator,IP22 Grading Protection, H Insulation degree
  • Shock absorber
  • Dry air filter,Fuel filter,Oil filter
  • Power output circuit breaker
  • Deepsea control panel(LCD display)
  • 12 V battery and battery connection cables
  • Exhaust pipe,Corrugated shock tube,flange,Muffler set
  • Maintenance manuals
  • Lubrication System



Sales commitment



The products that we provide are all new, each unit all get through the strict production testing.

12 months or 1000 hours(whichever occurs first) of Warranty Time for all our products. We take the full responsibility only in the fault that created by the quality, the wearing-parts, daily consumables and human error of operating & maintenance are not included in.



Criterion

  • GB/T19001-2008
  • SO9001:2008 Quality Control System

The main parameters of the generator set



Technical data

Genset Model

GNRC200

Prime Power

200KW/250KVA

Rated Voltage

400/230V

Frequency

50/60Hz

Power Factor

0.8(lagging)

The regulating rate of steady voltage

≤±0.5%

The regulating rate of instantaneous voltage

≤-15%/ +20%

The time of steady voltage

≤1.5sec

The waving rate of voltage

≤1.0%

The regulating rate of steady frequency

≤3%

The regulating rate of instantaneous frequency

≤±10%

The time of steady frequency

3sec

Dimension (L×W×H) (mm) of naked unit

2600*970*1500

Genset weight (kg)

2500

Diesel Engine

Brand

Cummins

Model

6LTAA8.9-G2

Number of Cylinders

6

Rotating Speed

1500/18000RPM

Cycle

Four stroke

Type

waste gas turbine boost,direct spurting type

Bore×Stroke(mm)

114*145

Displacement(L)

8.9

Lubricating Capacity(L)

28

Speed Governor

Electrical

Cooling System

Water-cooled

Speed Stability (%)

≤5%

Fuel Consumption at 100% Load

208g/kw.h

Starting Method

DC24V Electrical starting

Alternator

Brand

Stamford

Model

UCDI274K

Number of Phase

3

Connecting Type

Three Phase and Four Lines

Number of Bearing

1

Grading Protection

IP22

Altitude

≤1000m

Exciter Type

Brushless (AVR automatic voltage regulating)

Insulation Class

H degree

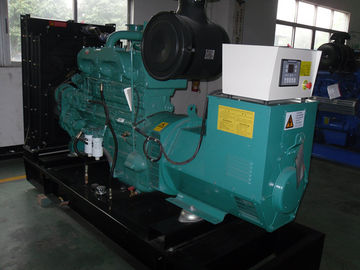

The components of the genset

(1) Cummins Diesel Engine; (2) Stamford Alternator; (3) Deepsea Control Panel

Control Panel

The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.



For better meet user's demands, the alternator is selectable, we haveStamford, Marathon,Engga and other famous brands.



DigitalControl system:

1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C

(1)Diesel engine with all accessories,3 filter,electrical systems.
(2)Alternator.

(3)Steel structure.
(4)Fan and water cooling system.
(5)Flange connector.
(6)12v/24vstarting motor and charge engine.
(7)Air cleaner,fuel cleaner,oil cleaner.
(8)On-board control panel.
(9)MCCB air conservation switch.
(10)12v/24v starting accumulator and bettery line.
(11)Set shock absorber.

Optional accessories:

1. Engine coolant and oil heater, alternator space heater, cooling for heat exchanger communication interface,

2. Battery charger by main supply

3. Fuel-water seperators

4. ATS & paralleling system

5. Soundproof canopy and moving trailer.

Security and safety:
1) Control panel viewing window in a lockable access door
2) Emergency shut down for low oil pressure and high water temperature,Emergency stop push button (red) mounted on enclosure exterior
3) Cooling fan and battery charging alternator fully guarded Fuel fill and battery can only be reached via lockable access doors
4) Exhaust silencing system totally enclosed for operator safety

Warranty

The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours ,whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.

250kva 200kw Silent Power Generator , Cummins Industrial Generator H Insulation Degree250kva 200kw Silent Power Generator , Cummins Industrial Generator H Insulation Degree250kva 200kw Silent Power Generator , Cummins Industrial Generator H Insulation Degree
