125kva 100kw Cummins Diesel Generator With 24V Battery Charging Alternator

I'm Online Chat Now

125kva 100kw Cummins Diesel Generator With 24V Battery Charging Alternator

China 125kva 100kw Cummins Diesel Generator With 24V Battery Charging Alternator supplier
125kva 100kw Cummins Diesel Generator With 24V Battery Charging Alternator supplier 125kva 100kw Cummins Diesel Generator With 24V Battery Charging Alternator supplier 125kva 100kw Cummins Diesel Generator With 24V Battery Charging Alternator supplier

Large Image :  125kva 100kw Cummins Diesel Generator With 24V Battery Charging Alternator

Product Details:

Place of Origin: China
Brand Name: Cummins
Certification: ISO9001:2008, CE
Model Number: GNRC
Alternator: Stamford, Leroy somer ,Marathon,Engga
Control Panel: Smartgen, Deepsea,ComAp
Rated Power: 100kw
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz
Rated Voltage: 120v/208v,220V/380V, 240V/415V
Engine: 6BTAA5.9-G2
Product Name: 100 kw generator price

Payment & Shipping Terms:

Price: Negotiable
Contact Now
Detailed Product Description
High Light:

genset diesel generator

,

cummins industrial generator

125 kva Cummins engine silent 100 kw generator price



125kva 100kw Cummins Diesel Generator With 24V Battery Charging Alternator 0



Specifications:

Cummins is one of world top famous engines and widely acceptable all over the world. Cummins Inc., a global power leader, is a corporation of complementary business units that design, manufacture, distribute and service engines and related technologies, including fuel systems, controls, air handling, filtration, emission solutions and electrical power generating systems. Headquartered in Columbus, Indiana, (USA) Cummins serves customers in approximately 190 countries and territories through a network of more than 600 company-owned and independent distributor locations and approximately 5,200 dealer locations.



Type

GNRC125

Frequency(50/60HZ)

100KW/125KVA



Standard configuration



Overall description:

  • Cummins Engine and Stamford Alternator

  • Water cooled radiator, the fans driven by belt, with safety shield.

  • 24 V Battery charging Alternator

  • Alternator:Single bearing Alternator,IP23 Grading Protection, H Insulation degree

  • Shock absorber

  • Dry air filter,Fuel filter,Oil filter

  • Power output circuit breaker

  • Harsen control panel(LCD display)

  • 12 V battery and battery connection cables

  • Exhaust pipe,Corrugated shock tube,flange,Muffler set

  • Maintenance manuals

  • Lubrication System



Sales commitment



The products that we provide are all new, each unit all get through the strict production testing.

12 months or 1000 hours(whichever occurs first) of Warranty Time for all our products. We take the full responsibility only in the fault that created by the quality, the wearing-parts, daily consumables and human error of operating & maintenance are not included in.





Criterion

  • GB/T19001-2008
  • SO9001:2008 Quality Control System



The main parameters of the generator set





Technical data

Genset Model

GNRC125

Prime Power

100KW/125KVA

Rated Voltage

400/230V

Frequency

50/60Hz

Power Factor

0.8(lagging)

The regulating rate of steady voltage

≤±0.5%

The regulating rate of instantaneous voltage

≤-15%/ +20%

The time of steady voltage

≤1.5sec

The waving rate of voltage

≤1.0%

The regulating rate of steady frequency

≤3%

The regulating rate of instantaneous frequency

≤±10%

The time of steady frequency

3sec

Dimension (L×W×H) (mm)

2250*800*1300

Genset weight (kg)

1250

Diesel Engine

Brand

Cummins

Model

6BTAA5.9-G2

Number of Cylinders

6

Rotating Speed

1500/18000RPM

Cycle

Four stroke

Type

waste gas turbine boost,direct spurting type

Bore×Stroke(mm)

114*135

Displacement(L)

5.9

Lubricating Capacity(L)

16

Speed Governor

Electrical

Cooling System

Water-cooled

Speed Stability (%)

≤5%

Fuel Consumption at 100% Load

210 g/kw.h

Starting Method

DC24V Electrical starting

Alternator

Brand

Stamford

Model

UCI274E

Number of Phase

3

Connecting Type

Three Phase and Four Lines

Number of Bearing

1

Grading Protection

IP23

Altitude

≤1000m

Exciter Type

Brushless (AVR automatic voltage regulating)

Insulation Class

H degree

The components of the genset

(1) Cummins Diesel Engine; (2)Stamford Alternator; (3) Control Panel

Control Panel

The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.



control plane

Controller Brand: Deep Sea / Smartgen (Digital and intelligent)

LED Screen and touch Buttons’



Main Functions,

1- Display loading power, voltages, currencies, frequency, speed, temperatures, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Shut down when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc



Warranty policy

Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.



Cummins Engine

125kva 100kw Cummins Diesel Generator With 24V Battery Charging Alternator 1

Original stamford alternator and certificate :

125kva 100kw Cummins Diesel Generator With 24V Battery Charging Alternator 2

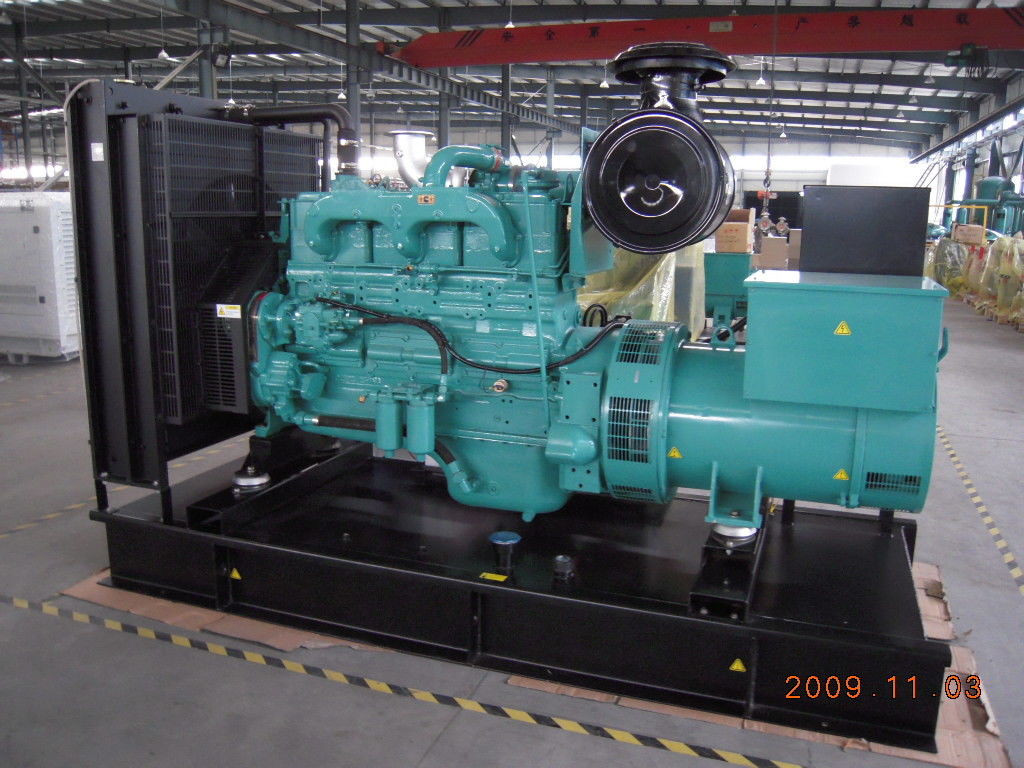

Cummins Open type Genset :

125kva 100kw Cummins Diesel Generator With 24V Battery Charging Alternator 3

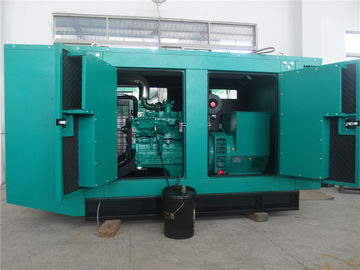

Silent Type Diesel Genset :

125kva 100kw Cummins Diesel Generator With 24V Battery Charging Alternator 4
