63kva Industrial Engine Cummins Diesel Generator 66kva Electric Stanford UCI224E

I'm Online Chat Now

63kva Industrial Engine Cummins Diesel Generator 66kva Electric Stanford UCI224E

China 63kva Industrial Engine Cummins Diesel Generator 66kva Electric Stanford UCI224E supplier
63kva Industrial Engine Cummins Diesel Generator 66kva Electric Stanford UCI224E supplier 63kva Industrial Engine Cummins Diesel Generator 66kva Electric Stanford UCI224E supplier

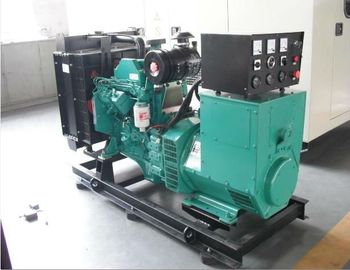

Large Image :  63kva Industrial Engine Cummins Diesel Generator 66kva Electric Stanford UCI224E

Product Details:

Place of Origin: China
Brand Name: Cummins
Certification: ISO9001:2008, CE
Alternator: Stamford, Leroy somer ,Marathon
Control Panel: Smartgen, Deepsea
Rated Power: 63kva
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz
Rated Voltage: 120v/208v,220V/380V, 240V/415V

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: within 15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Contact Now
Detailed Product Description

63kva Industrial Engine Cummins Diesel Generator 66kva Electric Stanford UCI224E




  1. Item:Technical Parameters
  2. Gen-set Model:GNRC50
  3. Prime Power:45KW /56KVA
  4. Standby Power:50KW / 63KVA



Specifications:

1. Genuine Commins industrial diesel engine water cooling
2. 24V DC start motor and storage battery
3. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

4.Stanford UCI224E / Marathon MP-48-4/Engga EG225S-50N



Item

Technical Parameters

Gen-set Model

GNRC50

Diesel Engine Model

Dongfeng Cummins Diesel Engine 4BTA3.9-G2

Alternator Model

Stanford UCI224E / Marathon MP-48-4/Engga EG225S-50N

Prime Power

45KW /56KVA

Standby Power

50KW / 63KVA

Rated Voltage

400/230 V

Rated Frequency

50/60 HZ

Rated Current

81 A

Rated Speed

1500/1800 rpm

Power Factor

0.8(Lagging)

Speed Regulation

Electric regulate at 1500rpm

Steady Voltage Regulation

≤±1%

Steady Frequency Regulation

≤±5%

Steady Voltage Fluctuation Rate

0.5%

Steady Frequency Fluctuation Rate

0.5%

Transient Voltage Regulation

-15% ~ +20%

Transient Frequency Regulation

-10% ~ +10%

Voltage Recovery Time

< 6 S

Waveform Distortion

Sine Wave,waveform distortion<5%

Structure of Gen-set

Diesel engine, alternator and radiator tank are integrally assembled on one high-strength steel base.

Dimension

L x W x H =1860×740×1250 mm

Weight

840Kg

Engine Features:



Ietm

Technical Parameters

Diesel Engine Model

4BTA3.9-G2

Diesel Engine Brand

DCEC Cummins Diesel Engine

Prime/Standby Power

50KW /55KW

Rated Speed

1500rpm

Type of Cooling

Equipped with fan, water tank and radiator, closed circulating water cooling

Speed Regulation

Electron Speed Regulator

Start Mode

DC24V Electrical Start

Air Intake System

Exhaust Turbocharging, water-air intercooling

Exhaust System

Silencer and corrugated pipe elastic fittings

Cylinder Type

4 Cylinders in Line

Bore / Stroke

102mm / 120mm

Displacement

3.9 L

Fuel Type

Common(0#)Diesel Oil

100% Loading Fuel Consumption

13 L/H



Item

Technical Parameters

Alternator Model

Stanford UCI224E / Marathon MP-48-4/Engga EG225S-50N

Type

Brushless and self-excitation

Alternator Power

48KW /60KVA

Efficiency

88.8%

Power Factor

0.8

Insulation Class

H

Protection Class

IP23

Ambient Temperature

≤40°C


Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown

Super Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA

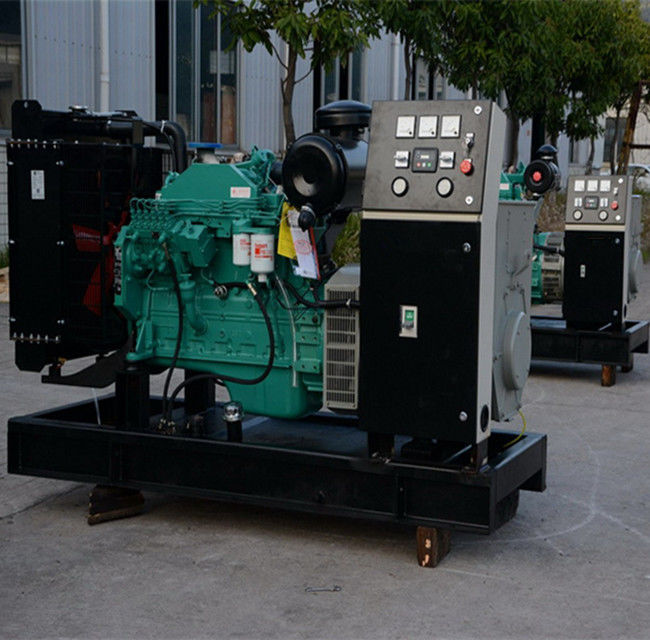

63kva Industrial Engine Cummins Diesel Generator 66kva Electric Stanford UCI224E
