Product Details:
Payment & Shipping Terms:
|
| High Light: | diesel engine generator set,auto start generator |
||
|---|---|---|---|

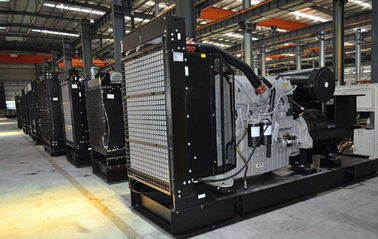

500kva perkins Genset Diesel Generator 400kw engine 2506C - E15TAG2 silent enclosure power
1. Genuine stamford. Leroy somer, marathon brushless alternator
2. Choice of manual/auto and AMF control panels and protection systems
3. Digital auto-start panel
4. Anti Vibration Suspension Absorber
5. UK perkins diesel engine
6. 10-hour operation base tank
7.Mould case circuit breaker
8. 24V DC start motor and storage battery
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRP10 | 7 | 9 | 8 | 10 | 403A-11G1 | ≤252 | 3 | 1.131 | 77*81 |
| GNRP15 | 10 | 13 | 12 | 15 | 403A-15G1 | ≤264 | 3 | 1.496 | 84*94 |
| GNRP23 | 16 | 20 | 18 | 23 | 404A-22G1 | ≤243 | 4 | 2.216 | 84*100 |
| GNRP33 | 24 | 30 | 26 | 33 | 1103A-33G | ≤210 | 3 | 3.3 | 105*127 |
| GNRP50 | 36 | 45 | 40 | 50 | 1103A-33TG1 | ≤212 | 3 | 3.3 | 105*127 |
| GNRP65 | 48 | 60 | 52 | 65 | 1103A-33TG2 | ≤211 | 3 | 3.3 | 105*127 |
| GNRP73 | 52 | 65 | 58 | 73 | 1104A-44TG1 | ≤207 | 4 | 4.4 | 105*127 |
| GNRP88 | 64 | 80 | 70 | 88 | 1104A-44TG2 | ≤213 | 4 | 4.4 | 105*127 |
| GNRP103 | 80 | 100 | 88 | 110 | 1104C-44TAG2 | ≤210 | 6 | 5.99 | 100*127 |
| GNRP150 | 110 | 138 | 120 | 150 | 1106A-70TG1 | ≤205 | 6 | 5.99 | 100*127 |
| GNRP165 | 120 | 150 | 132 | 165 | 1106A-70TAG2 | ≤205 | 6 | 5.99 | 100*127 |
| GNRP225E | 165 | 206 | 180 | 225 | 1106A-70TAG4 | ≤220 | 6 | 8.7 | 117*136 |
| GNRP275E | 200 | 250 | 220 | 275 | 1506A-E88TAG3 | ≤223 | 6 | 8.7 | 117*136 |
| GNRP344E | 240 | 300 | 264 | 330 | 1506A-E88TAG5 | ≤201 | 6 | 14.6 | 137*165 |
| GNRP388E | 280 | 350 | 310 | 388 | 2206C-E13TAG2 | ≤198 | 6 | 14.6 | 137*165 |
| GNRP450E | 320 | 400 | 360 | 450 | 2206C-E13TAG3 | ≤201 | 6 | 14.6 | 137*165 |
| GNRP500E | 360 | 450 | 400 | 500 | 2506C-E15TAG1 | ≤216 | 6 | 15 | 137*171 |
| GNRP550E | 400 | 500 | 440 | 550 | 2506C-E15TAG2 | ≤211 | 6 | 15 | 137*171 |
| GNRP625E | 450 | 563 | 500 | 625 | 2806A-E18TAG1A | ≤196 | 6 | 18.13 | 145*183 |
| GNRP700E | 508 | 635 | 560 | 700 | 2806A-E18TAG2 | ≤203 | 6 | 18.13 | 145*183 |
| GNRP800 | 580 | 725 | 640 | 800 | 4006-23TAG2A | ≤199 | 6 | 22.921 | 160*190 |
| GNRP900 | 640 | 800 | 720 | 900 | 4006-23TAG3A | ≤200 | 6 | 22.921 | 160*190 |
| GNRP1000 | 720 | 900 | 800 | 1000 | 4008-TAG1A | ≤206 | 8 | 30.561 | 160*190 |
| GNRP1125 | 818 | 1022 | 900 | 1125 | 4008-TAG2A | ≤208 | 8 | 30.561 | 160*190 |
| GNRP1375 | 1000 | 1250 | 1100 | 1375 | 4012-46TWG2A | ≤212 | 12 | 45.482 | 160*190 |
Engine Features:
1. Genuine UK industrial diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon .
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
