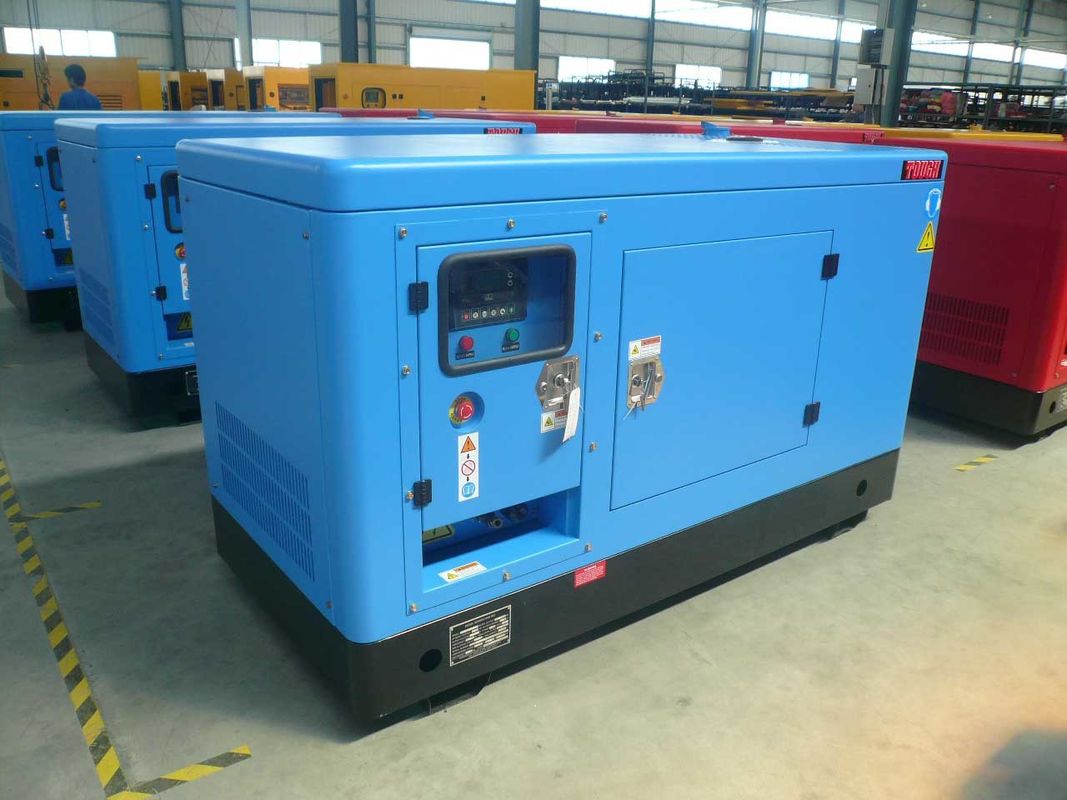

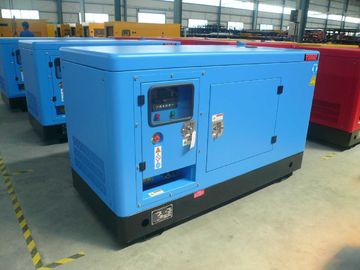

Large Image :  Silent 45kva Perkins Diesel Generator Set 1103A-33TG1 Engine Stable Performance

Product Details:

Place of Origin: China
Brand Name: Perkins
Certification: ISO9001:2008, CE
Model Number: GNRP
Engine: Perkins
Alternator: Stamford, Leroy somer ,Marathon,Engga
Control Panel: Smartgen, Deepsea,ComAp
Rated Power: 45kva
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz

Payment & Shipping Terms:

Price: Negotiable
Contact Now
Detailed Product Description

36kw silent 45kva perkins diesel generator set



perkins .jpg



Generator Diesel 40 kw specification





DIESEL

GENERATOR

SET

Diesel GenSet Model

GNRP45

Prime power (KW/KVA)

36/45

Standby power (KW/KVA)

40/50

Rated voltage(V)

230/400

Rated current (A)

64.8

Frequency(Hz)

50

Rated Rotary Speed (RPM)

1500

Power factor

0.8

Power supply mode

3 phase,4wire

Starting method

24 V DC



ENGINE

Diesel Engine

UK Brand

Model

1103A-33TG1

Engine prime power (KW/KVA)

53.8/67.25

Engine standby power(KW/KVA)

59.18/74

Cylinder Qty.

3

Fuel consumption.(g/ kw.h)

215

Bore(mm) *Stroke (mm)

105*127

Compression rate

14.5:1

Cooling liquid volume (L)

60

Displacement(L)

3.3

Lubricant capacity (L)

6.2(min)

Cooling method

Water cooled

Intake method

Turbocharged



ALTERNATOR

Alternator Features:

1. ENGGA,Stamford, Leroy Somer, Marathon

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof





Control Panel:

1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop

Optional:

1. Trailer type

2. Soundproof / water proof

3. ATS (automatic transfer switch)

4. Parallel system

5. Remote system



PMC System:

1. Standard 23 pitch windings avoid excessive neutral current

2. Permanent magnet generator system provides constant excitation under all condition

3. Optional accessories available for easy paralleling with mains or other generators

4. AVR auto voltage regulation, auto exciter, auto adjustment
