Soundproof Perkins Diesel Generator / 40kva Perkins Generator With CE Certified

I'm Online Chat Now

Soundproof Perkins Diesel Generator / 40kva Perkins Generator With CE Certified

Soundproof Perkins Diesel Generator / 40kva Perkins Generator With CE Certified
Soundproof Perkins Diesel Generator / 40kva Perkins Generator With CE Certified

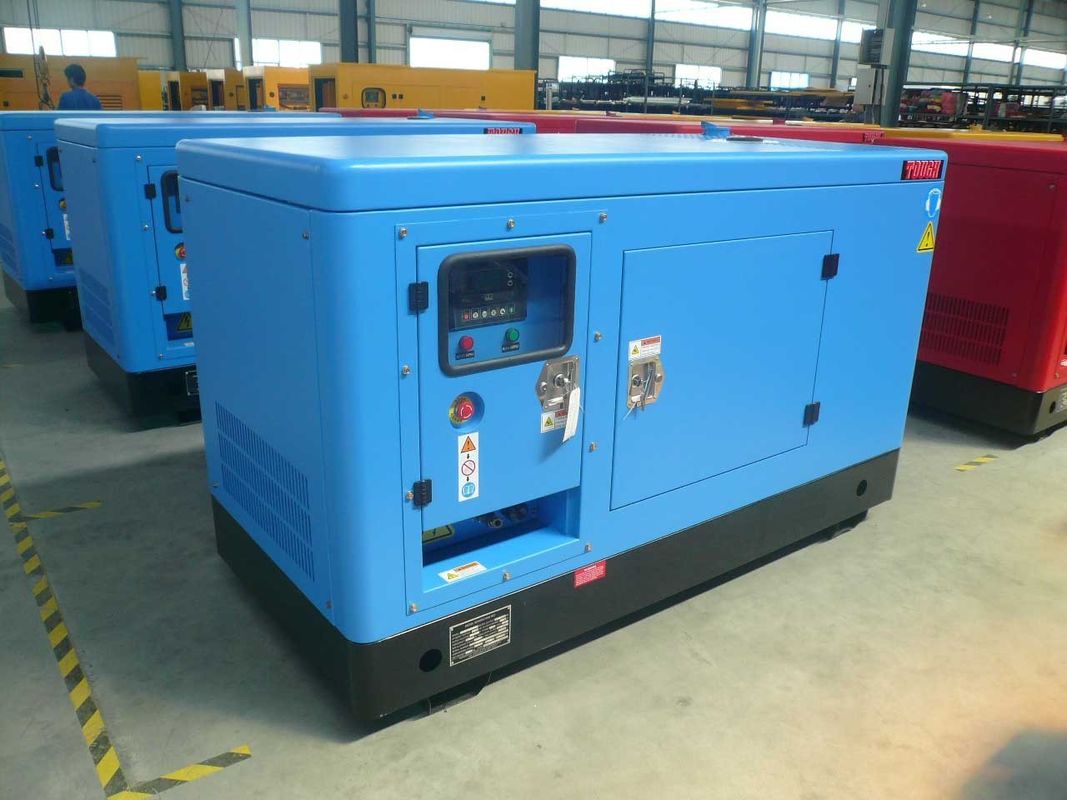

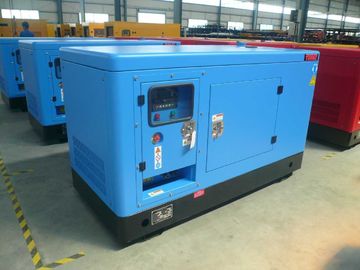

Large Image :  Soundproof Perkins Diesel Generator / 40kva Perkins Generator With CE Certified

Product Details:
Place of Origin: China
Brand Name: perkins
Certification: ISO9001:2008, CE
Engine: Perkins
Alternator: Stamford, Leroy somer ,Marathon,Engga
Control Panel: Smartgen, Deepsea,ComAp
Rated Power: 7kw to 1600kw
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz
Rated Voltage: 220V/380V, 230V/400V, 240V/415V
Payment & Shipping Terms:
Price: Negotiable
Detailed Product Description
High Light:

perkins power generator

,

silent diesel generator

Soundproof Perkins Diesel Generator / 40kva Perkins Generator With CE



1. Perkins Genuine diesel engine:1103A-33TG1
2. stamrof,leroy somer,marathon ac alternator
3. 24v DC start motor



Soundproof Perkins Diesel Generator , 40kva Perkins Generator With CE



Engine Features:

1. World most famous brand diesel engine: UK engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily



Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof



Control panel:
1
) The generator control panel is manufactured locally by
2) The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)
i) With EPA certification



MODEL GNRP
Powered by UK Engine
Standby Power (50HZ) 35kw/44kva
Prime Power (50HZ) 32kw/40kva
Engine Model Original Uk 1103A-33TG1
Engine Prime Power (50HZ) 42.5kva
Engine Standby Power (50HZ) 45kva
Speed 1500rpm
Cylinders 4L
Fuel Consumption 10.7L/H
Displacement (L) 3.3
Compression Ratio 17.25:1
Bore x Stroke 105*127mm
Lube Volume (L) 7.9
Coolant Volume (L) 10.2
Cooling Method Water - cooled
Starting Method 24V DC electrical start
Alternator Brand Stamford,LeroySomer, Marathon,Engga
Voltage 220/380V
Electric Current 65A
Power Factor 0.8
Phase 3-phases
Brush/Brushless Brushless
Insulation Grade H
Protection Grade IP23
G.W/N.W 950 KGS
Overall Size 2300*1000*1400MM
20FT 12 PCS
OPTIONAL ATS(auto transfer switch)
  Auto Battery Charger
  AMF(auto mains failure)



Soundproof/Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 12 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA



Optional:

1. Trailer type

2. Soundproof / water proof

3. ATS (automatic transfer switch)

4. Parallel system

5. Remote system



PMC System:

1. Standard 23 pitch windings avoid excessive neutral current

2. Permanent magnet generator system provides constant excitation under all condition

3. Optional accessories available for easy paralleling with mains or other generators

4. AVR auto voltage regulation, auto exciter, auto adjustment
