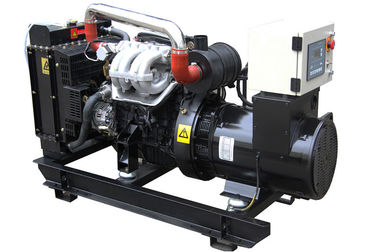

12kw 24v Gas Powered Generator , Cummins Generator Set 3 Phases 4 Lines

12kw 24v Gas Powered Generator , Cummins Generator Set 3 Phases 4 Lines
12kw 24v Gas Powered Generator , Cummins Generator Set 3 Phases 4 Lines

Large Image :  12kw 24v Gas Powered Generator , Cummins Generator Set 3 Phases 4 Lines

Product Details:
Place of Origin: China
Brand Name: Genor
Certification: ISO9001:2008, CE
Payment & Shipping Terms:
Price: Negotiable
Detailed Product Description
Engine: Cummins Control Panel: Smartgen, Deepsea, ComAp
Rated Power: 15kva Rated RPM: 1500rpm Or 1800rpm
Frequency: 50Hz Or 60Hz Rated Voltage: 120V/208V, 220V/380V, 240V/415V
High Light:

natural gas powered generator

,

biogas generator kit

12kw 24v Natural Gas Generator , 15 kva Gas Generator With Cummins Gas Engine



1. Cummins Gas engine with stamford alternator

2. Water cooled

3. Electronic Governor

4. Spark Plug: USA Altronic

5. 24V DC Start



Specifications:



Gas genset data

Genset model

GRPG15

Prime power (kW/KVA)

12/15

Output Voltage (V)

400V, 3 Phases 4 Lines

Power factor

0.8 lagging

Frequency (Hz)

50

Rated speed (RPM)

1500

Open type Genset

Overall Dimension (mm)

1500x710x885

Soundproof type

Genset Dimension (mm)

2000x910x1125

Net weight without canopy(kg)

700

Gas Engine Data

Type

4 stroke, water-cooling, dry cylinder liner, electronic control

ignition system, pre-mixed perfect mixed burning

Cylinders& Arrangement

4L

BoreXStroke(mm)

102X120

Displacement(L)

3.92

Compression ratio

11.5:1

Aspiration

Natural

Cooling Method

Radiator fan water cooling

Governor type

(speed regulating type)

Electronic governing

Starting method

Electric, 24 V motor

The lowest

gas consumption(m3/kw.h)

0.6

Idling speed(r/min)

700

Oil recommended

SAE 15W-40 CF4 or above

Oil consumption

≤1.0g/kW.h

Alternator Data

Brand

France Leroy Somer

Model

LSA42.3L9

Rated power

48kW / 3 phase

Rated Voltage (V):

380~480 (±0.5%)(AC)

Type

3 phase/4 wire, brushless, automatic voltageregulator, drip proof,

protected type.

Frequency (Hz)

50

Efficiency:

89.9%

Voltage regulation

± 0.5 %(adjustable)

Insulation class:

Class H

Protection class:

IP 23

cooling method:

wind-cooling, self-heat-rejection

Voltage regulating mode

Automatic voltage regulator

Compliant with

international standards:

IEC 60034-1, NEMA MG1.22, ISO 8528/3,

CSA, UL 1446, UL 1004B on request, marine regulations, etc

Main Performance Advantages:

1. Long life span. gas engine is designed and developed through the cooperation between China Cummins

. Based on Cummins durable engine body, the gas engine life span reaches 30 years.

2. Long designed overhaul term: 25000 ~ 30000 hours.

3. Total cogeneration efficiency is over 85%, higher than other China brands by 10%.

4. Four air valves designing for each cylinder. Sufficient air intaking and exhausting to realize maximum power output.

5. Easy access to spare parts. Based on Cummins engine body, almost 85% parts are made in Cummins factory. it's very convenient to find any parts at any time and anywhere.

6. Electronic Air/Gas mixer. The mixer guarantees optimum air-fuel ratio, improves thermal efficiency, reduces NOx emission. Unique air-fuel ratio adjusting system suits 30% ~ 90% methane density.

7. Ignition system. Altronic ignition system imported from USA ensures high-precision ignition, which enhances genset life span and stability.



Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof



Digital Control panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown



Standard Scope of Supply

1. Brand new Gas engine .

2. Brand new Leroy Somer AC brushless alternator IP23

3. Smartgen Control Panel.

4. Ignition system,including: ECU, Spark plug, High-voltage electricity wire;Ignition switch,Ignition coil;Wires.

5. Electronic speed regulator,including controller and actuator.

6. Solenoid valve

7. Flame arrester.

8. Hand valve

9. Zero pressure valves

10. Mixer.

11. Air filter.

12. Silencer

13. Remote radiator

14. Air circuit breaker (For the protecting purpose of overload, over current, etc)

15. Rubber anti-vibration pad between engine, alternator, control panel and base frame

16. Standard accessories, anti-vibration pad, exhaust pipe, maintenance tools kit, filters

17. Maintenance Operating manual, Quality certificate, Gen-sets ex-factory test report
