Product Details:

Place of Origin: China
Brand Name: GENOR
Certification: ISO9001:2008, CE
Model Number: GNRDM5
Product name: Marine engine generator
Engine brand: Genor
Alternator: Brushless ,AVR self-regulated
Rated Power: 5kw
Rated RPM: 1500rpm or 1800rpm
Start system: Electric auto start
Rated Voltage: 120V , 220V , single phase

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Package / Plywood case
Delivery Time: Within 15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 200 sets Per Month
Contact Now
Detailed Product Description

3kw 4kw yacht silent marine diesel generator 5kw with water cooled engine remote control



Advantage:

  1. Low noise running within 60dBA at 7meters.
  2. Special structure design, perfect portability
  3. Reliable dynamic performance
  4. Easy installation and connection.
  5. Low fuel consumption
  6. Compact and attractive aesthetic outlooking.
  7. 15 months or 1200 running hours warranty
  8. ISO and CE certificated.

The Marine Diesel Generator is widely used in excursion boats, yachts, fishing boats and other projects.



the 5kw marine generator is designed with unique water cooled structure.The engine and muffler are cooled by externally circulated sea water or river water, reduce temperature in the compartment of the yacht.

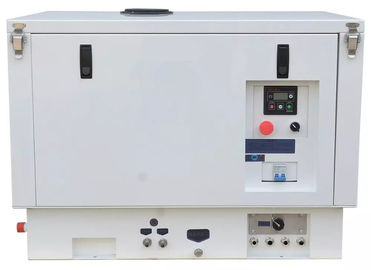

Remote control panel with cable, complete protection, alarm and shutdown to high water temperature, low oil pressure, low/over speed, low/high AC/DC voltage, low/high frequency, etc.



Specification :



Generator Set Model GNRM5
Rated power(KW) 5 / 6
Rated voltage(V) 115/230 120/240
Rated frequency(Hz) 50 /  60
Waveform distortion Sinewave, distortion ≤5%
Noise level(dB@7m) w/100% load 60
Overall dimension ≤885x625x650
(L×W×H)(mm)
Overall weight(kg) ≤320
Fuel tank capacity(L) Share fuel tank with marine vehicle
  Type Three cylinder, direct injection, four stroke,water cooled
Bore×Stroke(mm) 75×84
Rotation speed(r/m) 1500 /1800
Governor system Mechanical
Starting mode 12V DC electric start
Filter system Water cooled air filter, fuel filter, oil filter
Cooling type External cooling by river water or sea water
Heat exchanger(L) 13
Muffler Sea Water-cooled
Fuel consumption(g/kw.h) ≤210
Oil capacity(L) 4
Alternator Rated power(KW) 5 / 6
Excitation mode Brushless, self-excitation
Voltage regulation Auto regulation
Number of phase Single phase, three wire
Number of pole 4
Insulation grade(stator/rotor) H/H
Voltage regulation range w/o load ≥95%~105%
Steady-state voltage deviation Less ±1%
Interference factor TIF<50,THF<2%
IP grade IP23
Control panel Control on power output Remote cable electric switching ABB circuit breaker
Installation Remote cable connected
Auto function Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm
Parameter display AC voltage, frequency, running hour, charging voltage
