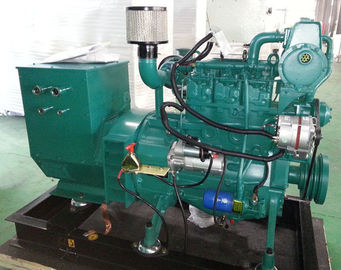

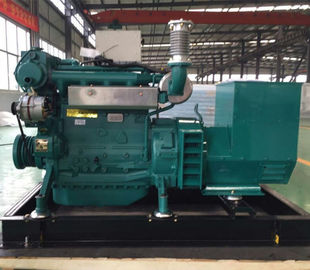

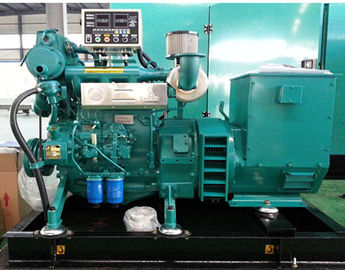

20kw Silent marine diesel generator 10kw for boat with sea water pump class approval certificate

I'm Online Chat Now

20kw Silent marine diesel generator 10kw for boat with sea water pump class approval certificate

China 20kw Silent marine diesel generator 10kw for boat with sea water pump class approval certificate supplier
20kw Silent marine diesel generator 10kw for boat with sea water pump class approval certificate supplier 20kw Silent marine diesel generator 10kw for boat with sea water pump class approval certificate supplier 20kw Silent marine diesel generator 10kw for boat with sea water pump class approval certificate supplier

Large Image :  20kw Silent marine diesel generator 10kw for boat with sea water pump class approval certificate

Product Details:

Place of Origin: China
Brand Name: weichai- deutz
Certification: ISO9001:2008, CE
Model Number: GNRDM20
Product name: Marine Generating sets
Engine brand: Weichai-deutz
Alternator: 100% Copper ,Brushless ,AVR self-regulated
Rated Power: 10kw
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz
Rated Voltage: 120V , 220V, 380V, 440V

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Package / Plywood case
Delivery Time: Within 15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 200 sets Per Month
Contact Now
Detailed Product Description
Cooling System: Sea Water Cooling With Heat Exchanger

20kw Silent marine diesel generator 10kw for boat with sea water pump class approval certificate





1.Reliable dynamic performance

2.Compact structure

3.Long life

4.Low fuel consumption

5.Low noise

6.Low emissions

7.Adaptability to environmental change

8.Ability to work under the harshest conditions





Standard Configure of marine diesel generator:



1) High Performance Marine Engine



6) MCCB, Muffler, Air filter

2) Brushless ,AVR self-regulated Alternator (IP23)



7) 2*12V Heavy duty start batteries

3) Steel base frame with shock absorber



8) Battery cable & Atteched accessories

4) Standard control box



9) Manual books and parts books
5) Sea water cooling heat exchanger

10) Optional digital monitor







The Marine Diesel Generator is widely used in inland and coastal waters, offshore market carriers,

fishing boats,

yatch,Ferry boat ,ships and other projects.





Marine Diesel Generator Set



Weichai Deutz 226B Series Diesel Engine
(400/230V/120C, 50Hz/60Hz, 3 P 4W) (Electrical Starting, Dual-circulate water-cool)
Genset Model

Rated
Power



Engine Model Max*
output
Rated Speed

Governing

Method

(KW) Deutz (KW) (rpm)
GNRDM-12 12 D226B-3C 22 1500 Mechanical
GNRDM-16 16 D226B-3C 22 1500 Mechanical
GNRDM-20 20 D226B-3CD 30 1500 Mechanical
GNRDM-24 24 D226B-3CD 33 1500 Mechanical
GNRDM-30 30 TD226B-3CD 44 1500 Mechanical
GNRDM-40 40 TD226B-4CD 66 1500 Mechanical
GNRDM-50 50 TD226B-4CD 66 1500 Mechanical
GNRDM-64 64 TD226B-6CD 99 1500 Mechanical
GNRDM-75 75 TD226B-6CD 99 1500 Mechanical
GNRDM-90 90 TBD226B-6CD 132 1500 Mechanical
GNRDM-100 100 TBD226B-6CD 132 1500 Mechanical
GNRDM-120 120 TBD226B-6CD5 145 1500 Electrical





Protective function of operation


1) Low oil pressure alarm and shutdown


2) High temperature alarm and shutdown


3) Over speed alarm and shutdown
