CNC ESP air filter oil mist collector purification fine dust particles 1200m3/h air volume extraction

I'm Online Chat Now

CNC ESP air filter oil mist collector purification fine dust particles 1200m3/h air volume extraction

China CNC ESP air filter oil mist collector purification fine dust particles 1200m3/h air volume extraction supplier
CNC ESP air filter oil mist collector purification fine dust particles 1200m3/h air volume extraction supplier CNC ESP air filter oil mist collector purification fine dust particles 1200m3/h air volume extraction supplier CNC ESP air filter oil mist collector purification fine dust particles 1200m3/h air volume extraction supplier CNC ESP air filter oil mist collector purification fine dust particles 1200m3/h air volume extraction supplier

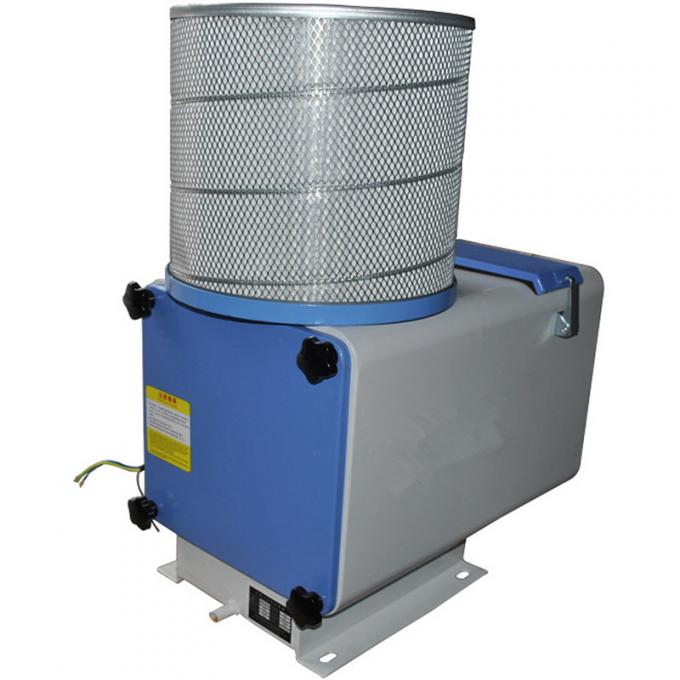

Large Image :  CNC ESP air filter oil mist collector purification fine dust particles 1200m3/h air volume extraction

Product Details:

Place of Origin: China
Brand Name: GENOR POWER
Certification: ISO9001:2008, CE ,CCC
Model Number: GFT750

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package / Plywood case
Delivery Time: Within 7 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 200/sets per Month
Contact Now
Detailed Product Description
Product Name: Oil Mist Seperator Power: 0.75kw
Filter Type: HEPA Filter Material: Corrosion Protection Shell
Voltage: 220V , 380V, 400V ,415V,480V Frequency: 50Hz Or 60Hz
Warranty: 24 Months Application: Washing Machines

CNC ESP air filter oil mist collector purification fine dust particles 1200m3/h air volume extraction


The oil mist collector is a collection and purification device . It is also known as oil mist extractor, efficiently remove oil mist, coolant mist, fume and steam in machine and manufacturing facilities to ensure a clean and safe work environment .
It uses centrifugal separation and high-efficiency filtration technology.
The oil mist is drawn into the unit , it passes through the split cone and many stage filtration devices to filter out stray solid particles . Strong Centrifugal force pushes oil to the unit's outer case where it drains back to the machine for re-use or collection and clean air is returned to the workshop through the top of the unit.
After the oil mist is treated by the system, it is effectively collected and purified, and the collection and purification efficiency is as high as 98% or more.

How Oil Mist Removal Works

1. Oil mist is removed at source
2. Oil mist is removed from the air by centrifugal impaction
3. Dust ,smoke and fume can be removed
4. Clean oil is returned to machine
5. Clean air is returned to workplace

Why should be installing oil mist purifier ?

1.Oil mist is hazardous to the human respiratory system and skin health .
2.Oil mist causes slippery floors , it also will lead to failure of the machine's circuit system and control system
3. Oil mist can lead to coating of ventilation pipes and workplace having the potential fire risk.
4. Reduce energy and heating costs by recycling clean air back into the factory.
5. The oil mist purifier can recycle the cutting fluid of the machine tool and reduce its loss


ModelGFT500GFT750GFT1500GFT2200
Voltage 50 / 60Hz , 3phase , 120V, 220V, 380V,400V ,415V
Power(kw)0.50.751.52.2
Air Volume(m3/h)50080012001500
Air pressure(pa)1100120018001800
Noise(Db)58656868
Capture efficiency99.97%
Suction diameter(mm)Φ98Φ123Φ148Φ198
Dimensions(L*W*H)mm650*390*500710*430*530860*450*550910*530*640


Application :
The oil mist collector is a collection and purification device designed for various types of processing machine tools.
It is widely used in CNC lathes, washing machines, grinding machines. hobbing, milling and edging machine tools, vacuum pumps, spray test chambers, electric discharge machining, spark eroding; turning; food spraying ,industrial washing processes, CNC machining centers and other processing equipment
