Factory Electirc Dust Steam Oil Mist Collector Filtration Air Purification Centrifugal fume smoke extraction

I'm Online Chat Now

Factory Electirc Dust Steam Oil Mist Collector Filtration Air Purification Centrifugal fume smoke extraction

China Factory Electirc Dust Steam Oil Mist Collector Filtration Air Purification Centrifugal fume smoke extraction supplier
Factory Electirc Dust Steam Oil Mist Collector Filtration Air Purification Centrifugal fume smoke extraction supplier Factory Electirc Dust Steam Oil Mist Collector Filtration Air Purification Centrifugal fume smoke extraction supplier Factory Electirc Dust Steam Oil Mist Collector Filtration Air Purification Centrifugal fume smoke extraction supplier Factory Electirc Dust Steam Oil Mist Collector Filtration Air Purification Centrifugal fume smoke extraction supplier

Large Image :  Factory Electirc Dust Steam Oil Mist Collector Filtration Air Purification Centrifugal fume smoke extraction

Product Details:

Place of Origin: China
Brand Name: GENOR POWER
Certification: ISO9001:2008, CE ,CCC
Model Number: GFT750

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package / Plywood case
Delivery Time: Within 7 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 200/sets per Month
Contact Now
Detailed Product Description
Product Name: Oil Mist Extraction Power: 0.75kw 1.5kw
Filter Type: ESP HEPA Filter Material: Corrosion Protection Shell
Voltage: 220V , 380V, 400V ,415V, 480V Frequency: 50Hz Or 60Hz
Application: CNC Machinese , Vacuum Pump Type: Esp Removal

Factory Electirc Dust Steam Oil Mist Collector Filtration Air Purification Centrifugal fume smoke extraction

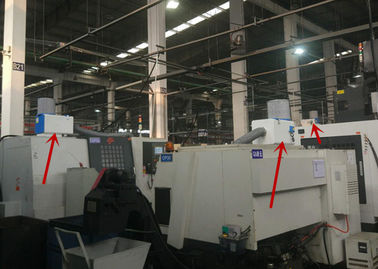

     The oil mist collector is a purification device  and widely used in CNC lathes, washing machines, cylindrical grinding machines, internal cylindrical grinding machines, and surface grinding machines. hobbing, milling and edging machine tools, vacuum pumps, spray test chambers, electric discharge machining, CNC machined machining centers and other processing equipment produced in the oil mist, with high purification efficiency, low noise, easy use .

It uses centrifugal separation and high-efficiency filtration technology.

      After the exhaust gas is treated by the oil mist purification system, the oil mist exhaust gas is effectively collected and purified, and the collection and purification efficiency is as high as 99% or more.



Model GFT500 GFT750 GFT1500 GFT2200
Voltage 50 / 60Hz , 3phase , 120V, 220V, 380V,400V ,415V
Power(kw) 0.5 0.75 1.5 2.2
Air Volume(m3/h) 500 800 1200 1500
Air pressure(pa) 1100 1200 1800 1800
Noise(Db) 58 65 68 68
Capture efficiency 99.97%
Suction diameter(mm) Φ98 Φ123 Φ148 Φ198
Dimensions(L*W*H)mm 650*390*500 710*430*530 860*450*550 910*530*640



How Oil Mist Collector Works



1. Oil mist is removed at source

2. Oil mist is removed from the air by centrifugal impaction

3. Dust ,smoke and fume can be removed

4. Clean oil is returned to machine

5. Clean air is returned to workplace



Advantages of installing oil mist collector


1.The oil mist produced by the machines has adverse effects on the human body's respiratory system and skin health, and will reduce the work efficiency of employees , long-term work in this environment, the probability of occupational disease is high .
2. If oil mist diffuse in the air for a long time , it will lead to failure of the machine's circuit system and control system, increase maintenance costs;
3. The oil mist purifier can recycle the cutting fluid of the machine tool and reduce its loss.















Factory Electirc Dust Steam Oil Mist Collector Filtration Air Purification Centrifugal fume smoke extraction
