Home ProductsDiesel Welder Generator

500amp 60% Duty Cycle Diesel Welder Generator For Air Plasma Cutting Engine Water Cooled 4 Storke

I'm Online Chat Now

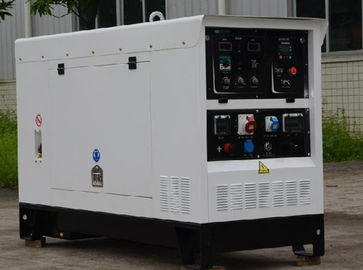

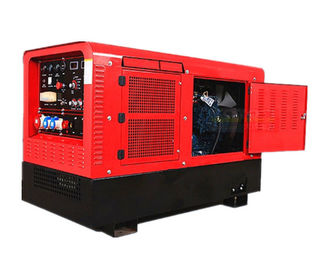

500amp 60% Duty Cycle Diesel Welder Generator For Air Plasma Cutting Engine Water Cooled 4 Storke

China 500amp 60% Duty Cycle Diesel Welder Generator For Air Plasma Cutting Engine Water Cooled 4 Storke supplier
500amp 60% Duty Cycle Diesel Welder Generator For Air Plasma Cutting Engine Water Cooled 4 Storke supplier 500amp 60% Duty Cycle Diesel Welder Generator For Air Plasma Cutting Engine Water Cooled 4 Storke supplier 500amp 60% Duty Cycle Diesel Welder Generator For Air Plasma Cutting Engine Water Cooled 4 Storke supplier

Large Image :  500amp 60% Duty Cycle Diesel Welder Generator For Air Plasma Cutting Engine Water Cooled 4 Storke

Product Details:

Place of Origin: China
Brand Name: Genor Power
Certification: ISO9001:2008, CE, CCC
Model Number: GNAW450

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Package / Plywood case
Delivery Time: Within 20 days
Payment Terms: T/T ,L/C ,Western Union, MoneyGram, D/A
Supply Ability: 200/sets per Month
Contact Now
Detailed Product Description
Product Name: Diesel Welding Generator Machine Engine Type: 4 Strok ,direct Injection ,Diesel Engine
Welding Current: 45 - 430 Ampere Cooling System: Water Cooled
Excitation Type: AVR Brushless Self Exciting Engine RPM: 1500rpm To 1800rpm
Frequency: 50Hz Or 60Hz Protection Class: IP23
Start System: Electric Start

500amp 60% duty cycle Diesel Welder Generator for Air plasma cutting engine water cooled 4 Storke



The 500amp diesel welder generator is equipped with heavy duty diesel engine driven welding machines with MMA/TIG/FCAW function, and Strong auxiliary power:30 KW output for three-phase, 7KW output for single-phase.





Engine Features:



1. Genuine industrial diesel engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily



The diesel welder generator adopt advanced inverter soft switch technology, PWM control technology, and negative feedback control technology , enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.





Advantage:

1. Electric Starter ensures easy starting

2. Separate welding range with fine adjustment in each range

3. Great Welding Performance

4. Auxiliary power while welding

5. 500 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding

6. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.



Welding Processes MMA TIG FCAW
Open Circuit Voltage (V) 75 75 75
Current Range (A) 30-500 30-500 30-500
Welding Current (A) 387 430 500 387 430 500 387 430 500
Welding Voltage (V) 35.5 37.2 40 25.5 27.2 30 33.3 35.5 39
Duty Cycle 100% 80% 60% 100% 80% 60% 100% 80% 60%
External Characteristic Curve Drop Characteristic Drop Characteristic Flat Characteristic
Generator output
Power 20Kw
Excitation Type AVR Brushless Excitation
Frequency 50Hz  or  60Hz
Phase Three Phase Single Phase
Output Voltage/Power AC 400V/20Kw AC 230V/6Kw
Engine
Engine type  4 stroke , 4cylinder , direct injection , heavy duty diesel engine
Fuel Diesel
Rated Power 26Kw
Rated Speed 1500 RPM
Low Temperature Pre-heated Start
Warning Type Water Temperature /Oil Pressure/Battery Voltage
Fuel Capacity 60L
Cooling Method Water-cooled
Fuel Consumption 5.6L/hr
Complete appliance
Weight 710kg
Dimension(mm) 1500×800×1100
Protection Class IP23




    500amp 60% Duty Cycle Diesel Welder Generator For Air Plasma Cutting Engine Water Cooled 4 Storke500amp 60% Duty Cycle Diesel Welder Generator For Air Plasma Cutting Engine Water Cooled 4 Storke

   500amp 60% Duty Cycle Diesel Welder Generator For Air Plasma Cutting Engine Water Cooled 4 Storke

500amp 60% Duty Cycle Diesel Welder Generator For Air Plasma Cutting Engine Water Cooled 4 Storke
