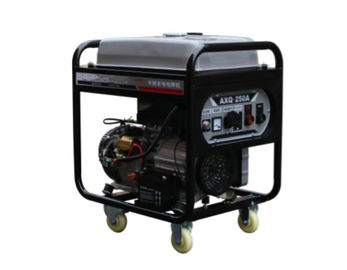

186FAE Portable Dc 190A Diesel Welder Generator Machine 2KW Air Cooled Engine Power

I'm Online Chat Now

186FAE Portable Dc 190A Diesel Welder Generator Machine 2KW Air Cooled Engine Power

China 186FAE Portable Dc 190A Diesel Welder Generator Machine 2KW Air Cooled Engine Power supplier
186FAE Portable Dc 190A Diesel Welder Generator Machine 2KW Air Cooled Engine Power supplier 186FAE Portable Dc 190A Diesel Welder Generator Machine 2KW Air Cooled Engine Power supplier

Large Image :  186FAE Portable Dc 190A Diesel Welder Generator Machine 2KW Air Cooled Engine Power

Product Details:

Place of Origin: China
Brand Name: GENOR POWER
Certification: ISO9001:2008, CE, CCC
Model Number: GNAW200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Package / Plywood case
Delivery Time: Within 15 days
Payment Terms: T/T ,L/C ,Western Union, MoneyGram, D/A
Supply Ability: 300/sets per Month
Contact Now
Detailed Product Description
Product Name: Diesel Generator Welding Machine Engine Type: 4 Stroke ,Air Cooled Diesel Engine
Welding Current: 20 To 200A Cooling System: Air Cooling
Alternator Type: Rare Earth Permanent Magnet Engine RPM: 1500rpm To 1800rpm
Frequency: 50Hz Or 60Hz Protection Class: IP23
Start System: Electric Auto Start Warranty: 12 Months

186FAE portable dc 190A diesel welder generator machine 2KW air cooled engine power





The 190A diesel engine welder can use Electrode Diameter:1.6-4.0(mm) ,  Arc burning steady, good weld-seam shaping, ease of arcing, less spatter, low voice, high efficiency.



Strong output auxiliary power source is suitable for lighting, polishing, etc site operation; Equipped with primary excitation circuit to avoid loss of magnetic excitation



-Adopt intermediate frequency three-phase rectifier, has the advantages of smoothcurrent, good dynamic characteristics,fast response speed (1-3ms). It can meet different welding requirements,and is suitable for all kinds of acid electrode, basic electrode and argon arc welding works.



-Adopt rare earth permanent magnet technology, has the advantages of smaller size, lighter weight, low iron loss and higher efficiency(efficiency up to 90%).









GENERATOR



Model GNAW160
Frequency(HZ) 50 60
Rated.AC voltage(V) 230 240
Rated output(KVA) 3 3.6
Rated speed(rpm) 3000 3600



WELDER




Welding no-load voltage(V) 90V
Working voltage(V) 20-28
Range of current(A) 20 - 250
Welding efficiency 60%
Power factor (cosΦ ) 1
Phase 1



ENGINE


Engine type Single-cylinder, vertical, 4-stroke air-cooled diesel engine
Bore× stroke(mm) 92×75
Displacement capacity(cc) 496cc
Fuel 0# or -10# light diesel fuel
Lubrication oil volume(L) 1.65
Combustion system Direct lnjection
STANDARD FEATURES Voltmeter yes
AC Output Socket 2
AC circuit breaker yes
Oil warning light yes
Oil alert yes





186FAE Portable Dc 190A Diesel Welder Generator Machine 2KW Air Cooled Engine Power

186FAE Portable Dc 190A Diesel Welder Generator Machine 2KW Air Cooled Engine Power

186FAE Portable Dc 190A Diesel Welder Generator Machine 2KW Air Cooled Engine Power
