Product Details:
Payment & Shipping Terms:
|
| Product Name: | Diesel Engine Welder | Engine Type: | 4 Strok ,direct Injection ,Diesel Engine |
|---|---|---|---|
| Welding Current: | 700Amps | Cooling System: | Water Cooled |
| Excitation Type: | AVR Brushless Excitation | Engine RPM: | 1500rpm |
| Frequency: | 50Hz | Protection Class: | IP23 |
| Start System: | Electric Start | ||
| High Light: | genset welder generators,portable welder generator |
||

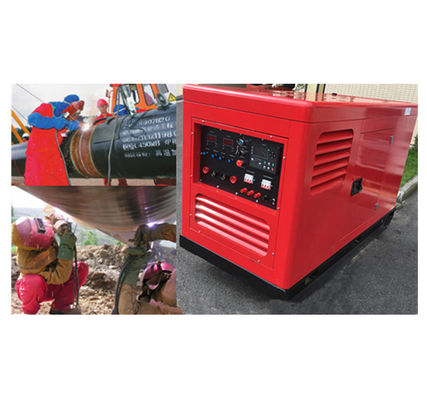

700Amps MMA / MIG / TIG / GOUGING Diesel Welder Genrator Engine Driven 72V DC Voltage
The diesel engine driven welder is composed of perkins engine driven welding machines with MMA/TIG/FCAW function, and Strong auxiliary power: 20 KW output for three-phase, 7KW output for single-phase .
Advange:
1. Perkins Diesel Engine with Electric Starter ensures easy starting
2. Separate welding range with fine adjustment in each range
3. Great Welding Performance
4. Auxiliary power while welding
5. 500 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding
6. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.
| Welding Processes | MMA | TIG | FCAW | ||||||
| Open Circuit Voltage (V) | 72 | 72 | 72 | ||||||
| Current Range (A) | 50-700 | 50-700 | 50-700 | ||||||
| Duty Cycle | 100% | 80% | 60% | 100% | 80% | 60% | 100% | 80% | 60% |
| External Characteristic Curve | Drop Characteristic | Drop Characteristic | Flat Characteristic | ||||||
| Generator output | |||||||||
| Power | 20Kw | ||||||||
| Excitation Type | AVR Brushless Excitation | ||||||||
| Frequency | 50Hz or 60Hz | ||||||||
| Phase | Three Phase | Single Phase | |||||||
| Output Voltage/Power | AC 400V/20Kw | AC 230V/6Kw | |||||||
| Engine | |||||||||
| Engine type | 4 stroke , direct injection , heavy duty diesel engine | ||||||||
| Fuel | Diesel | ||||||||
| Rated Power | 49Kw | ||||||||
| Rated Speed | 1500 RPM | ||||||||
| Low Temperature | Pre-heated Start | ||||||||
| Warning Type | Water Temperature /Oil Pressure/Battery Voltage | ||||||||
| Fuel Capacity | 60L | ||||||||
| Cooling Method | Water-cooled | ||||||||
| Fuel Consumption | 5.6L/hr | ||||||||
| Complete appliance | |||||||||
| 910kg | |||||||||
| Dimension(mm) | 1500×800×1100 | ||||||||
| Protection Class | IP23 |
||||||||
