Product Details:
Payment & Shipping Terms:
|
| Alternator: | Brushless | Control Panel: | Smartgen 6120 |
|---|---|---|---|
| Rated Power: | 25kw | Rated RPM: | 1500rpm |
| Frequency: | 50Hz | Rated Voltage: | 220V/380V |
| High Light: | 30kva 25kw Diesel Generator,25kw Diesel Generator,220V Genset Diesel Generator |
||

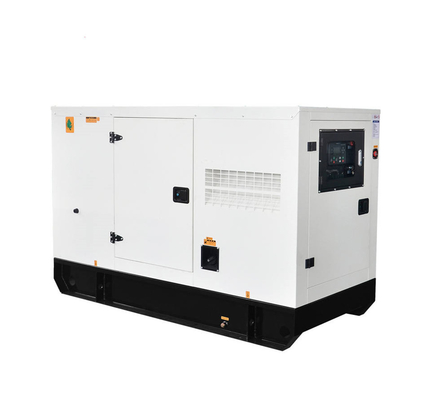

Super Silent Power 35kva 30kva 25kw Diesel Generator With Fawde 4DW92-35D Engine
Advantage of FAWDE Diesel Generator
l Special structure design, perfect portability
l Reliable dynamic performance
l Easy installation and connection.
l Low noise running within 60dBA at 7meters.
l Low fuel consumption .
l Compact and attractive aesthetic outlooking.
l 15 months or 1500 running hours warranty, whichever comes first.
l ISO and CE certificated.
|
FAWD Engine Data |
|
|
Engine Model |
4DW92-35D |
|
Number of Cylinders |
4 |
|
Aspiration |
Natural |
|
Bore×Stroke |
105mm x115mm |
|
Displacement |
2.2L |
|
Prime Power/Speed |
26KW / 1500rpm |
|
Standby Power/Speed |
29KW / 1500rpm |
|
Speed Governor |
Mechanical |
|
Cooling System |
Forced water cooling cycle |
|
Alternator Data |
|
|
Optional brands |
Stamford / Leroy somer |
|
Prime power |
25KVA |
|
Frequency/speed |
50Hz/1500rpm |
|
Exciter type |
Brushless, Self-excited |
|
Power factor |
0.8 |
|
Voltage adjust range |
≥5% |
|
Voltage regulation NL-FL |
≤±1% |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
| Control Panel | |
| Optional brands | Deespea/SmartGen/ComAp |
