Product Details:
Payment & Shipping Terms:
|
| Product Name: | Natual Gas Powered Generator | Engine Brand: | Heavy Duty Gas Engine |
|---|---|---|---|
| Alternator: | Brushless Avr | Starting Method: | Electric Start |
| Cooling System: | Water Cooled | Frequency: | 50Hz Or 60Hz |
| Voltage: | 120V ,220V/380V, 240V/415V | Protection Class: | IP23 |
| Output Power: | 300kw | ||
| High Light: | natural gas powered generator,natural gas fired generator |
||

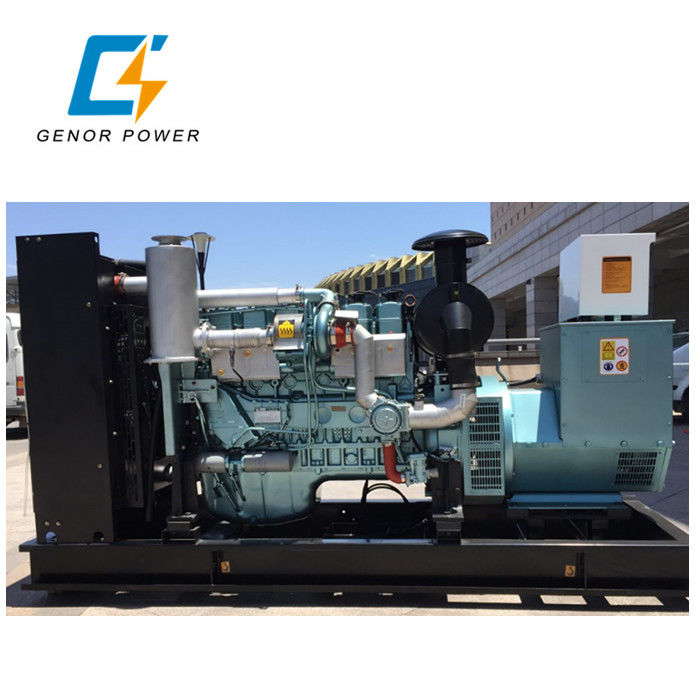

Industrial Power electric 200kw natural gas generator russia altronic ignition synchronization grid
Main Performance Advantages:
1. Long life span. gas engine is designed and developed through thedurable engine body, the gas engine life span reaches 30 years.
2. Long designed overhaul term: 25000 ~ 30000 hours.
3. Total cogeneration efficiency is over 85%, higher than other China brands by 10%.
4. Four air valves designing for each cylinder. Sufficient air intaking and exhausting to realize maximum power output.
5. Electronic Air/Gas mixer. The mixer guarantees optimum air-fuel ratio, improves thermal efficiency, reduces NOx emission. Unique air-fuel ratio adjusting system suits 30% ~ 90% methane density.
6. Ignition system. Altronic ignition system imported from USA ensures high-precision ignition, which enhances genset life span and stability.
| Genset Model | Prime Power | Standby Power | Cylinder No. | Dimension (L×B×H)mm | ||
| KW | KVA | KW | KVA | |||
| GNPG28 | 20 | 25 | 22 | 27.5 | 4 | 2100*730*1575 |
| GNPG38 | 27 | 34 | 30 | 38 | 4 | 1800*880*1260 |
| GNPG41 | 30 | 37.5 | 33 | 41 | 4 | 2100*730*1670 |
| GNPG55 | 40 | 50 | 44 | 55 | 4 | 2100*880*1450 |
| GNPG78 | 56 | 70 | 62.4 | 78 | 4 | 2100*730*1670 |
| GNPG104 | 75 | 94 | 83 | 104 | 6 | 2490*830*1770 |
| GNPG138 | 100 | 125 | 110 | 137.5 | 6 | 2490*830*1770 |
| GNPG165 | 120 | 150 | 132 | 165 | 6 | 2680*860*1730 |
| GNPG200 | 145 | 182 | 160 | 200 | 6 | 2680*860*1730 |
| GNPG220 | 160 | 200 | 176 | 220 | 6 | 2680*860*1730 |
| GNPG275 | 200 | 250 | 220 | 275 | 6 | 2800*1090*1715 |
| GNPG308 | 224 | 280 | 246 | 308 | 6 | 2930*1100*1650 |
| GNPG344 | 250 | 312 | 275 | 344 | 6 | 2930*1100*1650 |
| GNPG413 | 300 | 375 | 330 | 413 | 8 | 3485*1155*1640 |
| GNPG495 | 360 | 450 | 396 | 495 | 8 | 3600*1355*1910 |
| GNPG550 | 400 | 500 | 440 | 550 | 8 | 3600*1355*1910 |
| GNPG605 | 440 | 550 | 484 | 605 | 8 | 3600*1355*1910 |
| GNPG688 | 500 | 625 | 550 | 688 | 8 | 3720*1640*2040 |
| GNPG880 | 640 | 800 | 704 | 880 | 8 | 4660*2090*2320 |
| GNPG1000 | 728 | 910 | 800 | 1000 | 12 | 4660*2090*2320 |
| GNPG1141 | 830 | 1038 | 913 | 1141 | 12 | 4660*2090*2320 |
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Standard Scope of Supply
1. Brand new Gas engine .
2. Brand new Stamford AC brushless alternator IP23
3. Smartgen Control Panel.
4. Ignition system,including: ECU, Spark plug, High-voltage electricity wire;Ignition switch,Ignition coil;Wires.
5. Electronic speed regulator,including controller and actuator.
6. Solenoid valve
7. Flame arrester.
8. Hand valve
9. Zero pressure valves
200kw natural gas video showing
