Product Details:
Payment & Shipping Terms:
|
Highlight: | compact marine generator,marine generator set |
---|

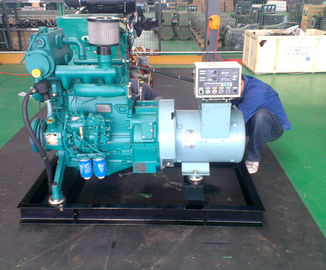

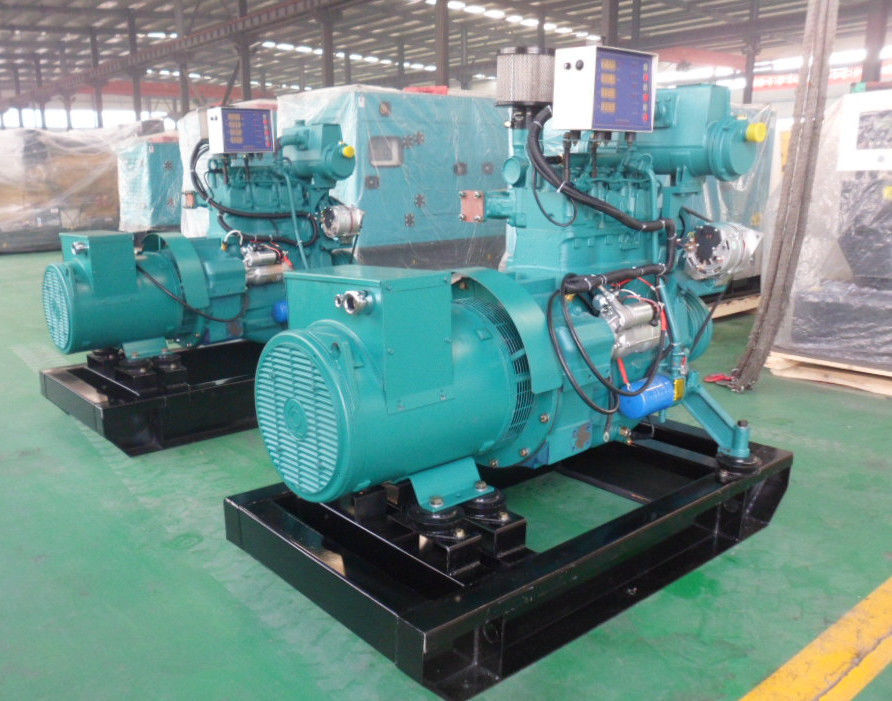

40kw to 400kw Cummins diesel engine marine generator
Performance Feature
Applied for continuous power generation
Engine and alternator will be mounted on a frame steel skid.
Built-in damper for anti-vibration.
Cummins brand diesel engine.
World Top brand AC alternator.
Advanced and reliable control module
Full range protection function and alarm shutdown feature.
Genset Model | Prime Power | Standby Power | Engine Model | Rated Power | Dimension | Weight | ||
KW | KVA | KW | KVA | KW/RPM | L×W×H(mm) | Kgs | ||
GNRC40M | 40 | 50 | 44 | 55 | 4BTA3.9-GM47 | 47/1500 | 1670*850*1270 | 800 |
GNRC50M | 50 | 63 | 55 | 69 | 6BT5.9-GM83 | 83/1500 | 1900*895*1300 | 1000 |
GNRC65M | 65 | 81 | 72 | 89 | 6BT5.9-GM83 | 83/1500 | 1900*900*1300 | 1100 |
GNRC80M | 80 | 100 | 88 | 110 | 6BTA5.9-GM100 | 100/1500 | 1920*895*1300 | 1250 |
GNRC100M | 100 | 125 | 110 | 138 | 6CT8.3-GM115 | 115/1500 | 2110*810*1360 | 1650 |
GNRC125M | 125 | 156 | 138 | 172 | 6CTA8.3-GM155 | 155/1500 | 2110*810*1360 | 1700 |
GNRC140M | 140 | 175 | 154 | 193 | NT855-DM | 180/1500 | 2685*995*1790 | 1750 |
GNRC170M | 170 | 213 | 187 | 234 | NT855-DM | 205/1500 | 2690*995*1790 | 2900 |
GNRC200M | 200 | 250 | 220 | 275 | NTA855-DM | 240/1500 | 2760*995*1790 | 3100 |
GNRC240M | 240 | 300 | 264 | 330 | NTA855-DM | 284/1500 | 2760*995*1790 | 3180 |
GNRC270M | 270 | 338 | 297 | 371 | NTA855-DM | 306/1500 | 2850*995*1790 | 3250 |
GNRC300M | 300 | 375 | 330 | 413 | KTA19-DM | 336/1500 | 3170*1000*1905 | 3750 |
GNRC360M | 360 | 450 | 396 | 495 | KTA19-DM | 403/1500 | 3170*1000*1905 | 3800 |
GNRC400M | 400 | 500 | 440 | 550 | KTA19-DM | 448/1500 | 3170*1000*1905 | 3950 |
Engine Features:
1.GenuineCummins Marinediesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8.Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator:Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5.AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Digital Control panel
Controller Brand: Smartgen
Control Panel:English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
