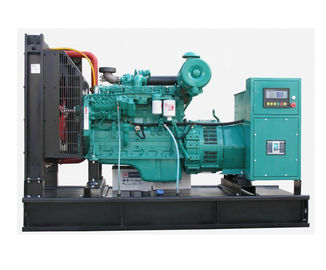

Electric 110kva 115kva cummins diesel generator AC H class insulation Radiator 50°C

Electric 110kva 115kva cummins diesel generator AC H class insulation Radiator 50°C

1. World famous brand Cummins engine and AC alternator: Stamford,
2. Brushless, 4 poles, rotation magnet
3. IP23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated voltage

Engine Features:
1. Cummins engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder

Alternator Features:
1. World famous brand AC alternator: Stamford,
2. Brushless, 4 poles, rotation magnet
3. IP23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Control Panel:
1. Automatic control panel , LCD display
2. Four protection systems
3. Emergency stop

Accessories

1) Standard accessories: Standard Radiator 40°C mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
