Product Details:
Payment & Shipping Terms:
|
| High Light: | cummins generator set,cummins industrial generator |
||
|---|---|---|---|

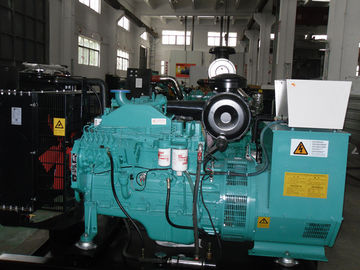

NTA855 - G2A Engine 350kva Cummins diesel generator power station anticorrosive canopy
3. Genuine stamford. Leroy somer, marathonm, engga alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9.Mould case circuit breaker
| MODEL | GNRC350 |
| Prime Power (50HZ) | 280KW/350KVA |
| Standby Power (50HZ) | 300kw/375KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection |
Low oil-pressure, High water temperature, Over-speed, Over-current |
| Engine Model | NTA855-G2A |
| Cylinders | 6 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 140X 152 |
| Compression Ratio | 14.0:1 |
| Speed | 1500rpm |
| Cooling Method | Water – cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 76 |
| Engine Displacement (L) | 14 |
| Inspiration (L) | Turbocharged Intercooler |
| Lube Volume (L) | 38.6 |
| Coolant Volume (L) | 62 |
| Noise (Db) | ≤ 80 |
| Alternator Model | HCI444D |
| Alternator Power | 350KVA |
| Voltage | 220/380 V,230/400V,220V |
| Protection | IP23 |
| Voltage Regulation | ±4% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 3380 |
| Dimensions (L x W x H) mm | 3400*1500*1900 (S) |
| Optional | ATS (auto transfer switch) |
| Auto Battery Charger | |
| Base Fuel Tank (for open type) | |
Control Panel Features:
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and raining
4. Four hours testing before out factory and CCIB Inspection
5. ISO9001 and CE certification
Contact Person: Mr. Albert
Tel: 0086-18926068265
