High Light: | genset diesel generator,cummins generator set |
---|

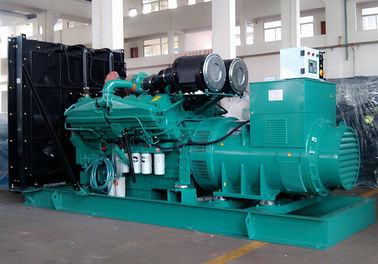

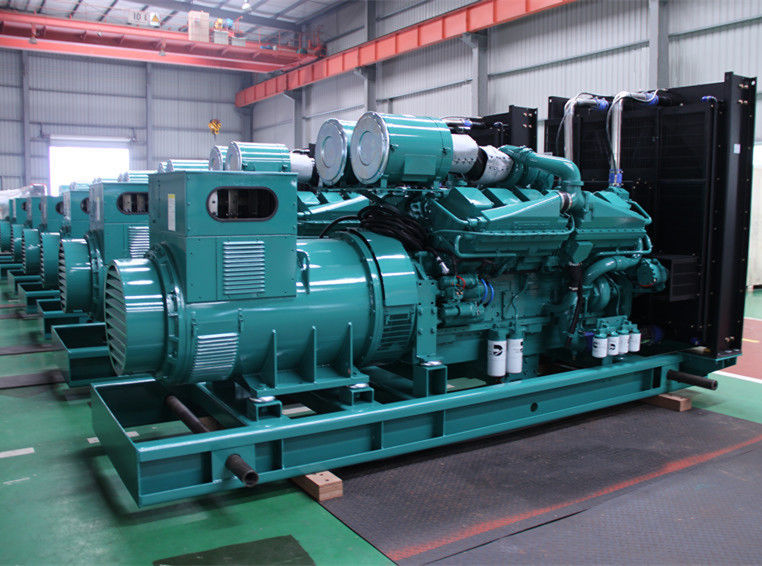

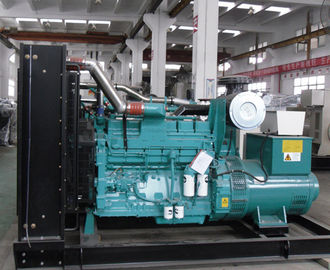

50hz Cummins power diesel engine 1000kw generator
Our company is an approved Cummins OEM partner.So we can provide genuine Cummins genset with very competitive price and comprehensiv Super Silent Diesel Generator With Ats e technical support.
Technical data | |
Genset Model | GNRC1000 |
Prime Power | 1000KW/1250KVA |
Rated Voltage | 400/230V |
Frequency | 50/60Hz |
Power Factor | 0.8(lagging) |
The regulating rate of steady voltage | ≤±0.5% |
The regulating rate of instantaneous voltage | ≤-15%/ +20% |
The time of steady voltage | ≤1.5sec |
The waving rate of voltage | ≤1.0% |
The regulating rate of steady frequency | ≤3% |
The regulating rate of instantaneous frequency | ≤±10% |
The time of steady frequency | 3sec |
Dimension (L×W×H) (mm) | 5300*2100*2500 |
Genset weight (kg) | 10000 |
Diesel Engine | |
Brand | Cummins |
Model | KTA50-G3 |
Number of Cylinders | 16 |
Rotating Speed | 1500/18000RPM |
Cycle | Four stroke |
Type | waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) | 159*159 |
Displacement(L) | 50 |
Lubricating Capacity(L) | 204 |
Speed Governor | Electrical |
Cooling System | Water-cooled |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 205g/kw.h |
Starting Method | DC24V Electrical starting |
Alternator | |
Brand | Stamford |
Model | LVI634G |
Number of Phase | 3 |
Connecting Type | Three Phase and Four Lines |
Number of Bearing | 1 |
Grading Protection | IP23 |
Altitude | ≤1000m |
Exciter Type | Brushless (AVR automatic voltage regulating) |
Insulation Class | H degree |
The components of the genset | |
(1) Cummins Diesel Engine; (2)Stamford Alternator; (3) Control Panel | |
Control Panel | |
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection |
1. Optional Accessories of
1)ATS (Automatic Transfer switch);
Which can start the diesel generator when the main power is off; when the main power comes back, it will shut down generator.
And ATS have the function of AMF (automatic Main power failure)
2)MCCB(Molded case circuit breaker);
It can protect the loading machine and the diesel generator.
3)Batterycharger(float charger);
When the generator hasn’t been used for a long time, the batteries will be no power, in that way, you can’t start the generator. But the battery charger can charge the batteries from main power.
4)Extra daily fuel tank;
It will be requested while the base fuel tank capacity is not enough for daily fuel consumption.
5)Paralleling system;
This system can make several generators work together and automatically distribute the load according to set.
6)Remote Control Panel;
Which can control the generator by computer, if use a RS484 or RS232 digital cable to connect the generator to the computer.
7)Water separate (additional cooling system);
If the ambient temperature is too high, it will be harmful to the diesel generator. Fan and water cooling is not enough for radiate. The water separate system is much better for cooling, and the life of generator will be much longer.
8)Spare Parts of Cummins engine;
All the spare parts of each Cummins engine are supplied at very competitive price.
