Product Details:
Payment & Shipping Terms:
|
| High Light: | cummins generator set,cummins industrial generator |
||
|---|---|---|---|

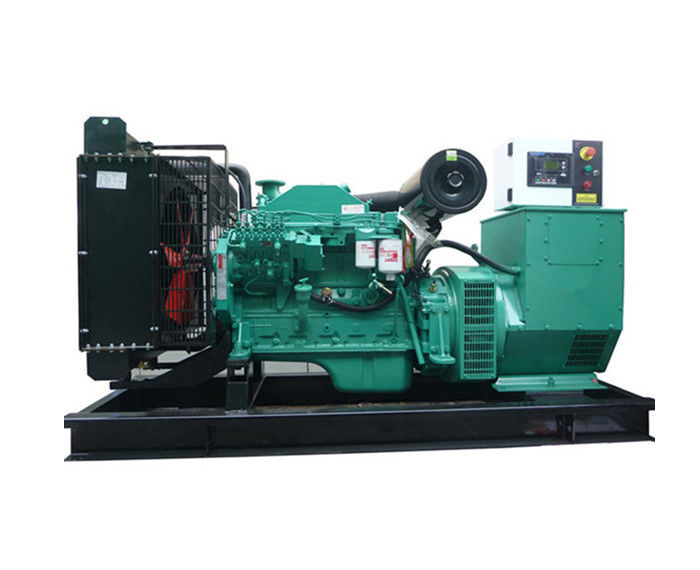

50Hz Soundproof 75kw cummins diesel generator power synchronizing panel ATS
the 75kw cummins generators get through the strict production testing.
12 months or 1000 hours(whichever occurs first) of Warranty Time for all our products. We take the full responsibility only in the fault that created by the quality, the wearing-parts, daily consumables and human error of operating & maintenance are not included in.
|
Criterion |
|
The main parameters of the generator set |
|
Technical data |
|
|
Genset Model |
GNRC100 |
|
Prime Power |
80KW/100KVA |
|
Rated Voltage |
400/230V |
|
Frequency |
50/60Hz |
|
Power Factor |
0.8(lagging) |
|
The regulating rate of steady voltage |
≤±0.5% |
|
The regulating rate of instantaneous voltage |
≤-15%/ +20% |
|
The time of steady voltage |
≤1.5sec |
|
The waving rate of voltage |
≤1.0% |
|
The regulating rate of steady frequency |
≤3% |
|
The regulating rate of instantaneous frequency |
≤±10% |
|
The time of steady frequency |
3sec |
|
Dimension (L×W×H) (mm) |
2250*800*1300 |
|
Genset weight (kg) |
1250 |
|
Diesel Engine |
|
|
Brand |
Cummins |
|
Model |
6BT5.9-G2 |
|
Number of Cylinders |
6 |
|
Rotating Speed |
1500/18000RPM |
|
Cycle |
Four stroke |
|
Type |
waste gas turbine boost,direct spurting type |
|
Bore×Stroke(mm) |
102*120 |
|
Displacement(L) |
5.9 |
|
Lubricating Capacity(L) |
16 |
|
Speed Governor |
Electrical |
|
Cooling System |
Water-cooled |
|
Speed Stability (%) |
≤5% |
|
Fuel Consumption at 100% Load |
210 g/kw.h |
|
Starting Method |
DC24V Electrical starting |
|
Alternator |
|
|
Brand |
Stamford |
|
Model |
UCI274C |
|
Number of Phase |
3 |
|
Connecting Type |
Three Phase and Four Lines |
|
Number of Bearing |
1 |
|
Grading Protection |
IP22 |
|
Altitude |
≤1000m |
|
Exciter Type |
Brushless (AVR automatic voltage regulating) |
|
Insulation Class |
H degree |
|
The components of the genset |
|
|
(1) Cummins Diesel Engine; (2)Stamford Alternator; (3) Control Panel |
|
|
Control Panel |
|
|
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. |
|
For better meet user's demands, the alternator is selectable, we haveMarathon, Engga and other famous brands
Super Soundproof/Silent Box
1. Excellent ventilation
2.Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6.1m<80DBA / 7m<70DBA
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
