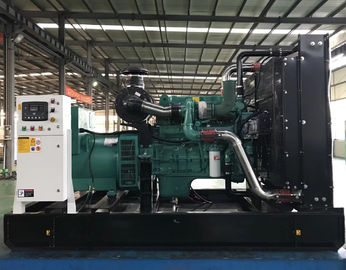

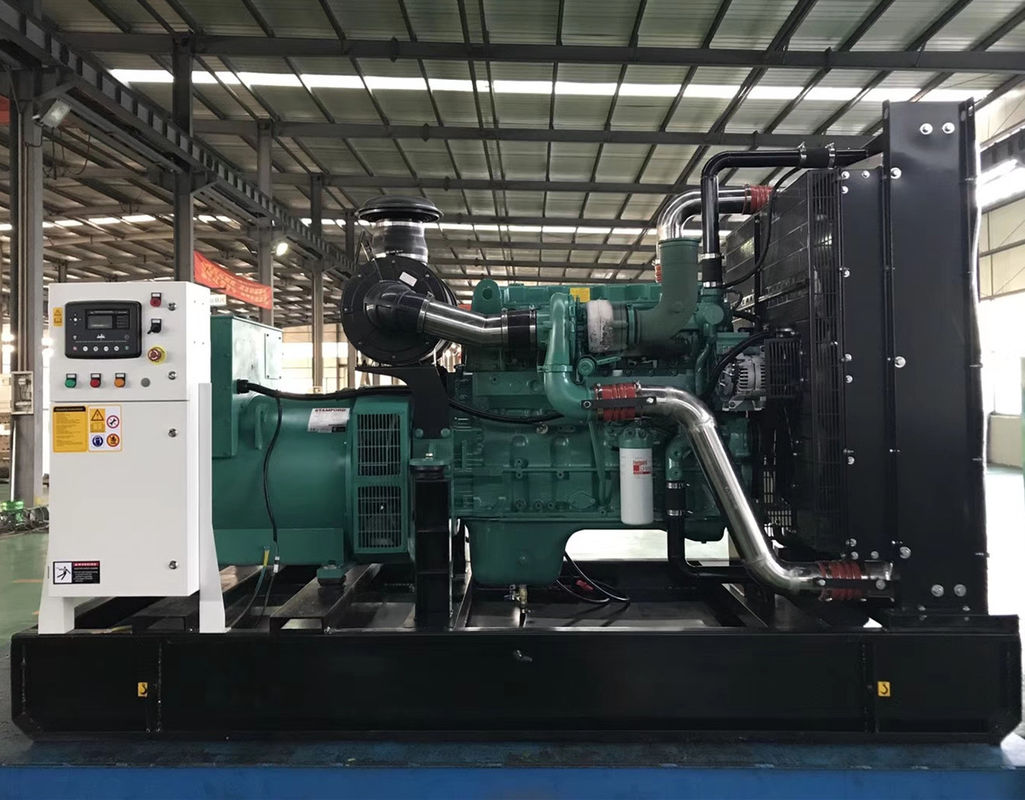

Electric QSTN - G3 Enigne 400kva Cummins diesel generator preheat ComAp AMF 8
Cummins Inc., a global power leader, is a corporation of complementary business units that design, manufacture, distribute and service engines and related technologies, including fuel systems, controls, air handling, filtration, emission solutions and electrical power generation systems. Headquartered in Columbus, Indiana (USA), Cummins serves customers in approximately 190 countries and territories through a network of more than 500 Company-owned and independent distributor locations and approximately 5,200 dealer locations.
2,Alternator
1)Optional Brand: Engga, Stamford, Marathon,leroy somer …
2)The standard generator set matches with Engga brand alternator, and customer also can choose other brands.
3)Standard AVR, AC three phase, 12 reconnect copper leads, single bearing or double bearing, self-exciting system and permanent magnet generator.
4)IP21-23 protection grade, insulation system is H class, and stators are wound to 2/3 pitch.
5)Manufacture standards: GB755, BS5000,VDE0530,NEMAMG1-22,IEC34,and ASB59
3,Digital Control Panel
Controller Brand: Smartgen
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
4.Technical data of 400kva generator with Cummins engine
| MODEL | GNRC400 | |||||
| Standby Power(50HZ ) | 360KW / 450KVA | |||||
| Prime Power(50HZ ) | 320KW / 400KVA | |||||
| ENGINE DATA | ||||||
| Manufacturer/Model: | CCEC Cummins ,4-cycle | |||||
| Air Intake System: | Turbo,Air/Air Cooling | |||||
| Fuel System: | PT type fuel pump,EFC | |||||
| Cylinder Arrangement: | 6 in line | |||||
| Displacement: | 14L | |||||
| Bore and Stroke: | 140×152(mm) | |||||
| Compression Ratio: | 14.0:1 | |||||
| Rated RPM: | 1500rpm | |||||
| Max.Standby Power at Rated RPM: | 377KW / 513HP | |||||
| Governor Type: | Electronic | |||||
| Exhaust System | ||||||
| Exhaust Gas Flow: | 1150L/S | |||||
| Exhaust Temperature: | 451°C | |||||
| Max Back Pressure: | 10kPa | |||||
| Air Intake System | ||||||
| Max Intake Restriction: | 6.22kPa | |||||
| Buring Capacity: | 510L/S | |||||
| Intake Flow: | 8180L/S | |||||
| Fuel System | ||||||
| 100%(Prime Power) Load: | 206.7 g/Kw.h | |||||
| 75%(Prime Power) Load: | 208.7g/Kw.h | |||||
| 75%(Prime Power) Load: | 215.7 g/Kw.h | |||||
| Oil System | ||||||
| Total Oil Capacity: | 38.6L | |||||
| Oil Consumption: | 0.24L/H | |||||
| Engine Oil Tank Capacity: | 36L | |||||
| Oil Pressure at Rated RPM: | 241-345kPa | |||||
| Cooling System | ||||||
| Total Coolant Capacity: | 63.9L | |||||
| Thermostat: | 82-94°C | |||||
| Max Water Temperature: | 96°C | |||||

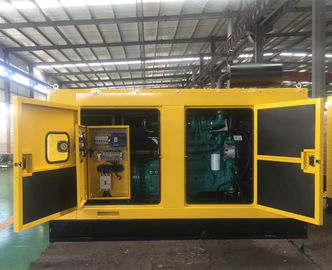

| Open Type | Soundproof Type | |||||
| Overall Size:3250(mm)×1100(mm)×1850(mm) | Overall Size:4235(mm)×1460(mm)×2150(mm) | |||||
| Weight:3200kg | Weight:4250kg | |||||
5.Standard Supply Scope
| Exhaust silencer | Flexi pipes | AVR | Base frame |
| Starting battery | Battery wires | Battery charger | Main circuit breaker |
| Cooling radiator | Wire diagram | Manual books | Auto control panel |
6.Optional Supply Scopy
| Water preheater | PMG | ATS | External daily fuel tank | Silent canopy | ||
| Lube oil preheater | Spare parts | Parallel droop | Anti-condensation heater | ABB breaker | ||
| Automatic fuel pump | Oil drain pump | Mobile trailer | Weatherproof canopy | Synchronization panel | ||
7.Quality Standard:
All Models are tested with 25degree centigrade air inlet temperature,150m(500ft),A.S.L 60% relative humidity.The genset coincident to the standard of GB2820,GB1105,ISO8528,ISO3046,IEC60034,SAEJ1394,BS5000,NEMA MG-1/22,DIN6271,DIN6280,VDE0530 and ISO9001,ISO14001
