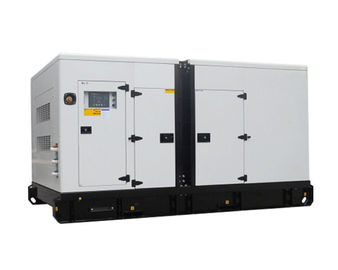

Hospital super silent 135 kva cummins diesel generator 165kva power solution backup
Specifications:
Cummins is one of world top famous engines and widely acceptable all over the world. Cummins Inc., a global power leader, is a corporation of complementary business units that design, manufacture, distribute and service engines and related technologies, including fuel systems, controls, air handling, filtration, emission solutions and electrical power generating systems. Headquartered in Columbus, Indiana, (USA) Cummins serves customers in approximately 190 countries and territories through a network of more than 600 company-owned and independent distributor locations and approximately 5,200 dealer locations.
|
Type |
GNRC125 |
|
Frequency(50/60HZ) |
100KW/125KVA |
|
Standard configuration |
|
|
Sales commitment |
The products that we provide are all new, each unit all get through the strict production testing.
12 months or 1000 hours(whichever occurs first) of Warranty Time for all our products. We take the full responsibility only in the fault that created by the quality, the wearing-parts, daily consumables and human error of operating & maintenance are not included in.
|
Criterion |
|
The main parameters of the generator set |
|
Technical data |
|
|
Genset Model |
GNRC125 |
|
Prime Power |
100KW/125KVA |
|
Rated Voltage |
400/230V |
|
Frequency |
50/60Hz |
|
Power Factor |
0.8(lagging) |
|
The regulating rate of steady voltage |
≤±0.5% |
|
The regulating rate of instantaneous voltage |
≤-15%/ +20% |
|
The time of steady voltage |
≤1.5sec |
|
The waving rate of voltage |
≤1.0% |
|
The regulating rate of steady frequency |
≤3% |
|
The regulating rate of instantaneous frequency |
≤±10% |
|
The time of steady frequency |
3sec |
|
Dimension (L×W×H) (mm) |
2250*800*1300 |
|
Genset weight (kg) |
1250 |
|
Diesel Engine |
|
|
Brand |
Cummins |
|
Model |
6BTAA5.9-G2 |
|
Number of Cylinders |
6 |
|
Rotating Speed |
1500/18000RPM |
|
Cycle |
Four stroke |
|
Type |
waste gas turbine boost,direct spurting type |
|
Bore×Stroke(mm) |
114*135 |
|
Displacement(L) |
5.9 |
|
Lubricating Capacity(L) |
16 |
|
Speed Governor |
Electrical |
|
Cooling System |
Water-cooled |
|
Speed Stability (%) |
≤5% |
|
Fuel Consumption at 100% Load |
210 g/kw.h |
|
Starting Method |
DC24V Electrical starting |
|
Alternator |
|
|
Brand |
Stamford |
|
Model |
UCI274E |
|
Number of Phase |
3 |
|
Connecting Type |
Three Phase and Four Lines |
|
Number of Bearing |
1 |
|
Grading Protection |
IP23 |
|
Altitude |
≤1000m |
|
Exciter Type |
Brushless (AVR automatic voltage regulating) |
|
Insulation Class |
H degree |
|
The components of the genset |
|
|
(1) Cummins Diesel Engine; (2)Stamford Alternator; (3) Control Panel |
|
|
Control Panel |
|
|
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. |
|
control plane
Controller Brand: Deep Sea / Smartgen (Digital and intelligent)
LED Screen and touch Buttons’
Main Functions,
1- Display loading power, voltages, currencies, frequency, speed, temperatures, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Shut down when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
Cummins Engine
Original stamford alternator and certificate :
Cummins Open type Genset :
Silent Type Diesel Genset :
