380Volt 200kw Air starting marine diesel generator 250kva stamford alternator sea water cooling

Large Image : 380Volt 200kw Air starting marine diesel generator 250kva stamford alternator sea water cooling

Product Details:

Place of Origin:	China
Brand Name:	weichai-deutz
Certification:	ISO9001:2008, CE
Model Number:	GNRDM200
Product name:	Marine diesel engine generator set
Engine brand:	Weichai - Deutz
Alternator:	Brushless ,AVR self-regulated
Prime Power:	250KVA
Rated RPM:	1500rpm or 1800rpm
Frequency:	50Hz or 60Hz
Protection class:	IP23

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden Package / Plywood case
Delivery Time:	Within 15 days
Payment Terms:	T/T, L/C, Western Union, MoneyGram, D/A
Supply Ability:	200 sets Per Month

Contact Now

Detailed Product Description

Cooling System:

Sea Water Cooling With Heat Exchanger

Start System:

Air Starting

Highlight:

compact marine generator

marine generator set

380Volt 200kw Air starting marine diesel generator 250kva stamford alternator sea water cooling

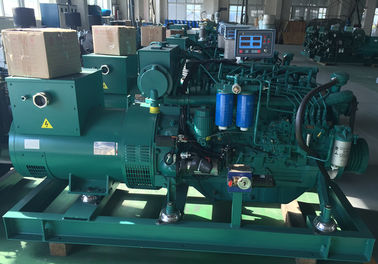

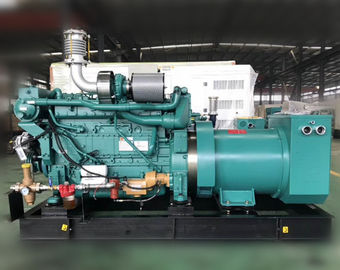

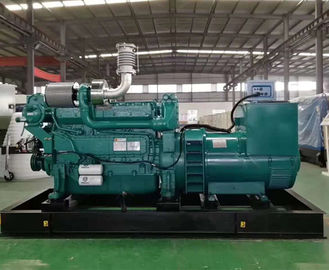

The 250kva marine diesel generator is equipped with marine type engine ,stamford brushless alternator ,air startng system ,heat exchanger cooling system and remote control system .

it is approval with CCS or BV Classification Society Certificate and IMO.

Engine Features:

1. Genuine Marine diesel engine

2. 6-cylinder in-line or veer engine, 4-stroke, direct injection

3. Sea water cooled with heat exchanger

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily

Marine Diesel Generator Set		Weichai Deutz 226B Series Diesel Engine
(400/230V/120C, 50Hz/60Hz, 3 P 4W)		(Electrical Starting, Dual-circulate water-cool)
Genset Model	Rated Power	Engine Model	Max* output	Rated Speed	Governing Method
Genset Model	(KW)	Deutz	(KW)	(rpm)	Governing Method
GNRDM-12	12	D226B-3C	22	1500	Mechanical
GNRDM-16	16	D226B-3C	22	1500	Mechanical
GNRDM-20	20	D226B-3CD	30	1500	Mechanical
GNRDM-24	24	D226B-3CD	33	1500	Mechanical
GNRDM-30	30	TD226B-3CD	44	1500	Mechanical
GNRDM-40	40	TD226B-4CD	66	1500	Mechanical
GNRDM-50	50	TD226B-4CD	66	1500	Mechanical
GNRDM-64	64	TD226B-6CD	99	1500	Mechanical
GNRDM-75	75	TD226B-6CD	99	1500	Mechanical
GNRDM-90	90	TBD226B-6CD	132	1500	Mechanical
GNRDM-100	100	TBD226B-6CD	132	1500	Mechanical
GNRDM-120	120	TBD226B-6CD5	145	1500	Electrical

Protective function of operation

1) Low oil pressure alarm and shutdown

2) High temperature alarm and shutdown

3) Over speed alarm and shutdown

Standard Configure of marine diesel generator:

1) High Performance Marine Engine	6) MCCB, Muffler, Air filter
2) Brushless ,AVR self-regulated Alternator (IP23)	7) 2*12V Heavy duty start batteries
3) Steel base frame with shock absorber	8) Battery cable & Atteched accessories
4) Standard control box	9) Manual books and parts books
5) Sea water cooling heat exchanger	10) Optional digital monitor

380Volt 200kw Air starting marine diesel generator 250kva stamford alternator sea water cooling 0

380Volt 200kw Air starting marine diesel generator 250kva stamford alternator sea water cooling 2
