Product Name: | Diesel Engine Welding Generator | Engine Type: | 4 Stroke ,direct Injection ,Diesel Engine |
---|---|---|---|
Welding Current: | 500 Amps | Cooling System: | Air Cooled |
Excitation Type: | AVR Brushless Self Exciting | Engine RPM: | 1500rpm To 1800rpm |
Frequency: | 50Hz Or 60Hz | Protection Class: | IP23 |
Start System: | Electric Start | ||
High Light: | genset welder generators,portable welder generator |

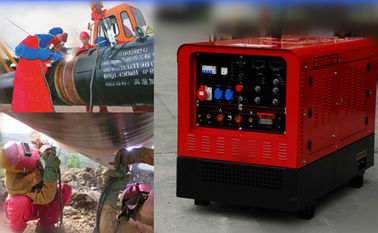

Deutz F3L912 Air Cooled Engine Diesel Welder Generator 500amp Duty Cycle 60% IGBT Inverter
The Deutz Air cooled engine diesel welder generator adopt , PWM control technology, and negative feedback control technology , advanced inverter soft switch technology , enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.
The diesel welding genset is equipped with diesel engine driven welding machines with MMA/TIG/FCAW function, and Strong auxiliary power:30 KW output for three-phase, 7KW output for single-phase .
Advange:
1. Electric Starter ensures easy starting
2. Separate welding range with fine adjustment in each range
3. Great Welding Performance
4. Auxiliary power while welding
5. 500 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding
6. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.
Welding Processes | MMA | TIG | FCAW | ||||||
Open Circuit Voltage (V) | 75 | 75 | 75 | ||||||
Current Range (A) | 30-500 | 30-500 | 30-500 | ||||||
Welding Current (A) | 387 | 430 | 500 | 387 | 430 | 500 | 387 | 430 | 500 |
Welding Voltage (V) | 35.5 | 37.2 | 40 | 25.5 | 27.2 | 30 | 33.3 | 35.5 | 39 |
Duty Cycle | 100% | 80% | 60% | 100% | 80% | 60% | 100% | 80% | 60% |
External Characteristic Curve | Drop Characteristic | Drop Characteristic | Flat Characteristic | ||||||
Generator output | |||||||||
Power | 20Kw | ||||||||
Excitation Type | AVR Brushless Excitation | ||||||||
Frequency | 50Hz or 60Hz | ||||||||
Phase | Three Phase | Single Phase | |||||||
Output Voltage/Power | AC 400V/20Kw | AC 230V/6Kw | |||||||
Engine | |||||||||
Engine type | 4 stroke , 3 cylinder , direct injection , heavy duty diesel engine | ||||||||
Fuel | Diesel | ||||||||
Rated Power | 26Kw | ||||||||
Rated Speed | 1500 RPM | ||||||||
Low Temperature | Pre-heated Start | ||||||||
Warning Type | Water Temperature /Oil Pressure/Battery Voltage | ||||||||
Fuel Capacity | 60L | ||||||||
Cooling Method | air cooled | ||||||||
Fuel Consumption | 5.6L/hr | ||||||||
Complete appliance | |||||||||
Weight | 710kg | ||||||||
Dimension(mm) | 1500×800×1100 | ||||||||
Protection Class | IP23 |
