50Hz/60Hz Cummins Diesel Generator 275kva 220kw Power Silent Wet Type Cylinder

I'm Online Chat Now

50Hz/60Hz Cummins Diesel Generator 275kva 220kw Power Silent Wet Type Cylinder

50Hz/60Hz Cummins Diesel Generator 275kva 220kw Power Silent Wet Type Cylinder
50Hz/60Hz Cummins Diesel Generator 275kva 220kw Power Silent Wet Type Cylinder

Large Image :  50Hz/60Hz Cummins Diesel Generator 275kva 220kw Power Silent Wet Type Cylinder

Product Details:
Place of Origin: China
Brand Name: Cummins
Certification: ISO9001:2008, CE
Model Number: GNRC275
Engine: Cummins
Alternator: Stamford, Marathon
Control Panel: Deepsea6020
Rated Power: 275kva
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz
Rated Voltage: 220V/380V, 240V/415V
Product Name: 275kva cummins generator
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Detailed Product Description
High Light:

cummins generator set

,

cummins industrial generator

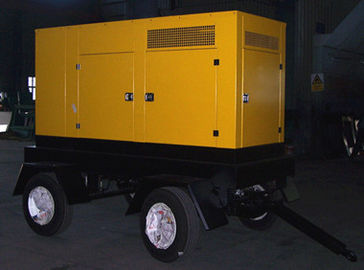

Mobile trailer 275kva Cummins diesel generator 220kw power silent wet type cylinder



1. Cummins engine Machinery governing

2. Radiator 50°C max, fans are driven by belt, with safety guard

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Brushless, 4 poles, rotation magnet alternator

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption





Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh) (L ) (mm)
GNRC30 20 25 24 30 4B3.9-G ≤229 4 3.9 102*120
GNRC35 24 30 28 35 4BT3.9-G ≤214 4 3.9 102*120
GNRC56 40 50 45 56 4BTA3.9-G ≤215 4 3.92 102*120
GNRC63 45 56 50 63 4BTA3.9-G ≤215 4 3.92 102*120
GNRC70 50 63 56 70 6BT5.9G1 ≤215 6 5.88 102*120
GNRC106 78 98 85 106 6BT5.9G ≤215 6 5.88 102*120
GNRC125 90 113 100 125 6BT5.9G2 ≤215 6 5.88 102*120
GNRC150 104 130 120 150 6BT5.9G2 ≤215 6 5.88 102*120
GNRC165 120 150 132 165 6CTA8.3-G2 ≤210 6 8.3 114*135
GNRC200 140 175 160 200 6CTA8.3-G2 ≤210 6 8.3 114*135
GNRC225 160 200 180 225 6CTAA8.3-G2 ≤210 6 8.3 114*135
GNRC275 200 250 220 275 6LTAA8.9-G2 ≤210 6 8.3 114*135
GNRC313 220 275 250 313 NTA855-G1A ≤206 6 14 140*152
GNRC350 250 313 275 350 NTA855-G2 ≤207 6 14 140*152
GNRC400 280 350 310 400 NTA855-G4 ≤208 6 14 140*152
GNRC413 300 375 330 413 NTAA855-G7 ≤206 6 14 140*152
GNRC450 320 400 360 450 NTAA855-G7A ≤206 6 14 140*152
GNRC500 360 450 400 500 KTA19-G3 ≤203 6 18.9 159*159
GNRC550 400 500 440 550 KTA19-G4 ≤203 6 18.9 159*159
GNRC605 440 550 484 605 KTAA19-G6 ≤204 6 18.9 159*159
GNRC625 450 563 500 625 KTAA19-G7 ≤204 6 18.9 159*159
GNRC700 500 625 560 700 KTA38-G ≤206 12 37.8 159*159
GNRC712 520 650 570 712 QSK19-G3 ≤206 6 19 159*159
GNRC800 580 720 640 800 KTA38-GA ≤209 12 37.8 159*159
GNRC825 600 750 660 825 KTA38-G2 ≤210 12 37.8 159*159
GNRC888 640 800 710 888 KTA38-G2B ≤210 12 37.8 159*159
GNRC975 720 900 780 975 KTA38-G2A ≤210 12 37.8 159*159
GNRC1075 800 1000 860 1075 KTA38-G5 ≤202 12 37.8 159*159
GNRC1375 1000 1250 1100 1375 KTA50-G3 ≤215 16 50.3 159*159
GNRC1375 1100 1375 1310 1650 KTA50-G8 ≤215 16 50.3 159*159
GNRC1650 1200 1500 1340 1675 KTA50-GS8 ≤215 16 50.3 159*159
GNRC1675 1350 1688 1500 1875 QSK60-G3 ≤215 16 60 159*159
GNRC1875 1500 1875 1650 2063 QSK60-G3 ≤215 16 60 159*190
GNRC2063 1600 2000 1800 2250 QSK60-G4 ≤215 16 60 159*190





Genset Features:

1. Genuine Cummins industrial diesel engine

2. Radiator 50°C max, fans are driven by belt, with safety guard

3. Genuine stamford. Leroy somer, marathonm, engga alternator

4. Choice of manual/auto and AMF control panels and protection systems

5. Digital auto-start panel

6. Anti Vibration Suspension Absorber

7. Dry type air filter, fuel filter, oil filter

8. 10-hour operation base tank

9.Mould case circuit breaker

10. 24V DC start motor and storage battery

11. 24V charge alternator

12. 24V batteries, rack and cable

13. Rippl;e flex echaust pipe, exhaust siphon, flange, and muffler

14. Comply with ISO and CE standards

15. All generator sets are gone through rigorous testing before beging released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)



Engine Features:

1. Genuine Cummins industrial diesel engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily



Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof



Digital Control panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown



Super Soundproof/Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 12 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA



Accessories

1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
