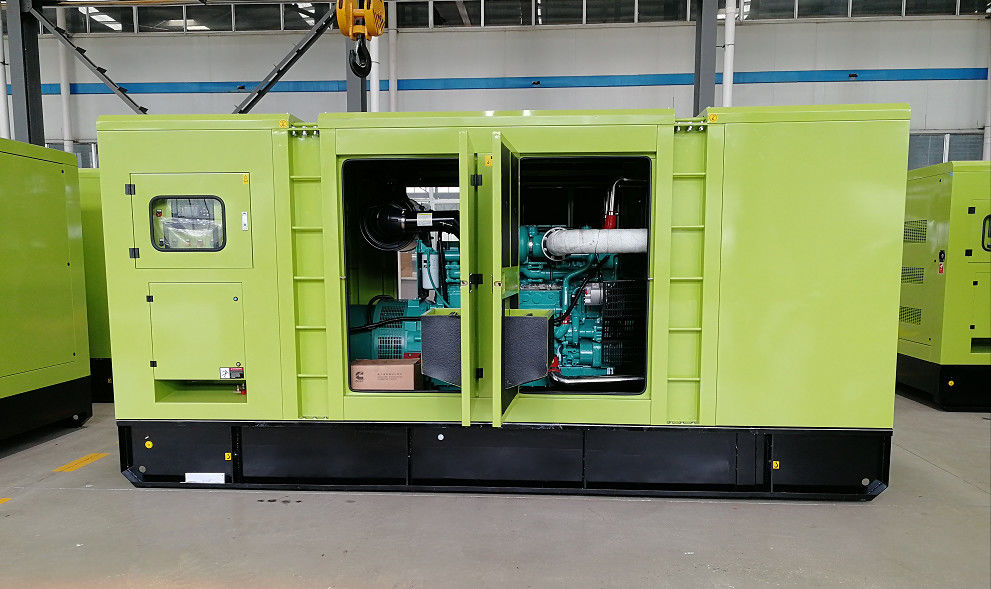

Cummins GNRC125 500kw 600kva Silent Diesel Generator

I'm Online Chat Now

Cummins GNRC125 500kw 600kva Silent Diesel Generator

Cummins GNRC125 500kw 600kva Silent Diesel Generator
Cummins GNRC125 500kw 600kva Silent Diesel Generator

Large Image :  Cummins GNRC125 500kw 600kva Silent Diesel Generator

Product Details:
Place of Origin: China
Brand Name: Cummins
Certification: ISO9001:2008, CE
Model Number: GNRC125
Product name: 600kva cummins diesel generator
Engine: Cummins
Alternator: Stamford, Leroy somer ,Marathon
Rated Power: 600kva
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: within 15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 200 units / month
Detailed Product Description
Start System: Electric Auto Start Cooling System: Water Cooling
High Light:

500kw Silent Diesel Generator

,

600kva Silent Diesel Generator

,

Cummins GNRC125

600kva Cummins Engine Genset Diesel Generator 500kw Soundproof ac electric power ATS



Engine Features:



2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Turbocharged, water cooled or turbocharged with air intercooler

4. Electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption



Alternator Features:

1. World famous brand AC alternator Stamford

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528



Control system:

1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
1) Unit voltage, tri-phase load current and frequency display
2) Water temperature, oil pressure display
3) Fuel level, fuel temperature display
4) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C
5 Filter system: oil, fuel and air filter
6 Accessories: exhaust elbow, bellow, muffler







Cummins GNRC125 500kw 600kva Silent Diesel Generator 0Cummins GNRC125 500kw 600kva Silent Diesel Generator 1
