Water Cooled Pcc 3201 Cummins Diesel Generator 75Kw 125kw 250Kw

I'm Online Chat Now

Water Cooled Pcc 3201 Cummins Diesel Generator 75Kw 125kw 250Kw

Water Cooled Pcc 3201 Cummins Diesel Generator 75Kw 125kw 250Kw
Water Cooled Pcc 3201 Cummins Diesel Generator 75Kw 125kw 250Kw

Large Image :  Water Cooled Pcc 3201 Cummins Diesel Generator 75Kw 125kw 250Kw

Product Details:
Place of Origin: China
Brand Name: Cummins
Certification: ISO9001:2008, CE ,CCC
Model Number: GNRC175
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package / Plywood case
Delivery Time: Within 15 days
Payment Terms: T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability: 200/sets per Month
Detailed Product Description
Engine: Cummins Diesel Engine Product Name: 125kw Cummins Diesel Generator
Rating Power: 300kva Alternator: Stamford,LeroySomer, Marathon
Start System: Electric Motor Start Cooling System: Water Cooled
Frequency: 50Hz Or 60Hz Voltage: 120V ,220V/380V, 240V/415V
High Light:

Pcc 3201 Cummins Diesel Generator

,

Water Cooled Cummins Diesel Generator

,

125kw Power Diesel Generator

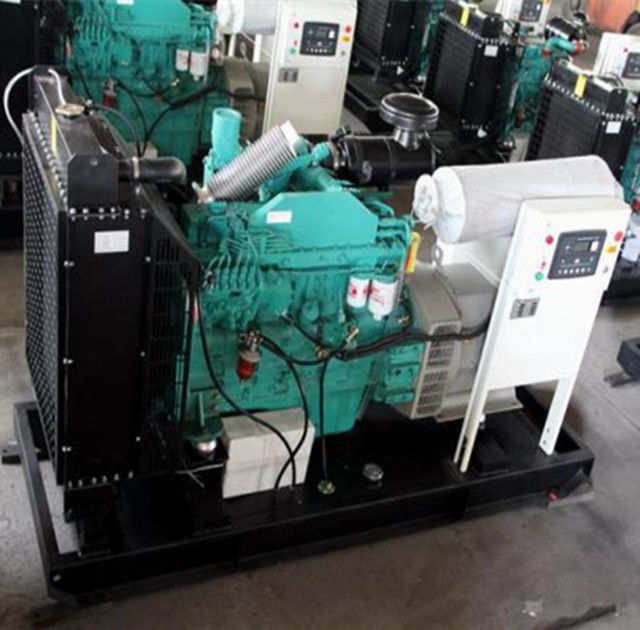

6ltaa8.9 engine 75 kw 125kw 250 kw power control panel pcc 3201 Cummins diesel open generator



1. Original Cummins industrial diesel engine

2. Radiator 50°C max, fans are driven by belt, with safety guard

3. Genuine stamford. Leroy somer, marathonm, engga alternator

4. Choice of manual/auto and AMF control panels and protection systems

5. Digital auto-start panel

6. Anti Vibration Suspension Absorber

7. Dry type air filter, fuel filter, oil filter

8. 12 hour operation base tank





Technical Parameter:



Model Number GNRC150
Prime Power 128KW/160KVA
Standby Power 140KW/175KVA
Original Engine Model 6CTA8.3-G2
Cylinder Type In-line 6 cylinders
Displacement 8.3L
Induction System Exhaust Turbocharging,Water-Air Intercooler
Fuel System PB fuel pump
Bore x Stroke 114*135
Compression Ratio 17.3:1
Rated Speed 1500rpm
Maximum Power of Original Engine 180KW/244HP
Speed Governing System high degree of accuracy electronic speed governing system
Exhaust Smoke Level 34.7m3/min
Exhaust Gas Temperature 570°C
The maximum allowable exhaust back pressure 10kPa
The maximum allowable inlet pressure 6kPa
Volume of fuel gas 12.4m3/min
Air flow 238m3/min
100% Loading Fuel Consumption 40L/H
Lub. Capacity 27.6L
Oil Consumption ≤4g/kwh
Oil Pan Capacity 24L
Oil Pressure under rated speed 276-414kPa
Coolant Capacity(engine and radiator) 24L
Alternator(Stamford) UCI274F
Alternator(Marathon) MP-120-4
Alternator(Engga) EG225L-120N
Output 3
Excitation Brushless self



Control system:



1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch



Standard Accessory

Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.
