Product Details:
Payment & Shipping Terms:
|
Engine: | Cummins Diesel Engine | Product Name: | 1000kva Cummins Diesel Generator |
---|---|---|---|
Rating Power: | 1000kva | Alternator: | Stamford,LeroySomer, Marathon |
Start System: | Electric Motor Start | Cooling System: | Water Cooled |
Frequency: | 50Hz Or 60Hz | Voltage: | 120V ,220V/380V, 240V/415V |
High Light: | Power Plant Station Cummins Diesel Generator,300kva Cummins Diesel Generator,200kw Diesel Driven Generator |

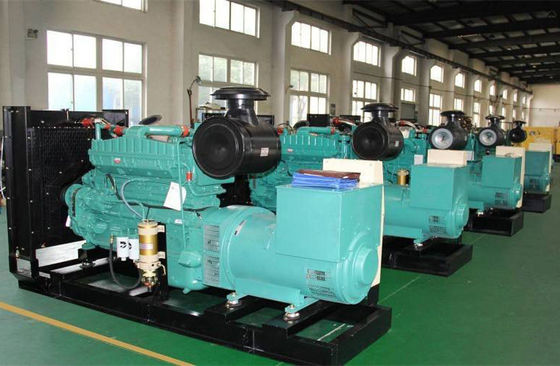

Hospital 250 kw 200kw power plant station big size super silent cummins diesel generator 300kva
Technical Parameter:
1. Genuine Cummins industrial diesel engine
2. Radiator 50°C max, fans are driven by belt, with safety guard
3. Genuine stamford. Leroy somer, marathonm, engga alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9. Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Rippl;e flex echaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards
15. All generator sets are gone through rigorous testing before beging released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Control system:
1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch

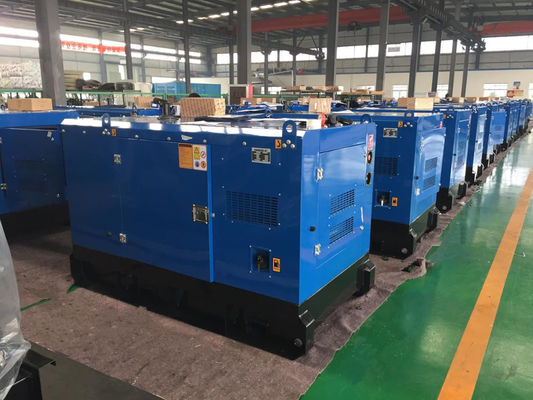

Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. 1m<80 dB / 7m<70dB
