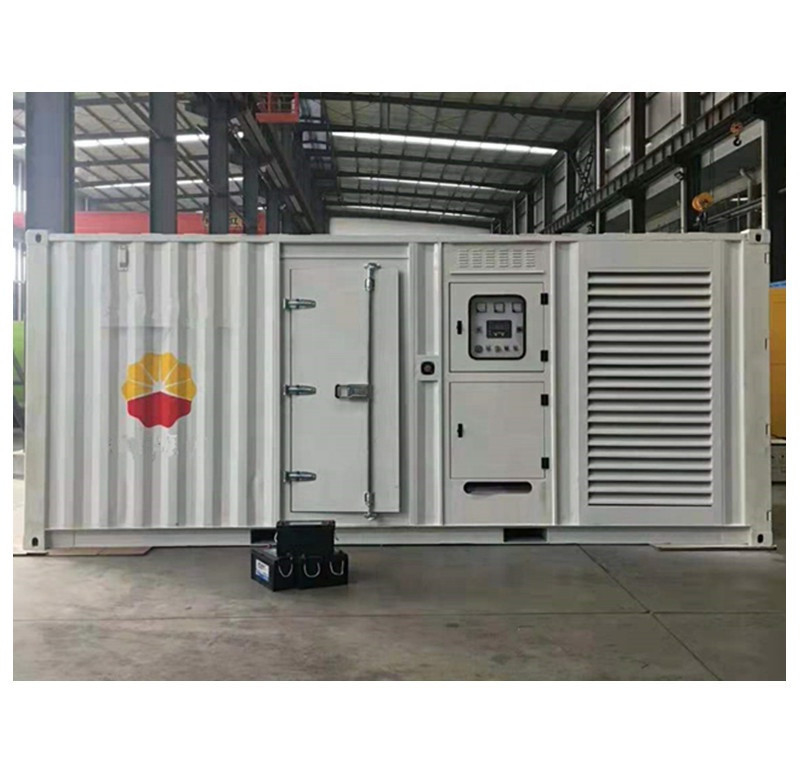

500kw Generator Refrigerator Container Power Pack For Reefer Container Railway

500kw generator refrigerator container power pack for reefer container railway

The refrigerator container power pack is manufactured and rated according to continuous power output as outlined in ISO-8528, overload power in accordance with ISO-3046.

The power pack is specifically designed used as power source for reefer container plugs.

Power pack  compliance with all main standards, such as :GB/T2820,ISO8528,IEC34,VDE0875-N

Prime output power: 500kw

Rated voltage: 460V

Phase/connecting method: 3 phase 4wire/Y type connection

Rated frequency: 60hz

Rated speed: 1800rpm

Excited type: Brushless, self excited or PMG

Insulation: Class H

Protection: IP23

Voltage regulation: AVR automatic control

power pack Features:

1. water-cooled, heavy-duty, industrial type Cummins engine

2. World famous brand stamford AC alternator Leroysomer

3. Brushless, 4 poles, rotation magnet

4. IP23 enclose is standard for all industrial alternators

5. H class insulation system

6. AVR self-regulated, voltage regulation rate: ≤±1%

7. 60Hz , 460V ,3phase

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

Power pack  Digital Control panel :

Controller Brand: Smartgen,

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown

Super Soundproof/Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 12 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA
