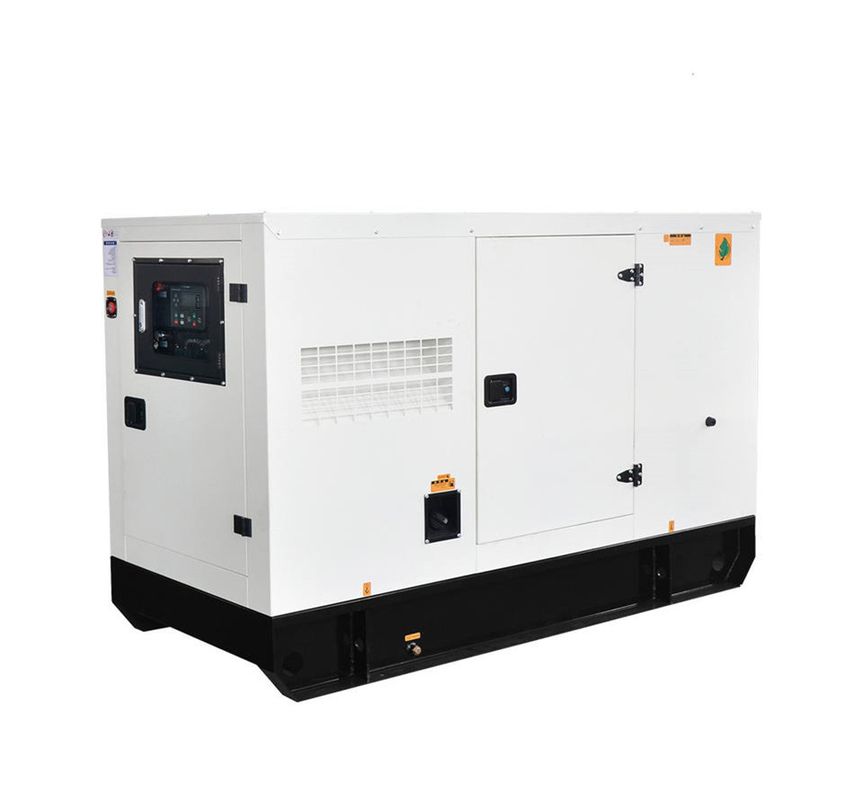

Generac Portable 30kva 24kw Diesel Generator With Isuzu JE493DBE-02 Engine

Generac Portable 30kva 24kw Diesel Generator With Isuzu JE493DBE-02 Engine
Generac Portable 30kva 24kw Diesel Generator With Isuzu JE493DBE-02 Engine

Large Image :  Generac Portable 30kva 24kw Diesel Generator With Isuzu JE493DBE-02 Engine

Product Details:
Place of Origin: China
Brand Name: ISUZU
Certification: ISO , CE
Model Number: GNRI30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden pakcage
Delivery Time: within 15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 200 units / month
Contact Now
Detailed Product Description
Alternator: Brushless Control Panel: Smartgen 6120
Rated Power: 24kw Rated RPM: 1500rpm
Frequency: 50Hz Rated Voltage: 230V/380V,
High Light:

30kva 24kw Diesel Generator

,

24kw Diesel Generator

,

Generac Portable Genset Diesel Generator

generac portable 30kva 24kw diesel generator with isuzu JE493DBE-02 engine





Application of ISUZU Diesel Generator



it is widely used in mines, railways, field construction sites, road traffic maintenance, factories, enterprises, hospitals and other departments as backup power sources. , Complete supporting facilities, convenient operation and maintenance. Or temporary power supply.



Engine spec
Engine Model
JE493DBE-02
Number of Cylinders
4cylinders in line
Cycle
4 stroke
Air intake system
Turbocharged
Compression ratio
18.2:1
Prime Power/Speed
30kva  / 1500rpm
Speed Governor
Electronic
Cooling System
Forced water cooling cycle
Steady speed droop
≤1%
Total lubrication system capacity
5.6L
Fuel Consumption at 100% Load
230g/kw.h
Starter Motor
DC12V
Alternator
DC12V
Alternator spec
Alternator Model
Brushless 100% copper
Prime power
30kva
Frequency/speed
50HZ/1500RPM
Exciter type
Brushless
Power factor
0.8
Voltage adjust range
≥5%
Voltage regulation NL-FL
≤±0.5%
Insulation Grade
H
Protection Grade
IP23
Phase
Three phases
Generac Portable 30kva 24kw Diesel Generator With Isuzu JE493DBE-02 Engine 0
Control panel Model:DeepSea/SmartGen/ComAp
The control module gives digital readouts of:
Generator voltage;Output frequency;Engine speed;Battery voltage;Engine hours run

The control module has indicators for failure information:
Overspeed/underspeed;Emergency stopLow oil pressure;High water temperature;Failure to start;Battery charger failure

Automatic shutdown occurs under:
Low engine oil pressure;High engine water temperature;Overspeed/underspeed;Failure to start after three attempts





Generac Portable 30kva 24kw Diesel Generator With Isuzu JE493DBE-02 Engine 1
