Product Details:
Payment & Shipping Terms:
|
| Rated Voltage: | 230V/380V | Frequency: | 50Hz |
|---|---|---|---|
| Rated RPM: | 3000rpm | Rated Power: | 5kw |
| Engine: | Air Cooled , 4 Stroke | Alternator: | 100% Cooper , Brushless |
| High Light: | 5kw portable generator sets,Small Size Genset Diesel Generator,portable Genset Diesel Generator |
||

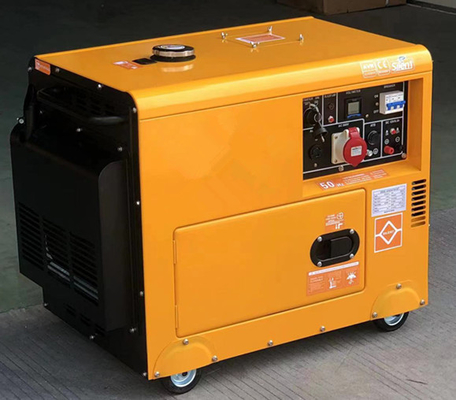

Small Size Portable 5kw 10kva Power Genset 6 KW 7.5 KVA Silentchipper Diesel Generator
The 5kw diesel generator is equipped with strong , efficient air cooled Engine and 100% copper alternator , stable performance ,low noise . It is widely used in Bank, Restaurant ,Shop ,Hotel, House, Telecom base station ,etc
| Diesel generator set model | GDA5 |
| Frequency (HZ) | 50 |
| Max.output | 5.5kw |
| Rated output | 5kw |
| Rated AC Voltage(V) | 110V/220 /380V |
| Power Factor | 0.8 / 1 |
| Phase | Single Phase / 3 Phase |
| Alternator Type | Self-excited, AVR, 100% copper coil , brushless |
| Starting System | electric start with battery |
| Noise Level (dB(A/7m) | 75 |
| Fuel Tank Capacity (L) | 25 |
| ENGINE | |
| Engine Type | single-cylinder, 4-stroke, air-cooled ,Direct Injection diesel engine |
| Bore×Stroke | 75*80 |
| Fuel Consumption rate g/kw/h | ≤290 |
| Fuel | 0# or -10# light diesel oil |
| Lubrication Oil Volume (L) | 1.65 |
| AC Output Socket | 2 |
| AC Circuit Breaker | YES |
| Oil warning Light | YES |
| Oil Alert | YES |
| OPTIONAL FEATURES | Digital meter / ATS / Remote control |
| Dimention(LxWxH)(cm) | 980*650*800 |
| Net Weight(kgs) | 195 |
