35kva Genset Diesel Generator 500Amp 300Amp With Flux Core Welding Box

I'm Online Chat Now

35kva Genset Diesel Generator 500Amp 300Amp With Flux Core Welding Box

35kva Genset Diesel Generator 500Amp 300Amp With Flux Core Welding Box
35kva Genset Diesel Generator 500Amp 300Amp With Flux Core Welding Box

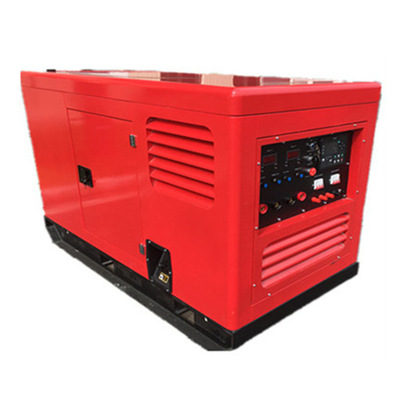

Large Image :  35kva Genset Diesel Generator 500Amp 300Amp With Flux Core Welding Box

Product Details:
Place of Origin: China
Brand Name: GENOR POWER
Certification: ISO9001:2008, CE
Model Number: GNDML500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Package / Plywood case
Delivery Time: Within 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 200 sets Per Month
Detailed Product Description
Rated Voltage: 220V/380V, 440V Welding Type: Stick , MIG .TIG
Product Name: Diesel Motor Welding Generator Engine RPM: 1500rpm
Frequency: 50Hz Welding Current: 500amp
High Light:

35kva Genset Diesel Generator

,

500Amp Genset Diesel Generator

,

300Amp 35kva Diesel Generator

35kva Genset Diesel Generator 500Amp 300Amp With Flux Core Welding Box



MIG TIG Stick welding machine 35kva Genset Diesel Generator Welder 500Amp 300Amp with flux core welding box



500amp Diesel Welding Genset Features:



1. We Can offer both single position welding machine with MMA/TIG/FCAW function and dual positions welding machine whith MMA plus FCAW function, convenient for customer's choice

2. FCAW meets "filling & covering"welding process,fast,effective,and timesaving,can match Lincoln/Miller wire feeder.Strong auxiliary power: Max 30KW output .

3. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.

4. Owns current/voltage parameter preset function,the matched wire feeder can show the preset/real current, also adjust welding current,easy to operate.



Model GPW 500 diesel welding generator
Welding output
Welding Processes MMA TIG FCAW
Open Circuit Voltage (V) 75 75 75
Current Range (A) 30-500 30-500 30-500
Welding Current (A) 310 350 500 310 350 500 310 350 500
Welding Voltage (V) 32.4 34 36 22.4 24 26 29.5 31.5 33
Duty Cycle 100% 80% 60% 100% 80% 60% 100% 80% 60%
External Characteristic Curve Drop Characteristic Drop Characteristic Flat Characteristic
Generator output
Power 16Kw
Excitation Type AVR Brushless Excitation
Frequency 50Hz
Phase Three Phase Single Phase
Output Voltage/Power AC 400V/16Kw AC 230V/6.9Kw
Engine
type 4 stroke ,direct injection , water cooled diesel engine
Fuel Diesel
Rated Power 30Kw
Rated Speed 1500 RPM
Low Temperature Pre-heated Start
Warning Type Water Temperature /Oil Pressure/Battery Voltage
Fuel Capacity 50L
Cooling Method Water-cooled
Fuel Consumption 5.0L/hr
Complete appliance





Engine Features:



1. World most famous brand diesel engine: Perkins ,Cummins , Kubota



2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection



3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler



4. Machinery or electronic governing



5. Fuel injection pump



6. Electric motor starting system



7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner



8. Low discharge, and low fuel consumption



9. Installed conveniently and maintain easily





Alternator Features:



1. World famous brand brushless AC alternator



2. Brushless, 4 poles, rotation magnet



3. IP21-23(NEMA1) enclose is standard for all industrial alternators



4. H class insulation system



5. AVR self-regulated, voltage regulation rate:≤±1%



6. Rated Voltage: 127V/220V, 220V/380V, 230V/400V





Control system:



1. Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.



2. Operation display:



a) Unit voltage, tri-phase load current and frequency display



b) Water temperature, oil pressure display



c) Fuel level, fuel temperature display



d) Audible and visual alarm lamps and buzzers
