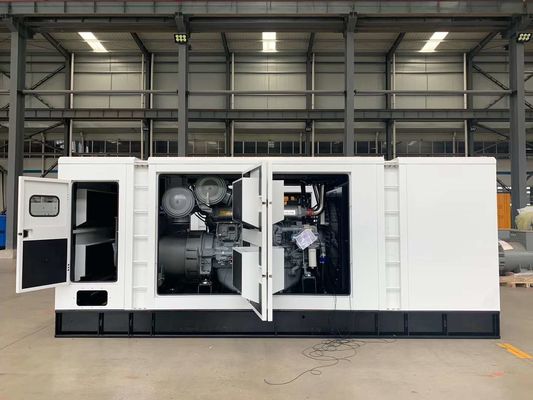

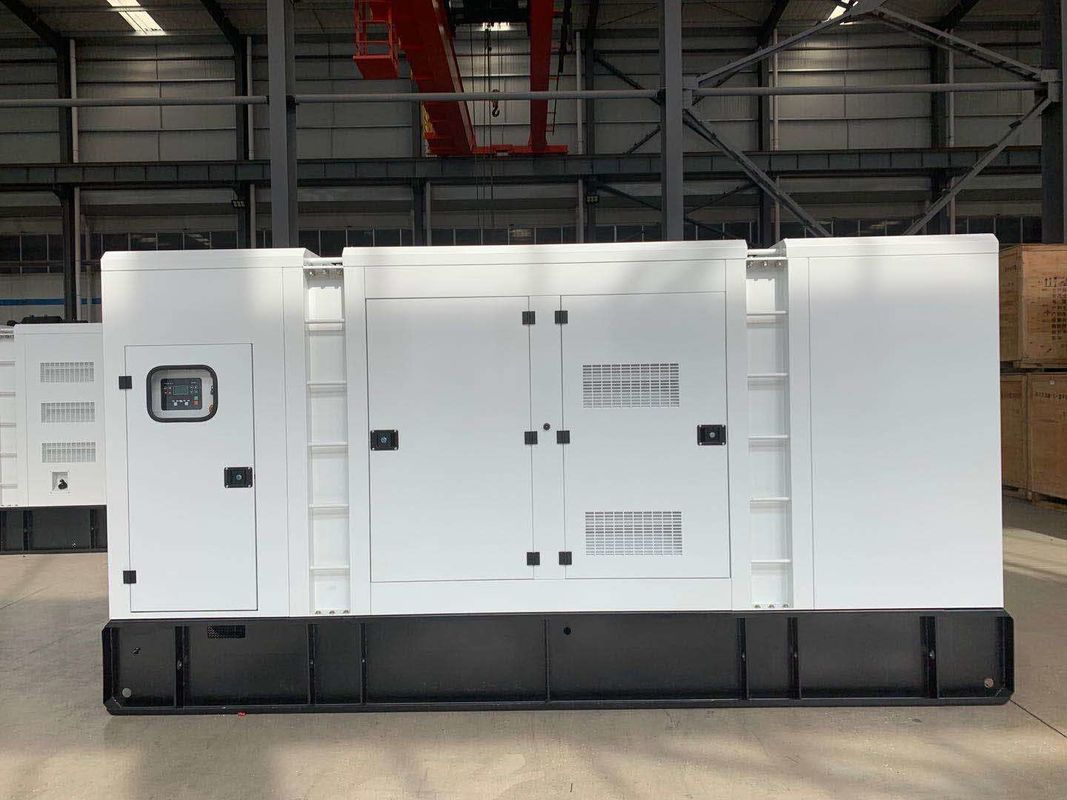

50kw 65kva 250kva 300kva SDEC Diesel Generator With SC9D340D2 Engine

GROUPE ELECTROGENE plant 50kw 65kva 300kva 250kva SDEC diesel generator with SC9D340D2 engine

Engine Features:

1. china shangchai SDEC engine 20kva to 1000kva

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon

2. Brushless, 4 poles, rotation magnet

3. IP213 enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Control Panel:

1.Brand: Smartgen, Deepsea,ComAp

2.Start or Stop Generator set manually/ Automatically.

3.Generator over/under frequency protection

4.Open controller output can be defined as Pre-heat/Idle output .

5.Generator over/under/unbalance voltage Protection .

6.High Coolant temperature protection

7.Over speed protection

8.Low Oil pressure protection

9.Over current protection

10.Over load protection

11.Note: indicate this function depend on the set points of the controller

Application of SDEC Diesel Generator

it is widely used in mines, railways, field construction sites, road traffic maintenance, factories, enterprises, hospitals and other departments as backup power sources. , Complete supporting facilities, convenient operation and maintenance. Or temporary power supply.

Control panel Model:DeepSea/SmartGen/ComAp

The control module gives digital readouts of:
Generator voltage;Output frequency;Engine speed;Battery voltage;Engine hours run

The control module has indicators for failure information:
Overspeed/underspeed;Emergency stopLow oil pressure;High water temperature;Failure to start;Battery charger failure

Automatic shutdown occurs under:
Low engine oil pressure;High engine water temperature;Overspeed/underspeed;Failure to start after three attempts
